Siren Signal Control Circuit Shorted to Ground

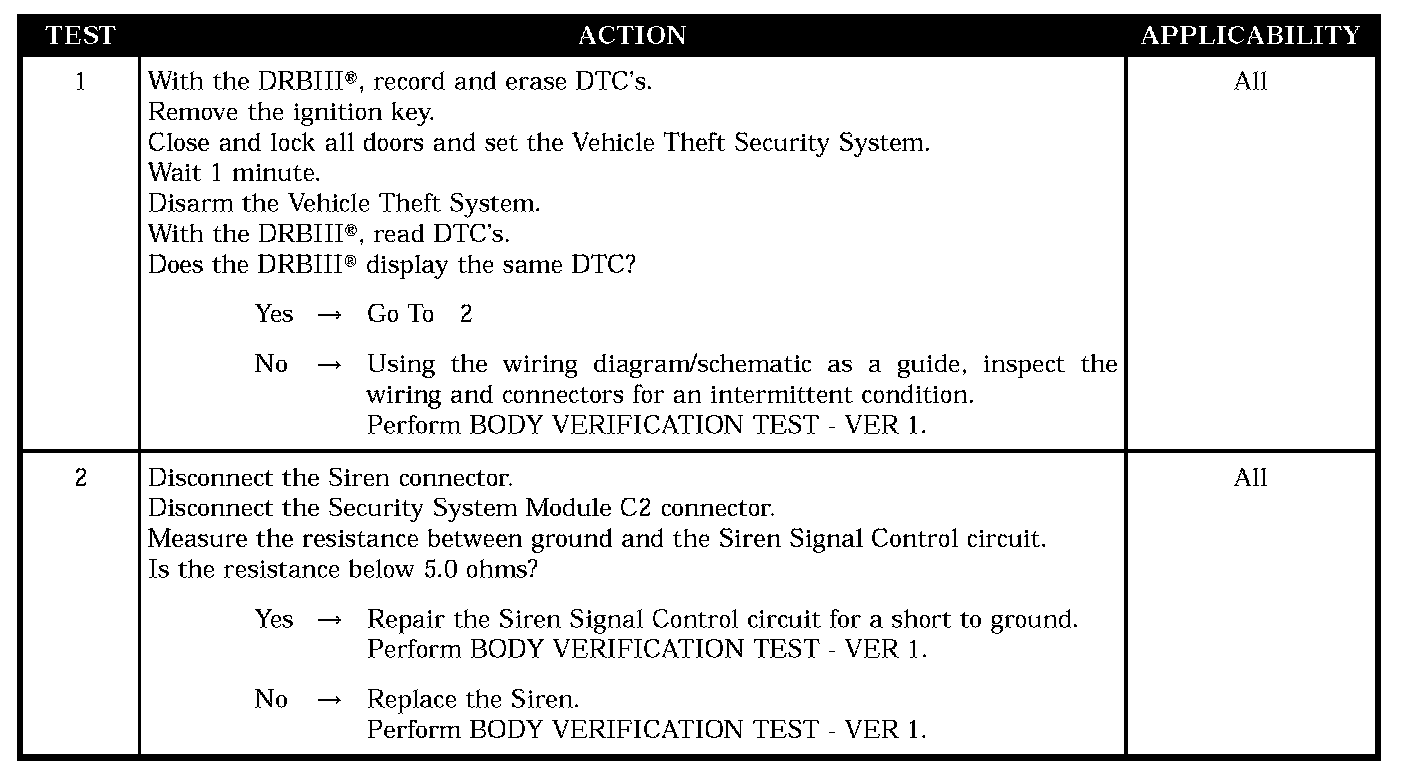

Test 1 - Test 2:

SYMPTOM
SIREN SIGNAL CONTROL CIRCUIT SHORT TO GROUND

WHEN MONITORED
Whenever the battery voltage is above 10.0 volts and the Security System Module is connected.

SET CONDITION
The Security System Module detects a short to ground on the Siren Signal Control circuit.

POSSIBLE CAUSES
- DTC present
- Siren signal control wire shorted
- Siren
