Siren Internal Failure

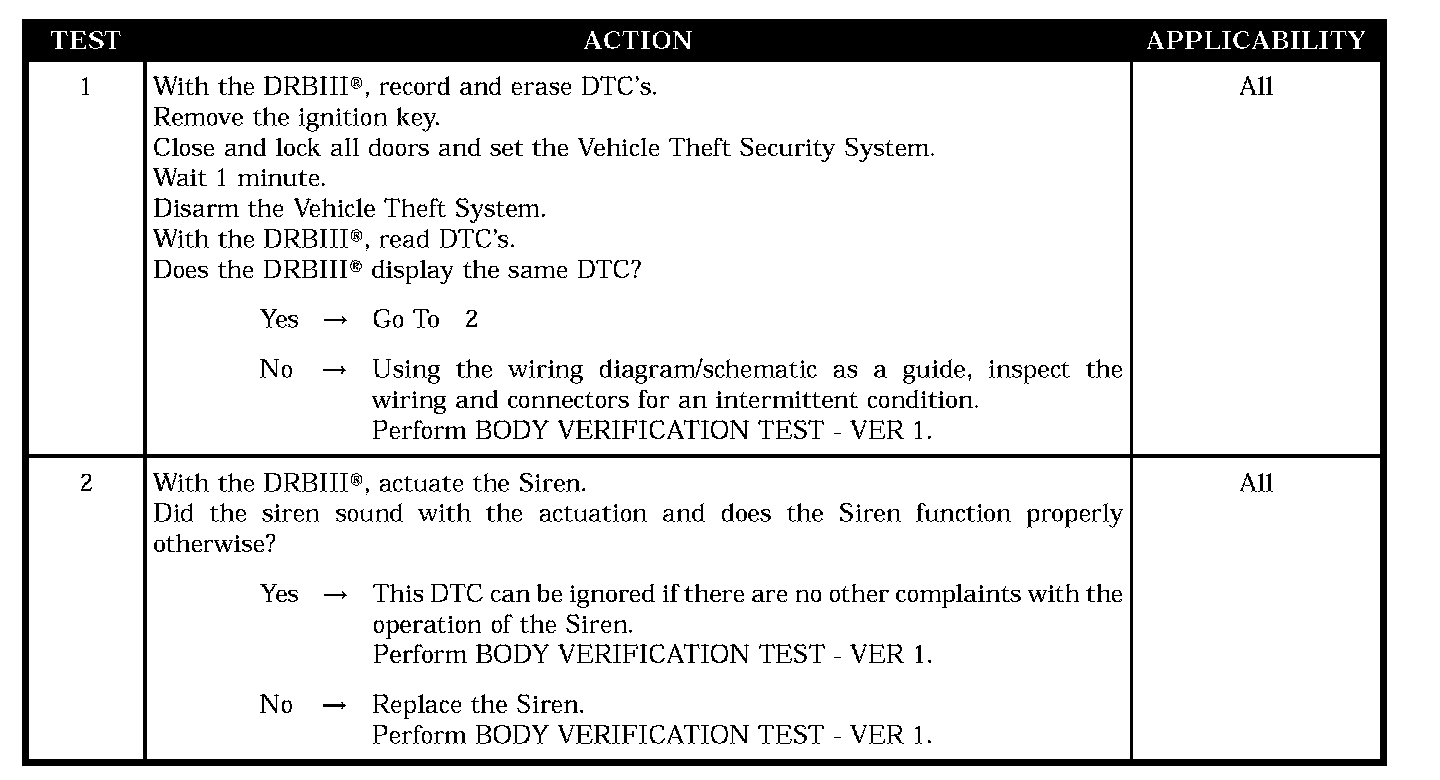

Test 1 - Test 2:






SYMPTOM
SIREN INTERNAL FAILURE

WHEN MONITORED
Whenever the battery voltage is above 10.0 volts and the Security System Module is connected.

SET CONDITION
If the Siren internal test fails this DTC will set.

POSSIBLE CAUSES
- DTC present
- Siren actuation
- Siren
