Rear or Sliding Door Jamb Switch Circuit Shorted to Ground

Test 1 - Test 2:

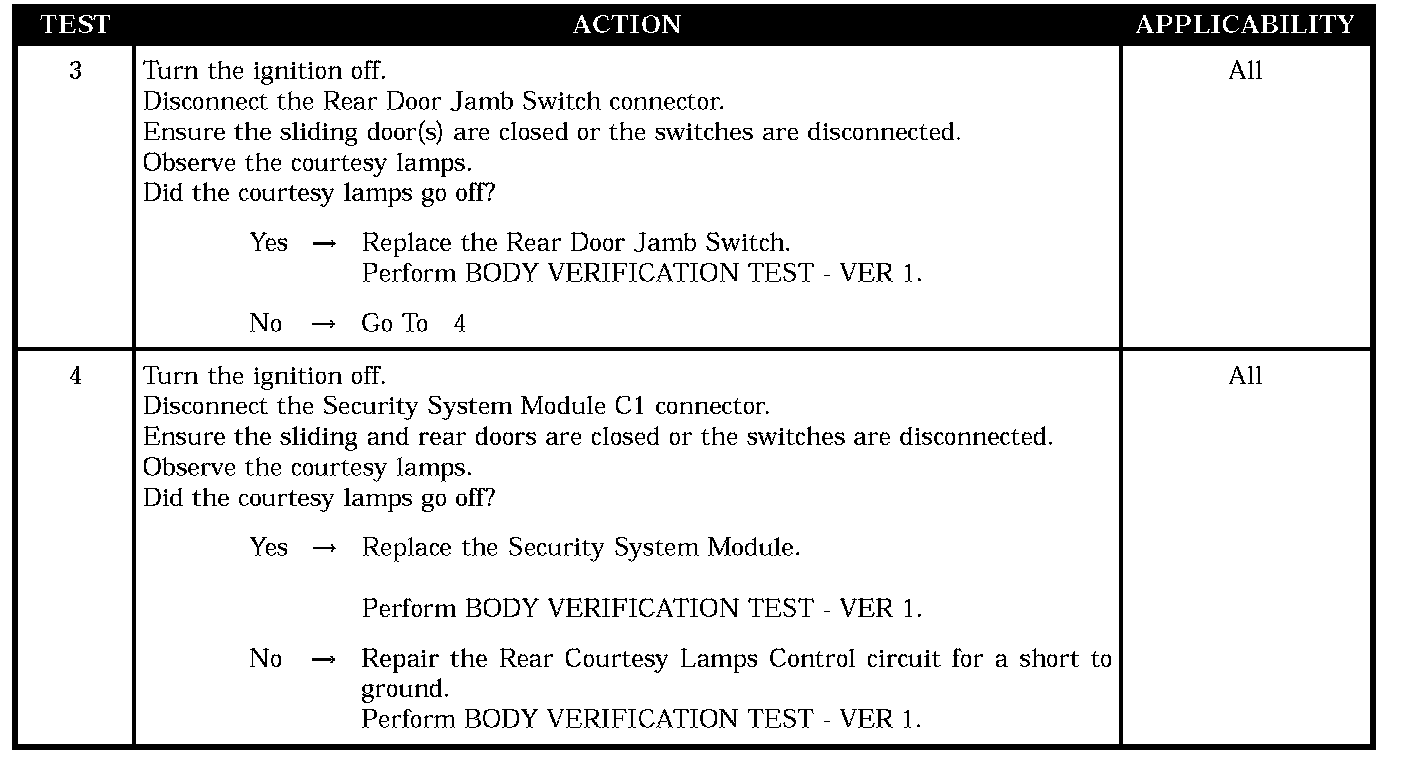

Test 3 - Test 4:

SYMPTOM
REAR OR SLIDING DOOR JAMB SWITCH CIRCUIT SHORT TO GROUND

WHEN MONITORED
Whenever the battery voltage is above 10.0 volts and the Security System Module is connected.

SET CONDITION
If a rear or sliding door jamb switch is closed or the rear courtesy lamps control circuit is grounded for over 30 minutes, this code will set.

POSSIBLE CAUSES
- DTC present
- Sliding door jamb switch shorted
- Rear door jamb switch shorted
- Security system module shorted
- Rear courtesy lamps control short to ground
