RKE Interface Circuit Failure - SSM

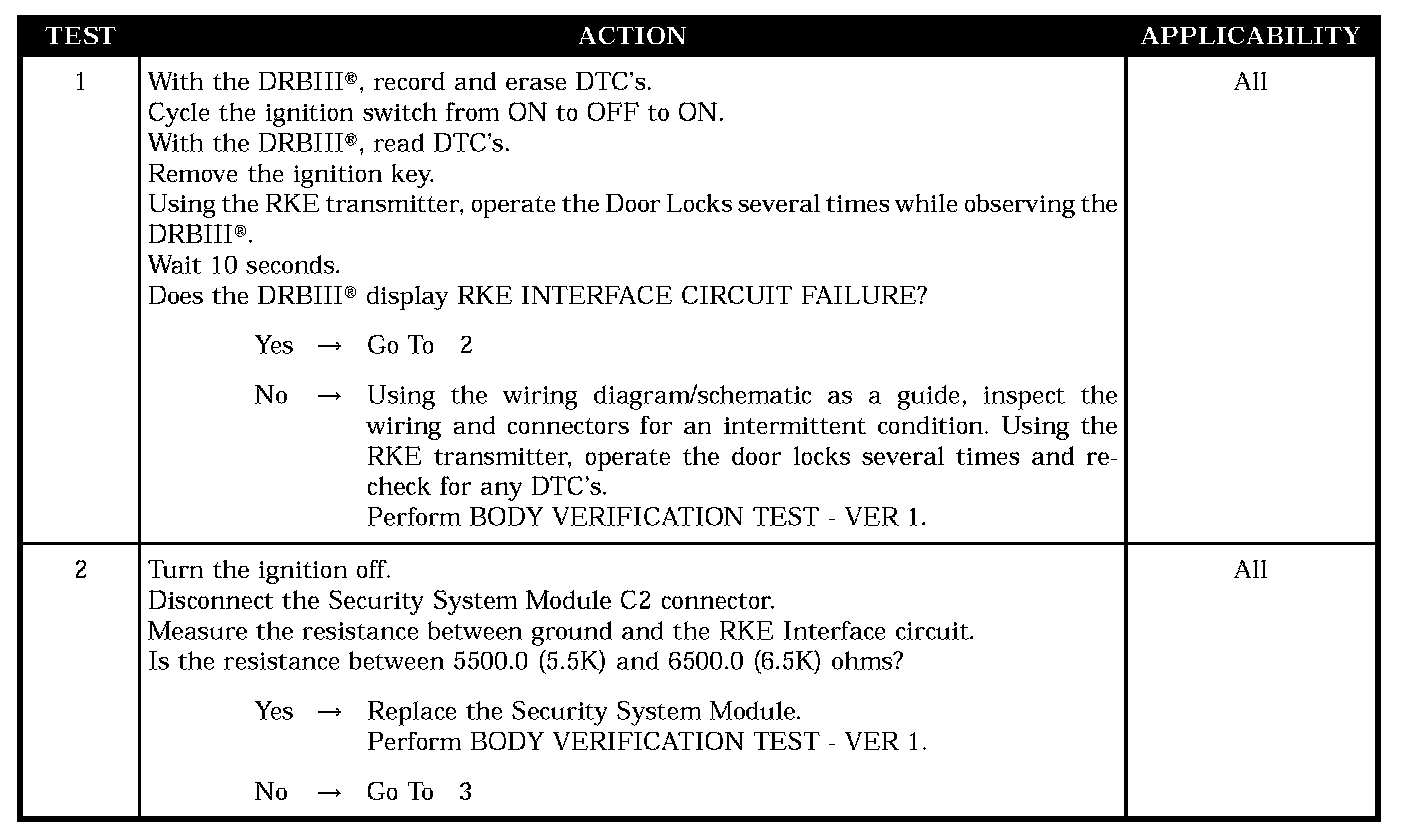

Test 1 - Test 2:

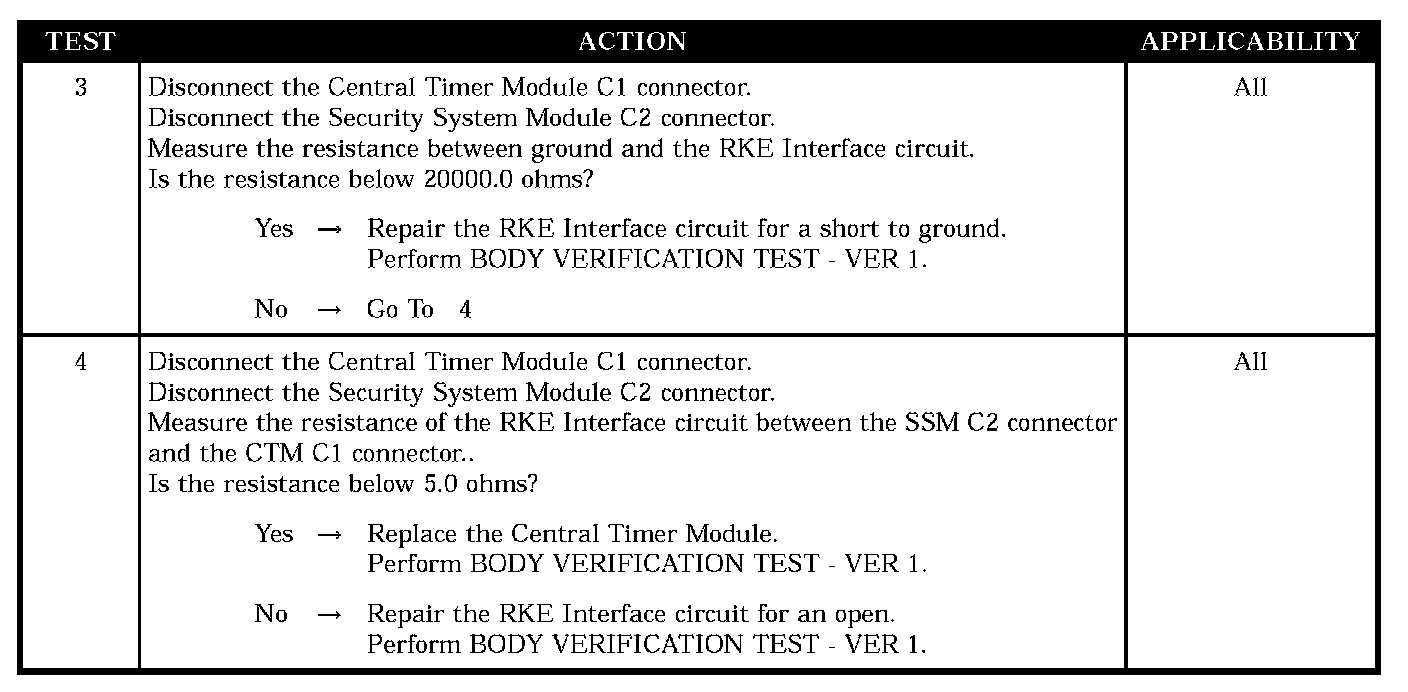

Test 3 - Test 4:

SYMPTOM
RKE INTERFACE CIRCUIT FAILURE - SSM

WHEN MONITORED
Whenever the battery voltage is above 10.0 volts and the Security System Module is connected.

SET CONDITION
If the Security System Module senses a poor or no connection to the Central Timer Module, this code will set.

POSSIBLE CAUSES
- DTC present
- Security system module shorted
- RKE interface wire shorted
- RKE interface wire open
- Central timer module failure
