Front Door Jamb Switch Circuit Shorted to Ground

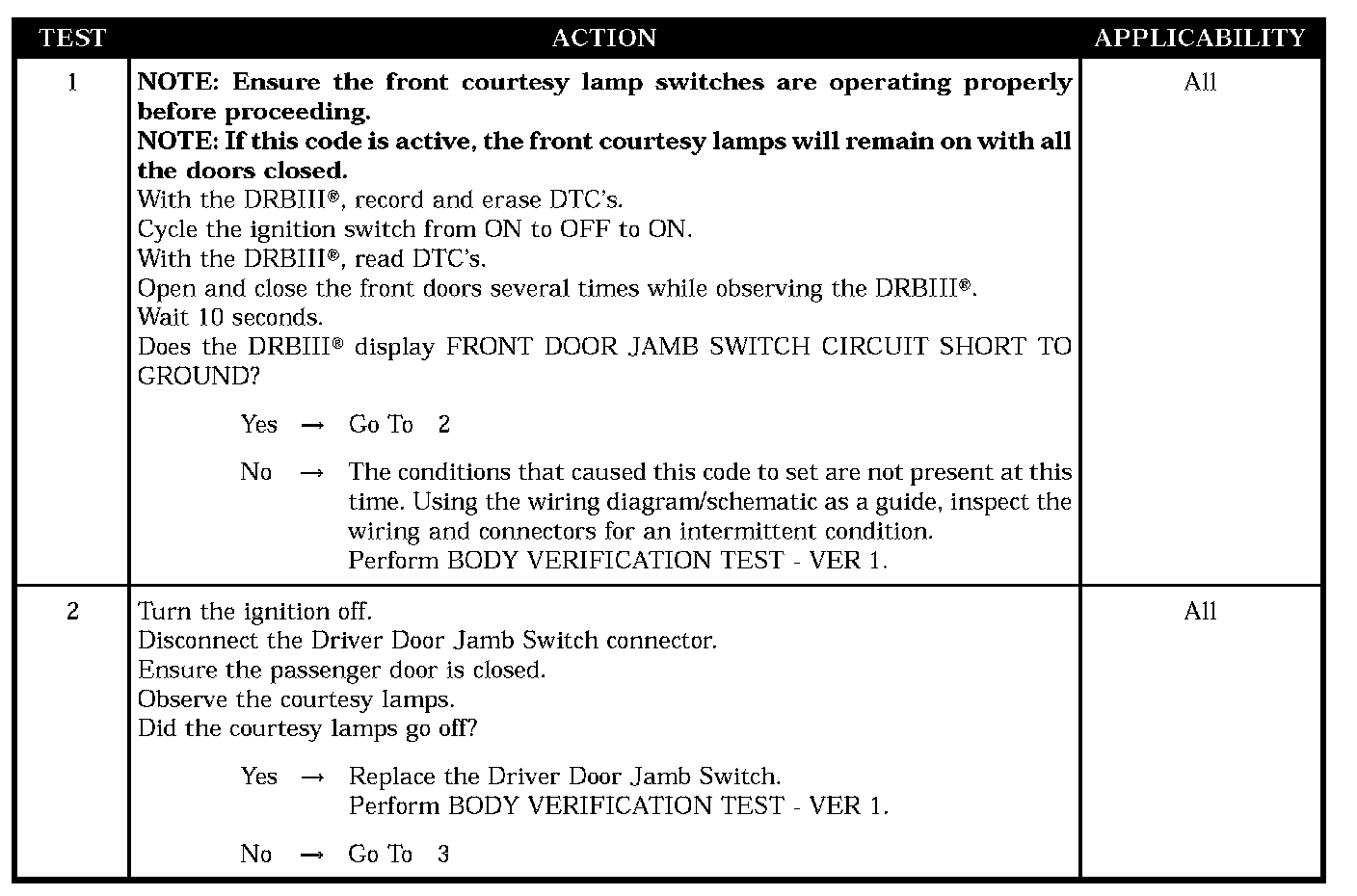

Test 1 - Test 2:

Test 3 - Test 4:

SYMPTOM
FRONT DOOR JAMB SWITCH CIRCUIT SHORT TO GROUND

WHEN MONITORED
Whenever the battery voltage is above 10.0 volts and the Security System Module is connected.

SET CONDITION
If a front door jamb switch is closed or the front courtesy lamps control circuit is grounded for over 30 minutes, this code will set.

POSSIBLE CAUSES
- DTC present
- Driver door jamb switch shorted
- Passenger door jamb switch shorted
- Security system module shorted
- Front courtesy lamps control short to ground
