Driver Cylinder Unlock Switch Circuit Shorted to Ground

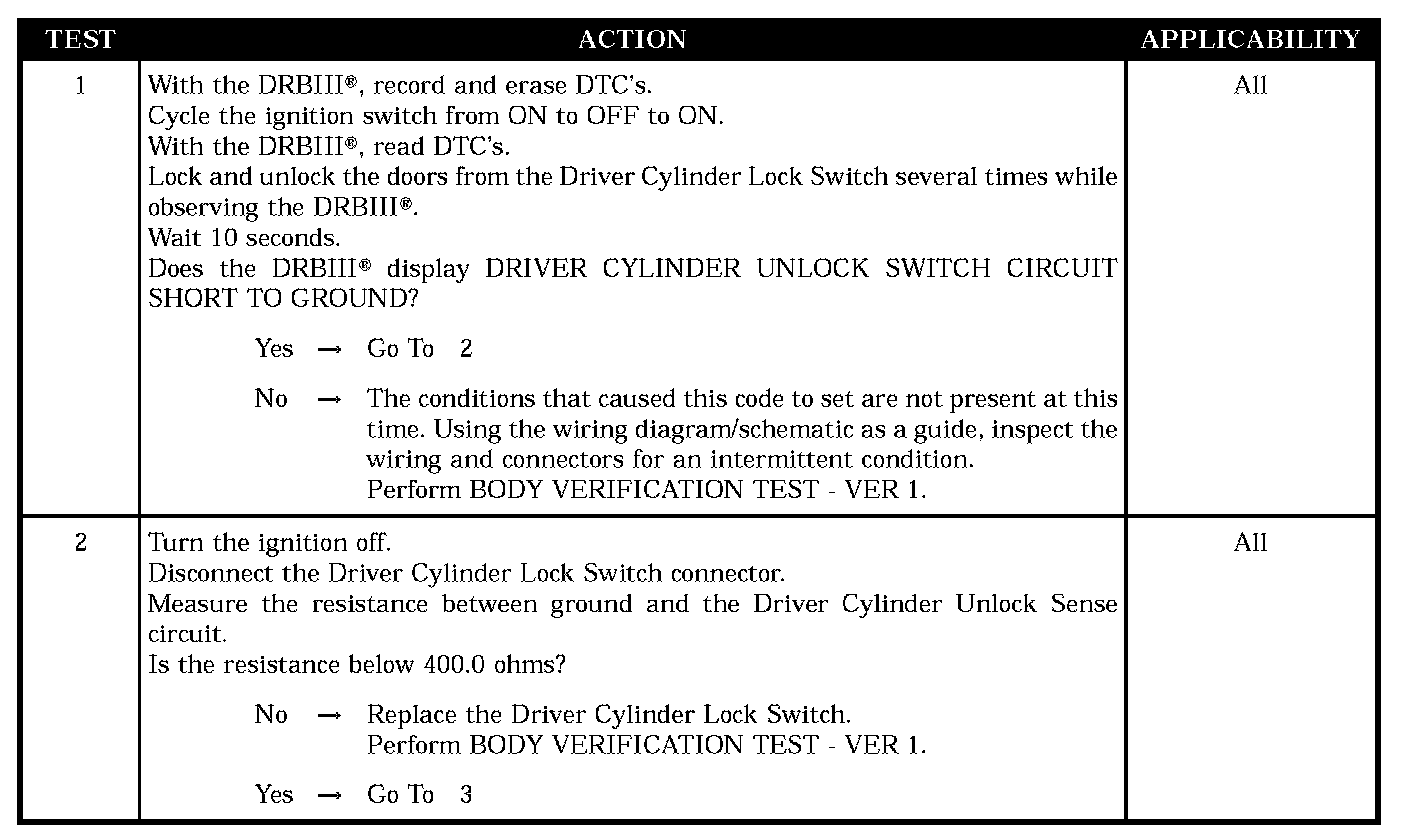

Test 1 - Test 2:

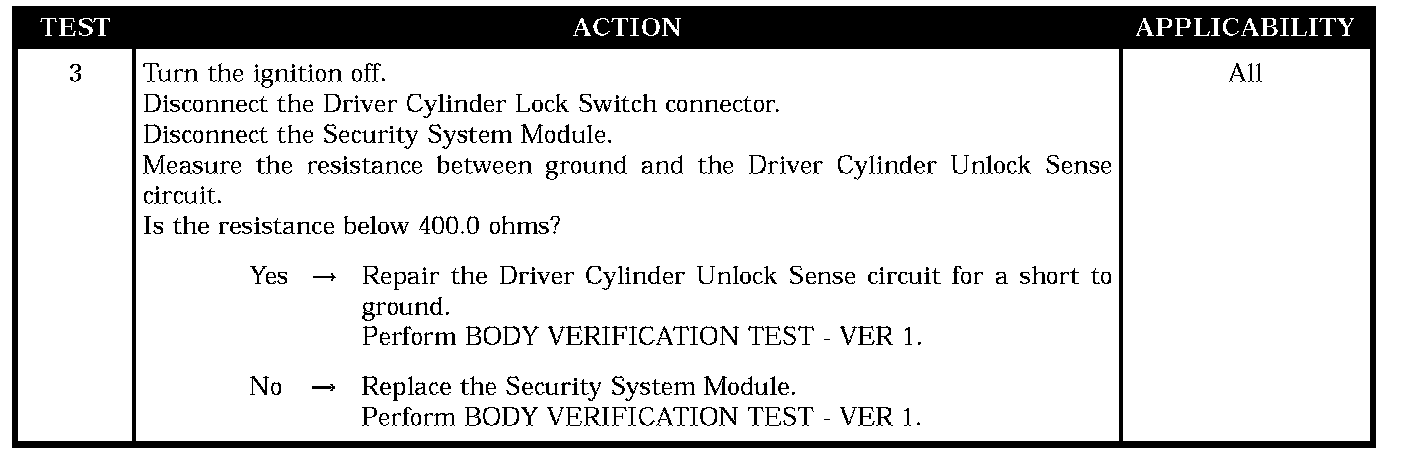

Test 3:

SYMPTOM
DRIVER CYLINDER UNLOCK SWITCH CIRCUIT SHORT TO GROUND

WHEN MONITORED
- Whenever the battery voltage is above 10.0 volts and the Security System Module is connected.

SET CONDITION
If the Driver Cylinder Unlock Circuit is closed to ground for over 30 seconds, this code will set.

POSSIBLE CAUSES
- DTC present
- Driver cylinder lock switch shorted
- Driver cylinder unlock sense circuit short to ground
- Security system module short to ground
