Driver Cylinder Lock Switch Circuit Shorted to Ground

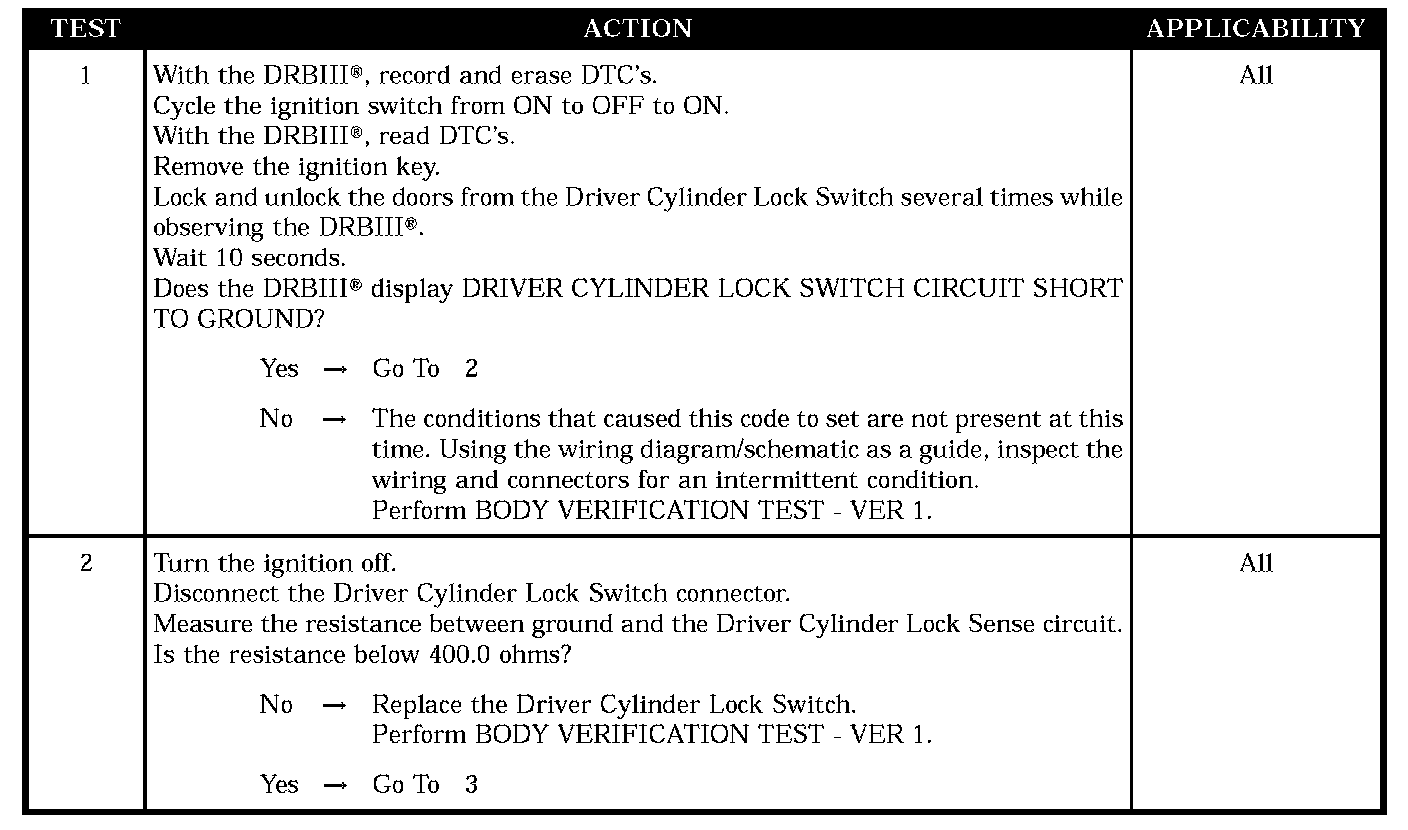

Test 1 - Test 2:

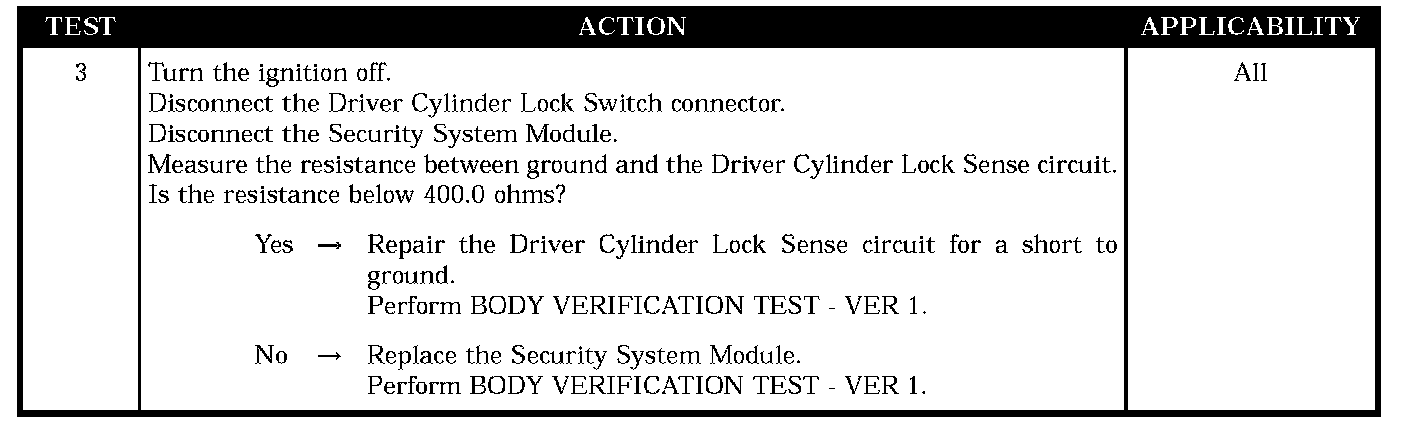

Test 3:

SYMPTOM
DRIVER CYLINDER LOCK SWITCH CIRCUIT SHORT TO GROUND

WHEN MONITORED
Whenever the battery voltage is above 10.0 volts and the Security System Module is connected.

SET CONDITION
If the Driver Cylinder Lock Sense circuit is grounded for over 30 seconds, this code will set.

POSSIBLE CAUSES
- DTC present
- Driver cylinder lock switch shorted
- Driver cylinder lock sense circuit short to ground
- Security system module short to ground
