Trans Temp Sensor - P/N Switch Circuit
Symptom:TRANS TEMP SENSOR - P/N SWITCH CIRCUIT
When Monitored and Set Condition
When Monitored: Always monitored with system active at each ignition cycle.
Set Condition: Temp sensor is open while in forward gears (1-5), temp sensor, open Trans temp circuit, P/N Switch.
POSSIBLE CAUSES
- SHIFTER ADJUSTMENT
- SENSOR GROUND CIRCUIT OPEN
- TEMP SENSOR - P/N SWITCH CIRCUIT OPEN
- TEMP SENSOR - P/N SWITCH CIRCUIT SHORT TO GROUND
- SENSOR GROUND CIRCUIT SHORT TO OTHER CIRCUITS
- TEMP SENSOR- P/N SWITCH CIRCUIT SHORT TO OTHER CIRCUITS
- TEMP SENSOR - P/N SWITCH
- TCM - TEMP SENSOR - P/N SWITCH

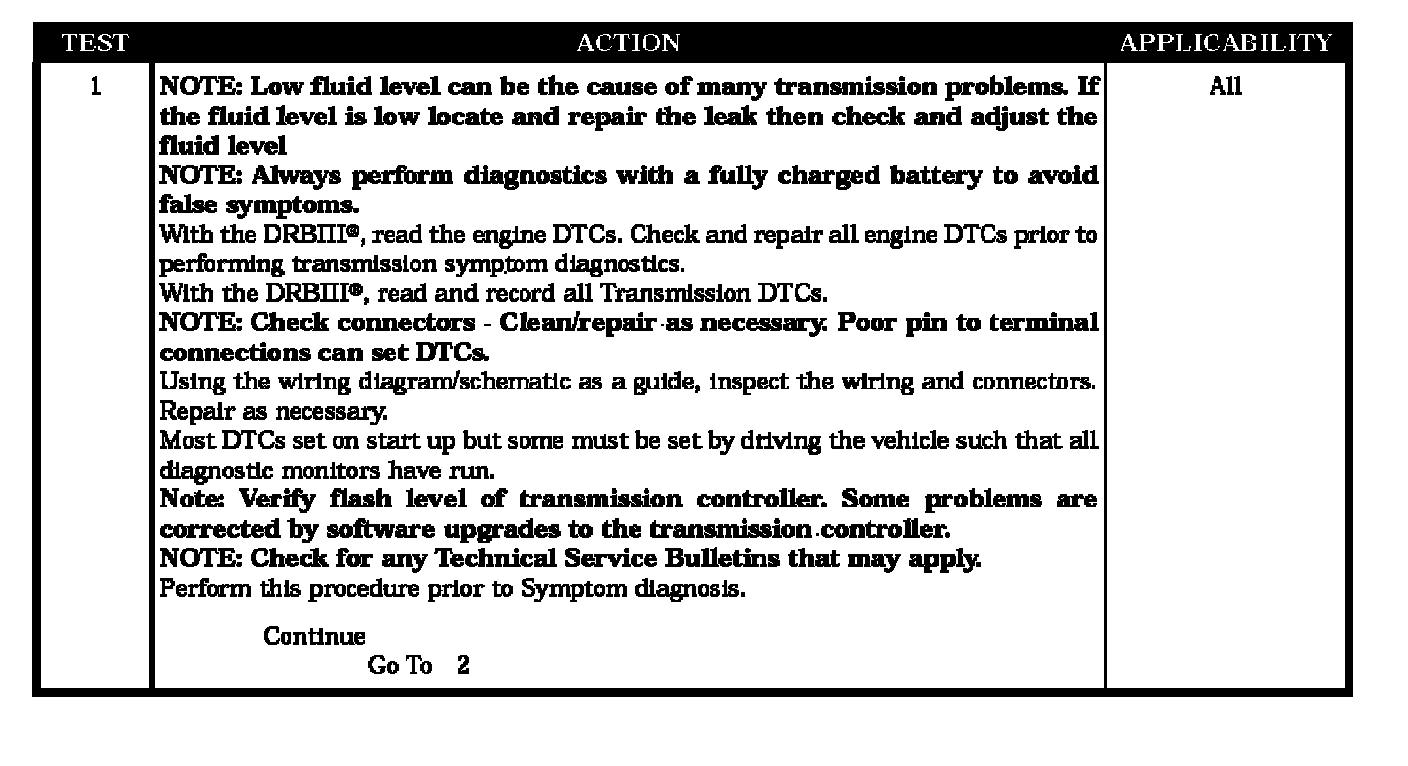

Test 1:
