Home >> Freightliner Truck >> 2006 >> Sprinter 3500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Transmission Control System >> Transmission - NAG1 >> SLA CAN Messages Incorrect

SLA CAN Messages Incorrect

Symptom:
SLA CAN MESSAGE INCORRECT

POSSIBLE CAUSES
- SHIFT LEVER ASSEMBLY DTCS PRESENT
- PCM/ECM - ENGINE TORQUE MESSAGE INCORRECT
- TCM - TORQUE MESSAGE INCORRECT

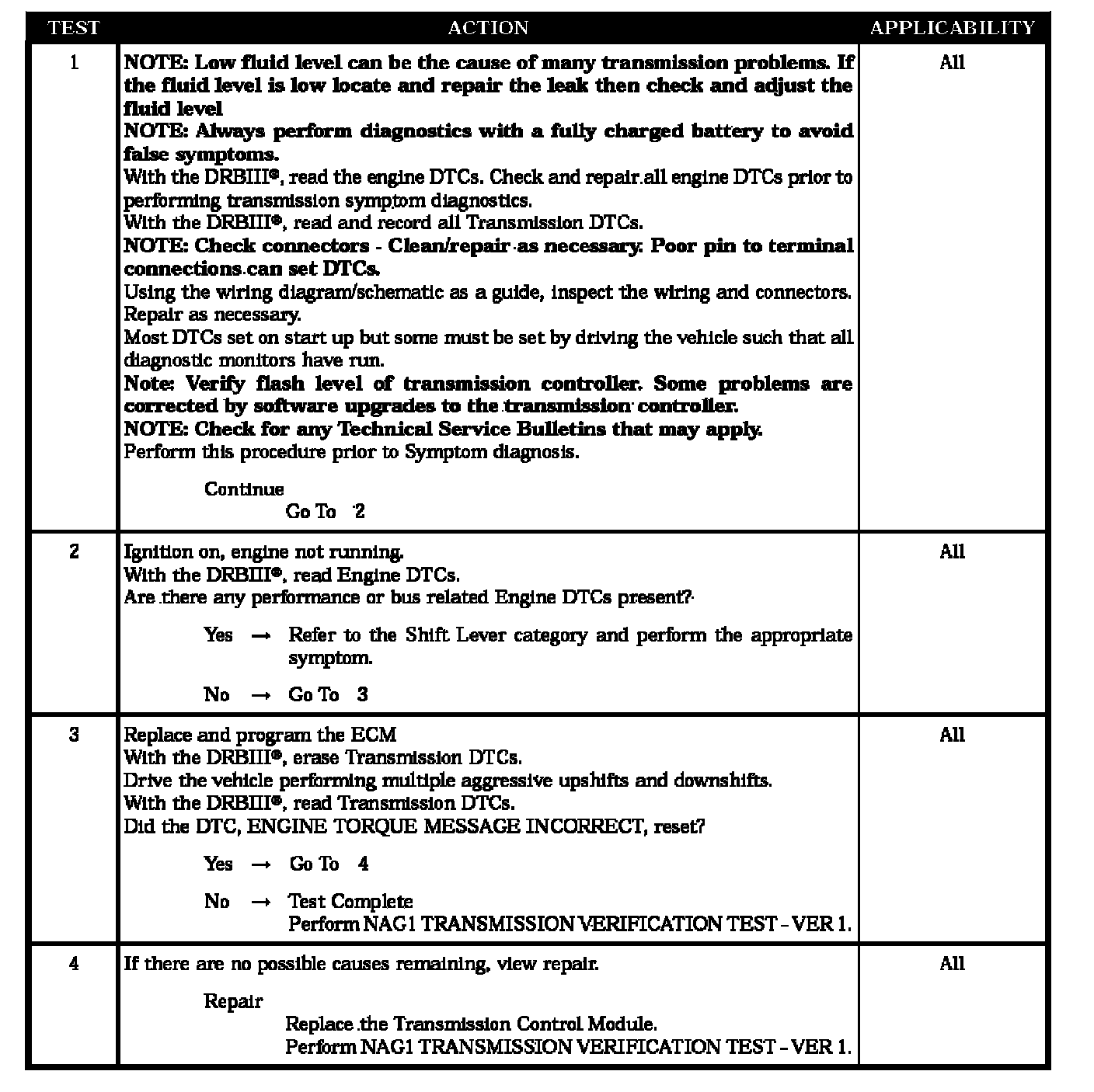

Test 1 - Test 4:
