Input Sensor Overspeed

Symptom:
INPUT SENSOR OVERSPEED

When Monitored and Set Condition

When Monitored: Whenever the N2 input speed sensor is greater than 0 rpm

Set Condition: If the rpm of the N2 or N3 input speed sensor is greater than 7700 rpm

POSSIBLE CAUSES
- INTERMITTENT WIRING AND CONNECTORS
- INTERNAL TRANSMISSION
- TCM - INPUT SENSOR OVERSPEED

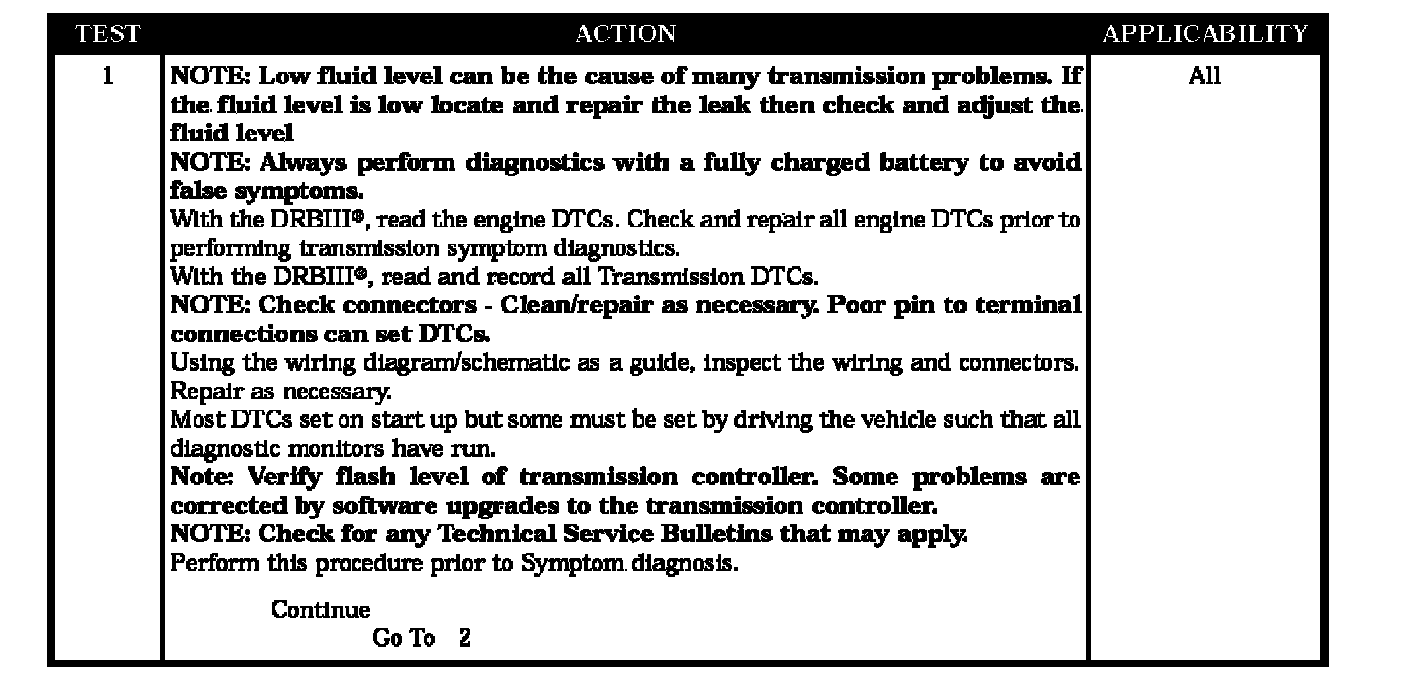

Test 1:

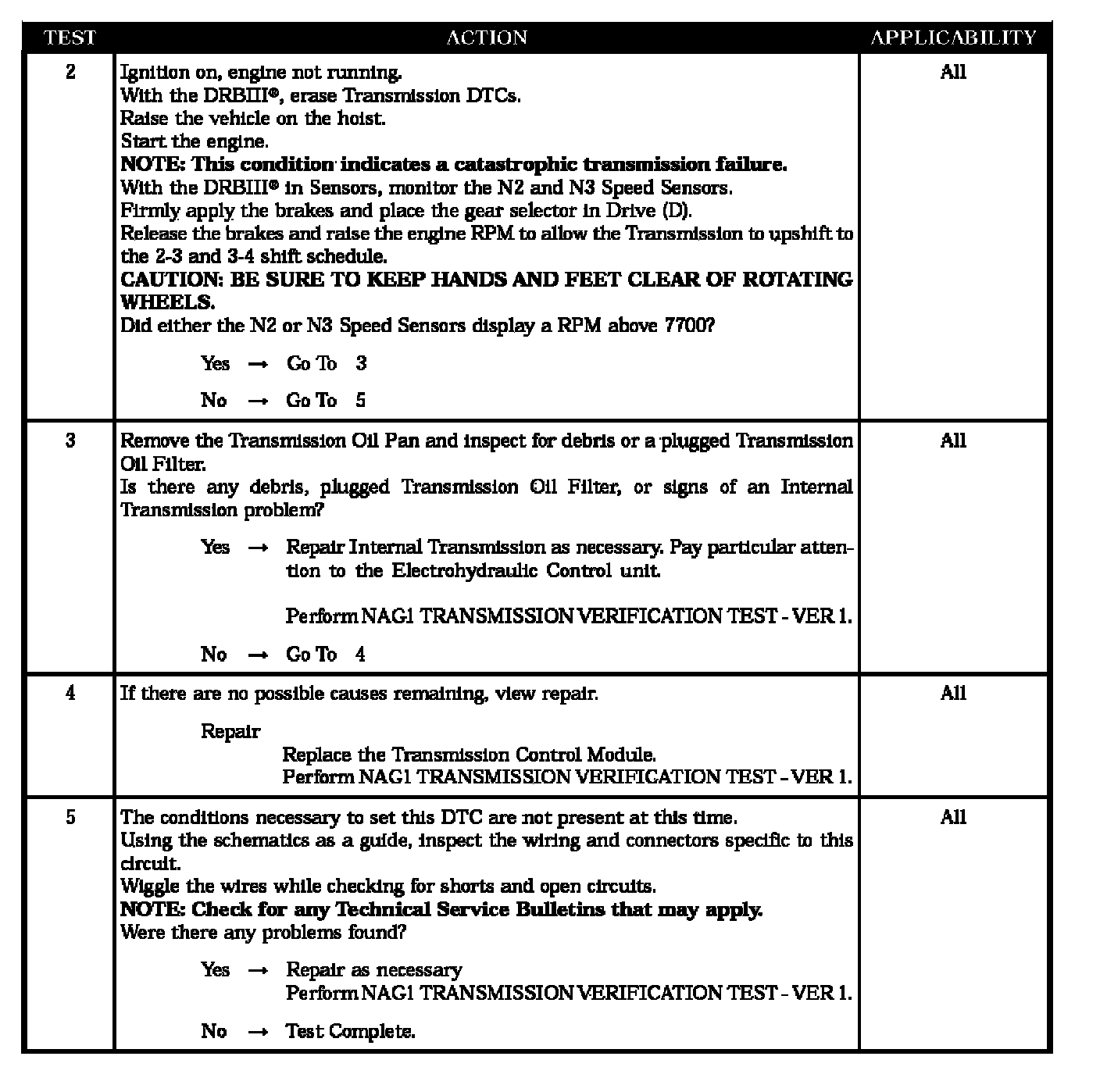

Test 2 - Test 5:
