IC CAN Messages Incorrect

Symptom:
IC CAN MESSAGE INCORRECT

When Monitored and Set Condition

When Monitored:

Set Condition: CAN Bus messages received from the Instrument Cluster are incorrect.

POSSIBLE CAUSES
- CAN BUS CIRCUIT DTC PRESENT
- INSTRUMENT CLUSTER DTCS PRESENT
- OPEN CAN CIRCUITS AT INSTRUMENT CLUSTER
- INSTRUMENT CLUSTER

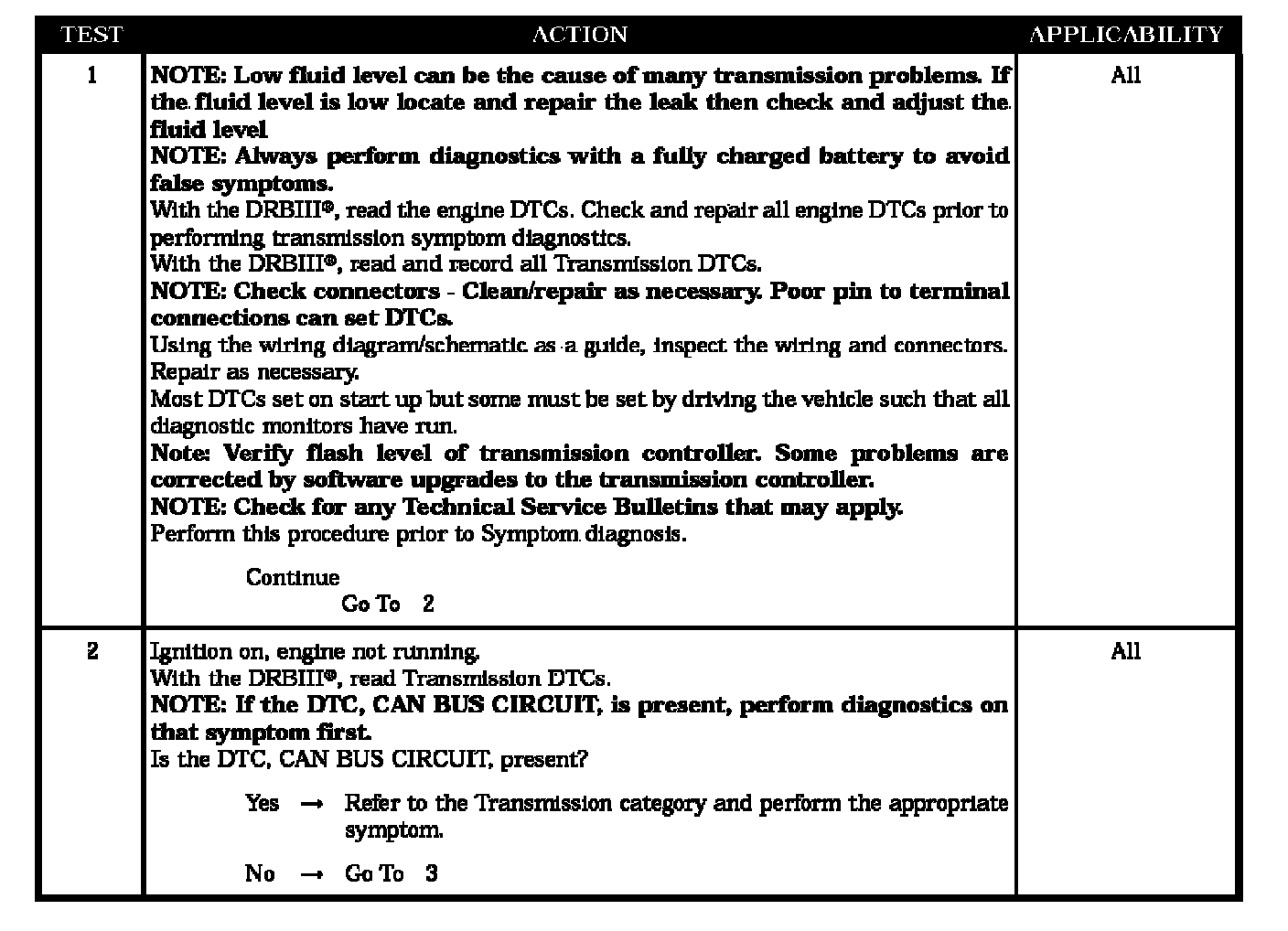

Test 1 - Test 2:

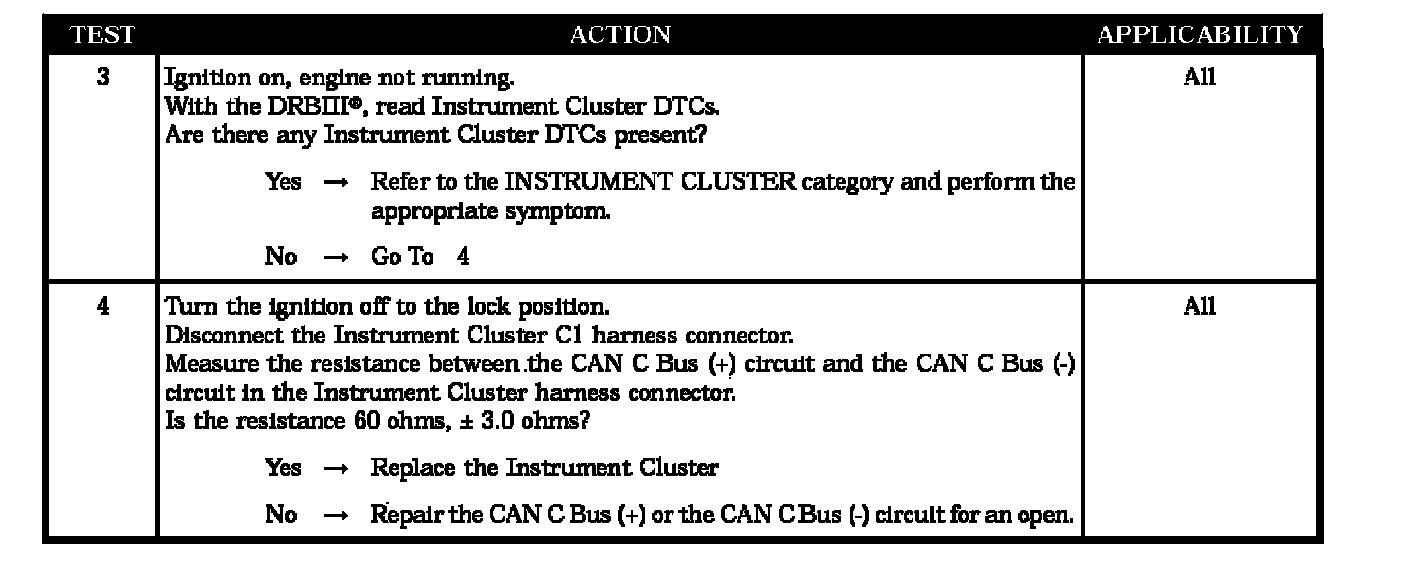

Test 3 - Test 4:
