Engine Overspeed

Symptom:
ENGINE OVERSPEED

When Monitored and Set Condition

When Monitored: Valid Engine RPM message received at least once, the CAN Bus Circuit and Engine CAN Message Missing are not active.

Set Condition: If the engine speed increases above 5100 RPM.

POSSIBLE CAUSES
- ENGINE - MECHANICAL PROBLEM
- TRANSMISSION - MECHANICAL PROBLEM
- ECM - ENGINE OVERSPEED
- TCM - ENGINE OVERSPEED

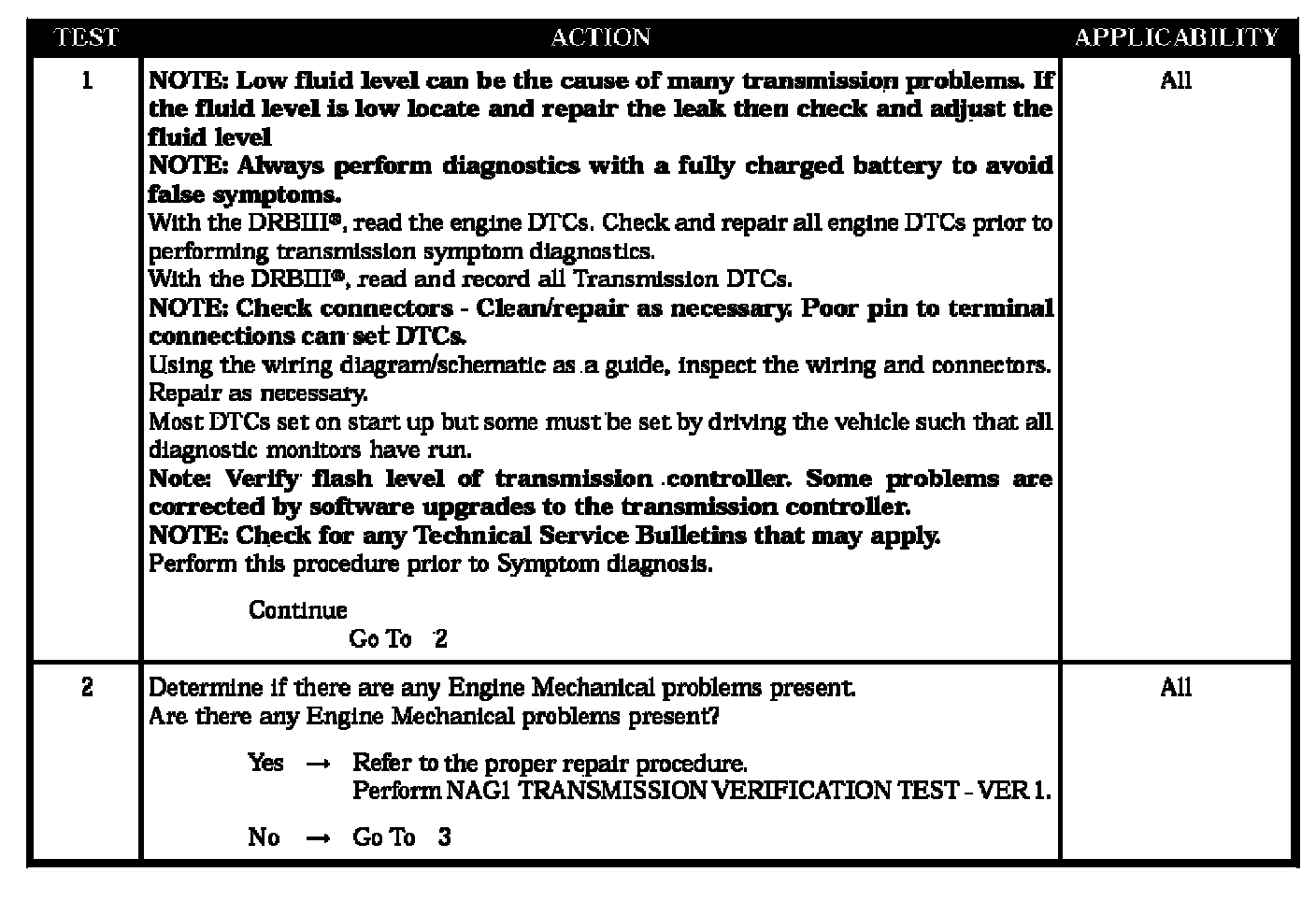

Test 1 - Test 2:

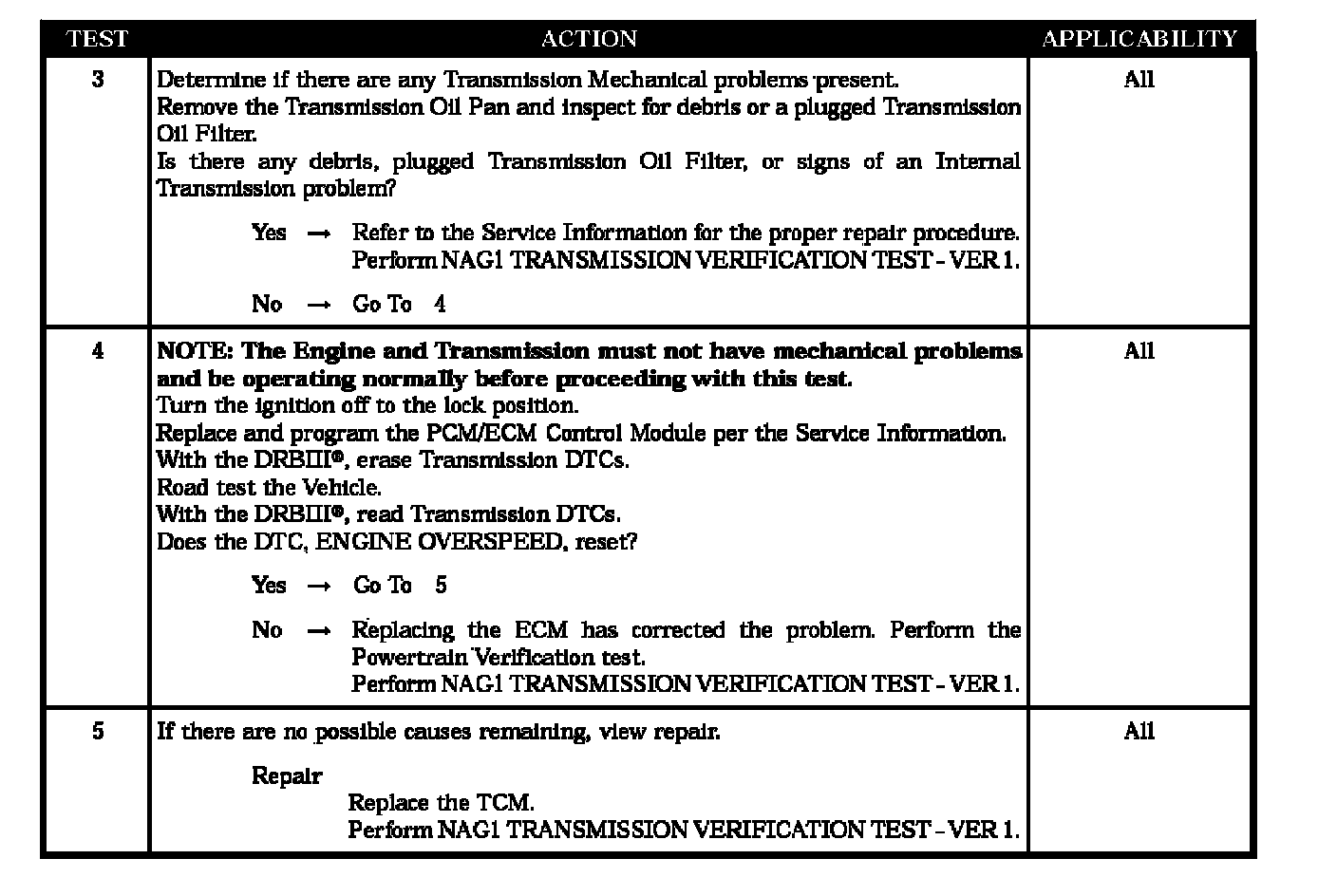

Test 3 - Test 5:
