CAN Messages From ECM From SLA

Symptom:
CAN MESSAGE FROM ECM FROM SLA

When Monitored and Set Condition

When Monitored:

Set Condition: CAN Bus message received from the Shift Lever Assembly are incorrect.

POSSIBLE CAUSES
- CAN BUS CIRCUIT DTC PRESENT
- SHIFT LEVER DTCS PRESENT
- OPEN CAN BUS CIRCUITS AT SHIFT LEVER
- SHIFT LEVER ASSEMBLY

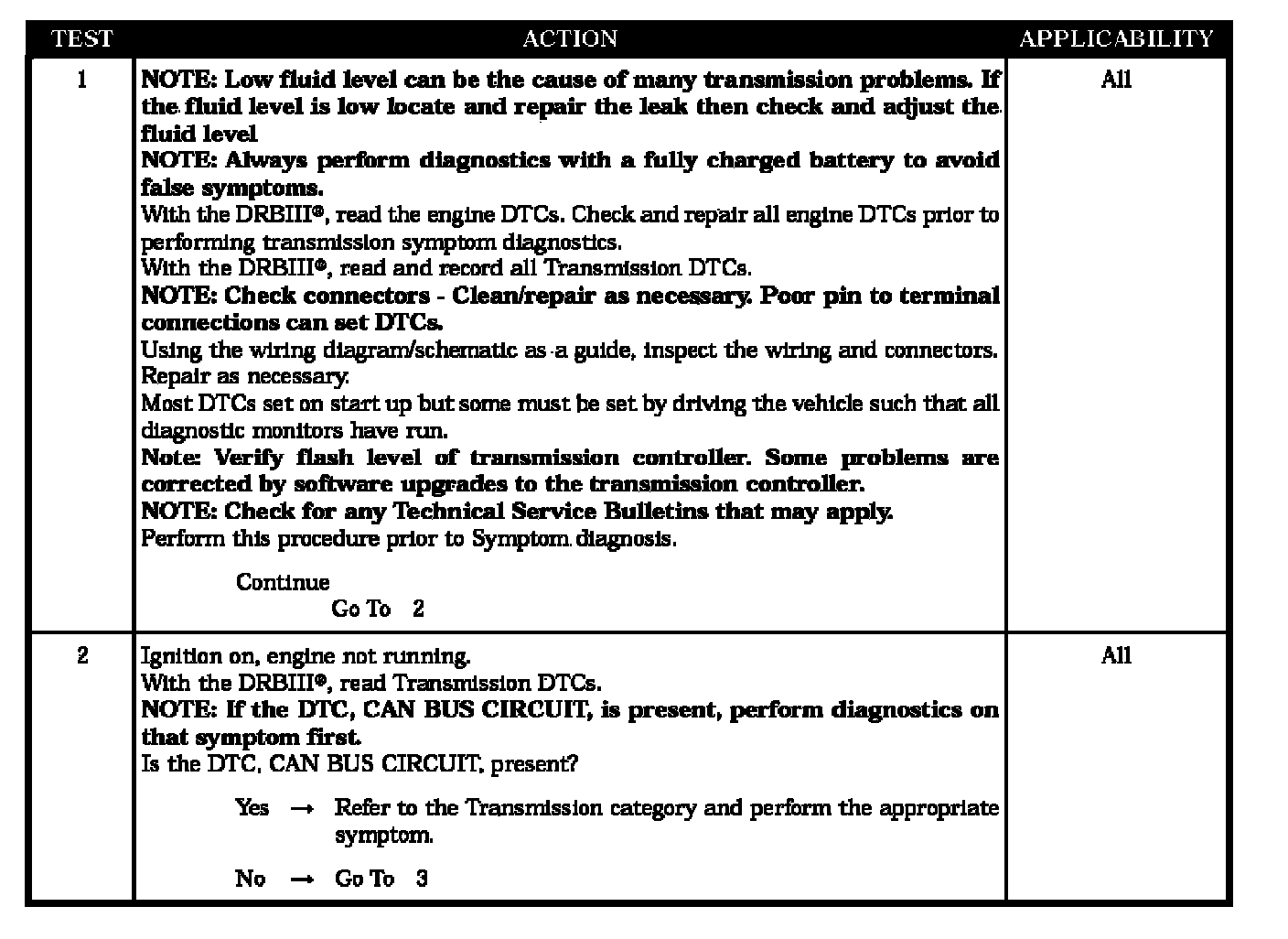

Test 1 - Test 2:

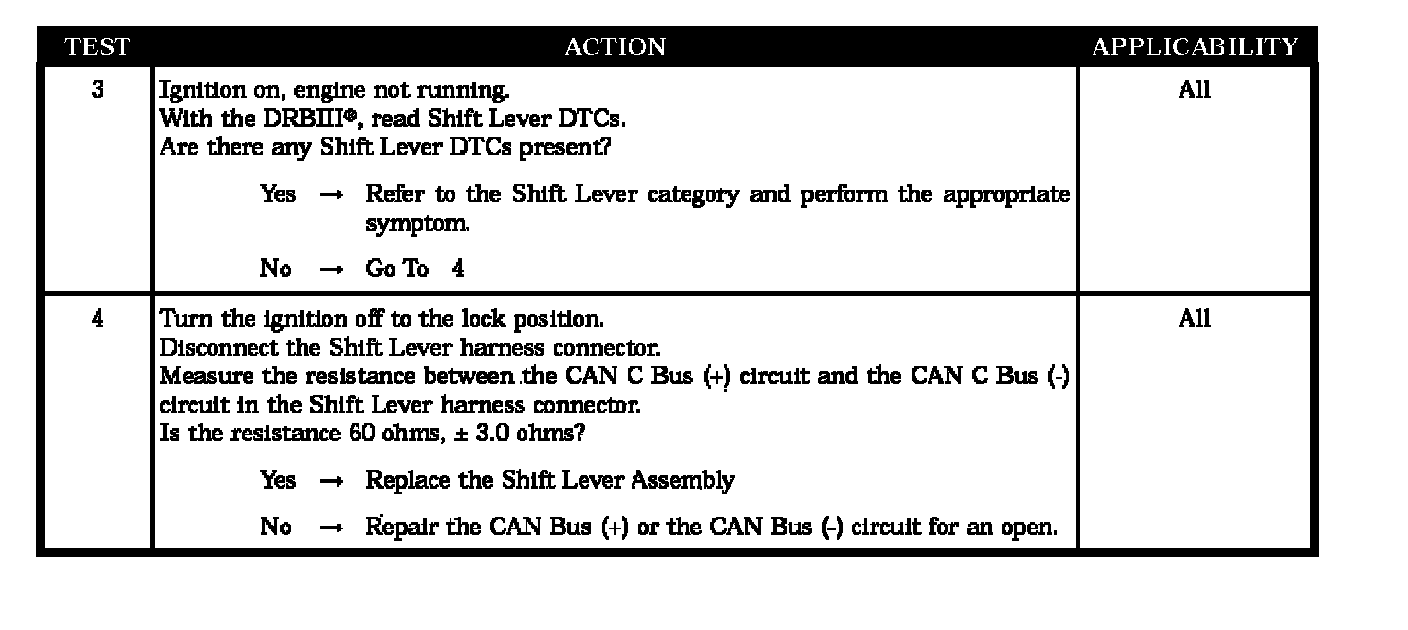

Test 3 - Test 4:
