ABS LF Sensor Messages
Symptom:ABS LF SENSOR MESSAGE
When Monitored and Set Condition
When Monitored: Valid ABS CAN messages received at least once and the CAN Bus circuit, ABS CAN Message Missing, ABS CAN Message Incorrect are not active
Set Condition: ABS signal "Wheel Speed Front Left" not valid or ABS has detected a sensor failure.

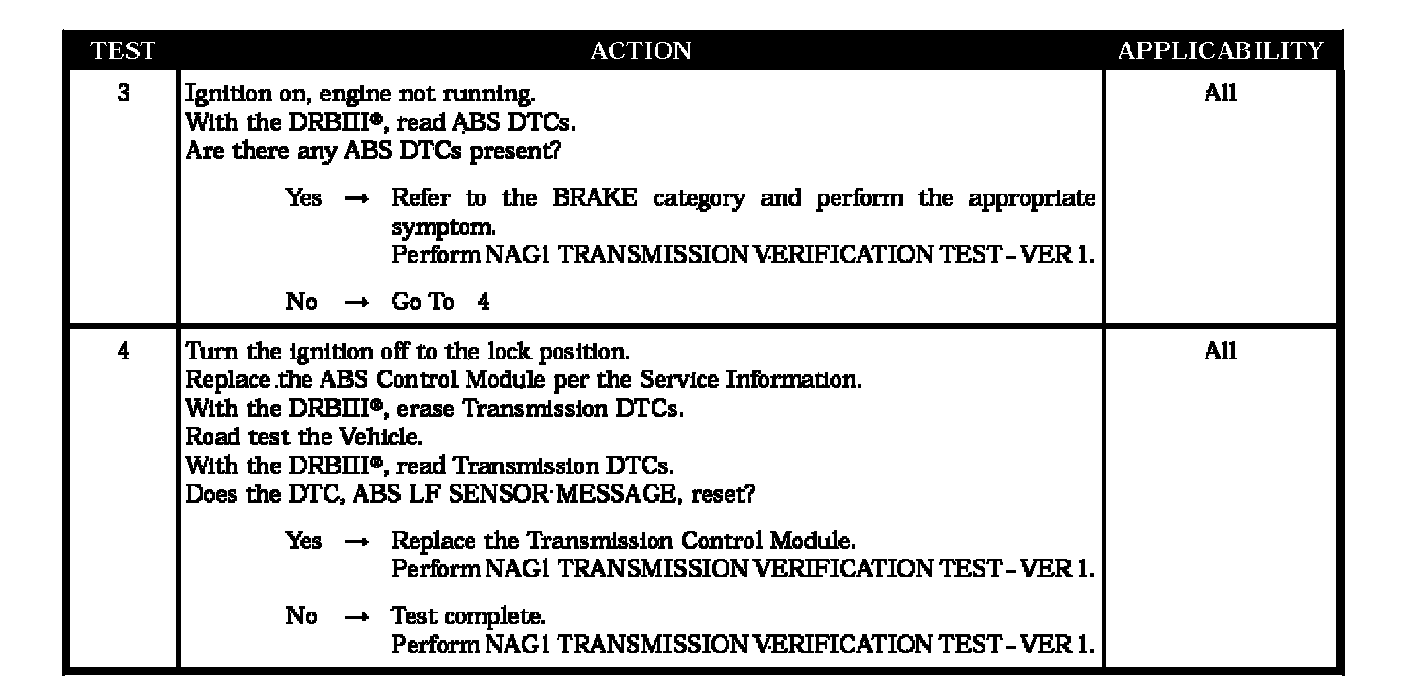

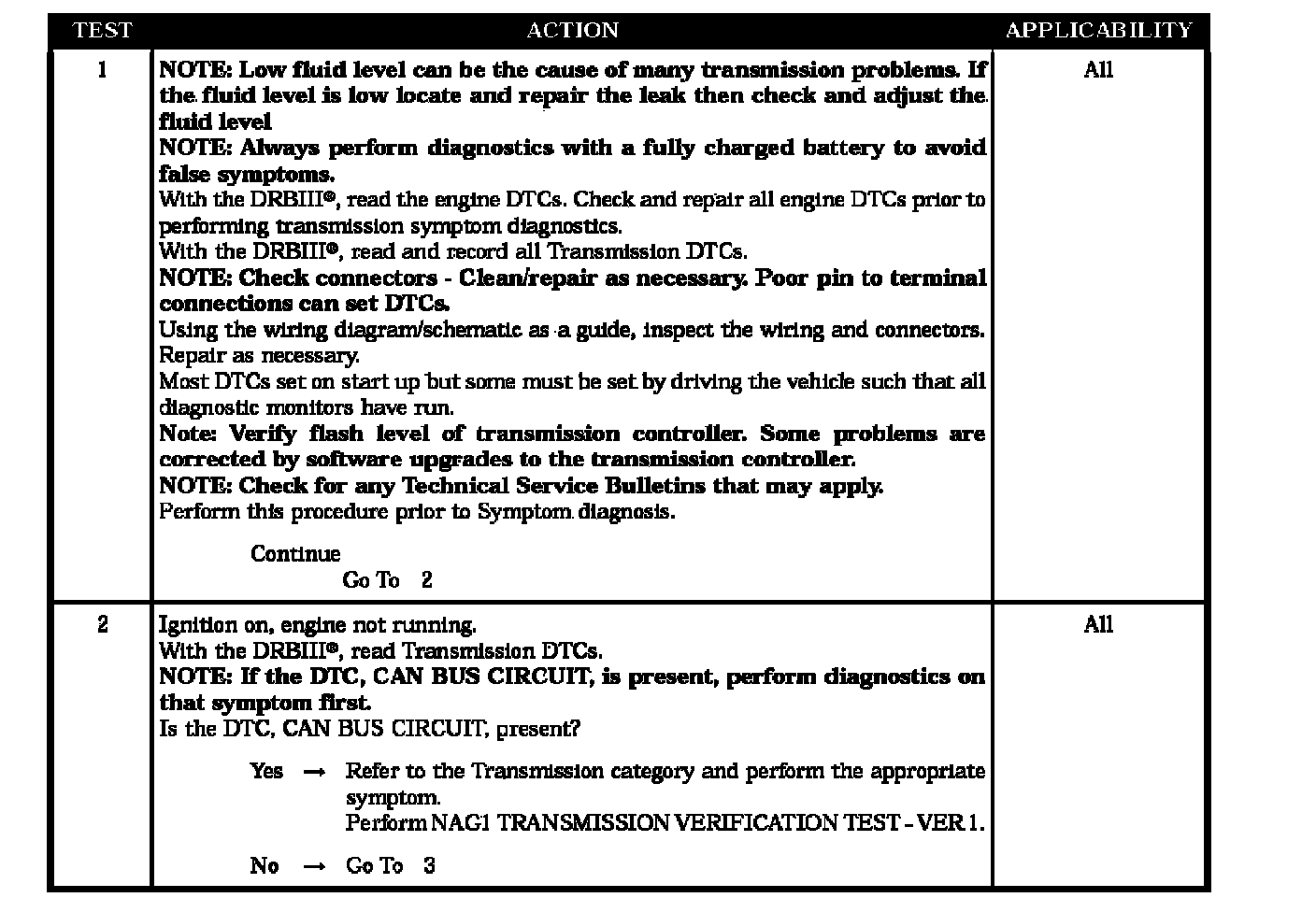

POSSIBLE CAUSES
- CAN BUS CIRCUIT DTC PRESENT
- ABS DTCS PRESENT
- ABS CONTROL MODULE - ABS LF SENSOR MESSAGE
- TCM - ABS LF SENSOR MESSAGE
