ABS Brake Messages
Symptom:ABS BRAKE MESSAGE
When Monitored and Set Condition
When Monitored: Valid Brake CAN message received at least once and CAN Bus Circuit, ABS CAN Message Missing, ABS CAN Message Incorrect are not active.
Set Condition: Signal "brake-light switch" not valid-ABS sending invalid value.
POSSIBLE CAUSES

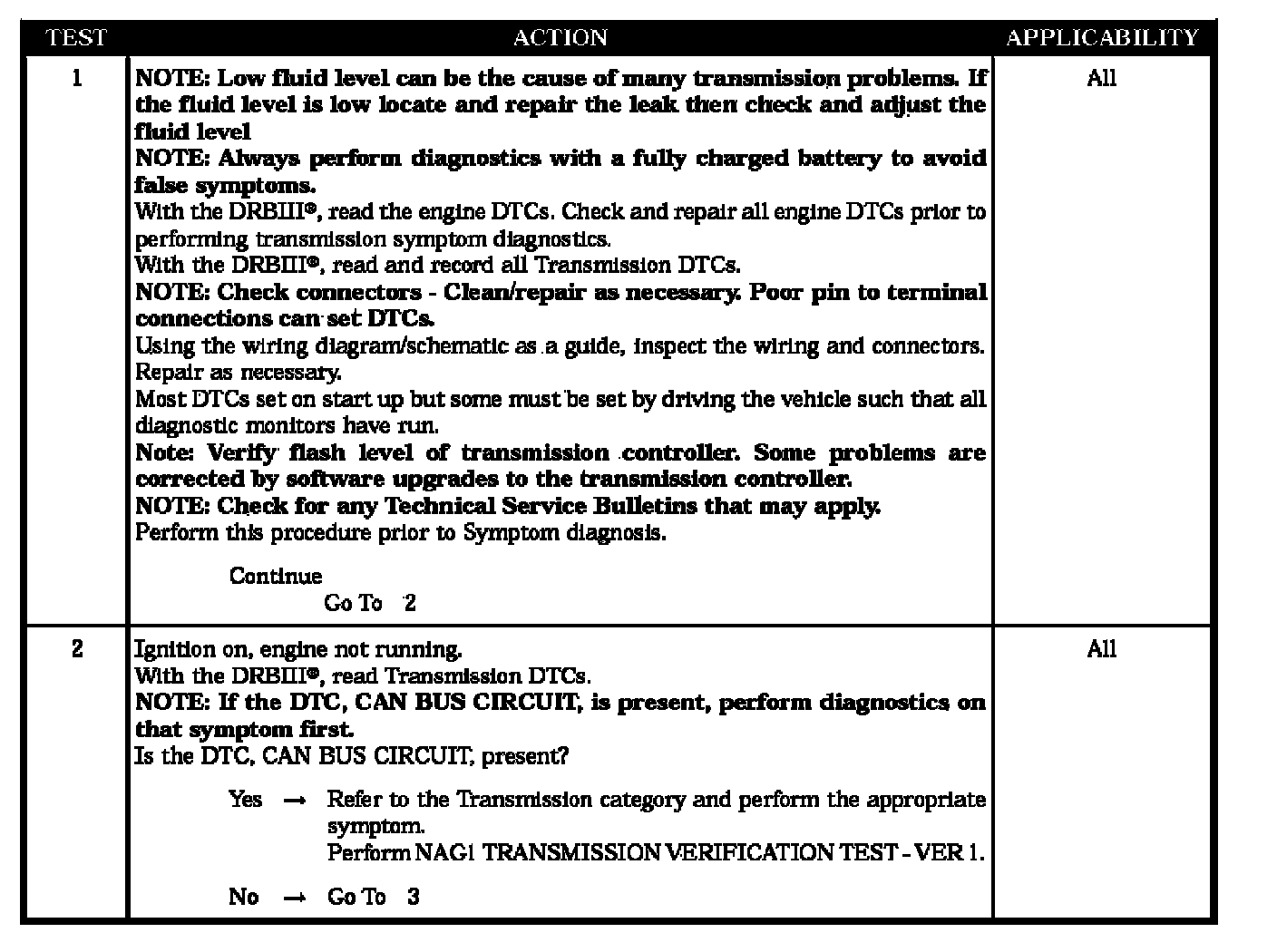

- CAN C BUS CIRCUIT DTC PRESENT

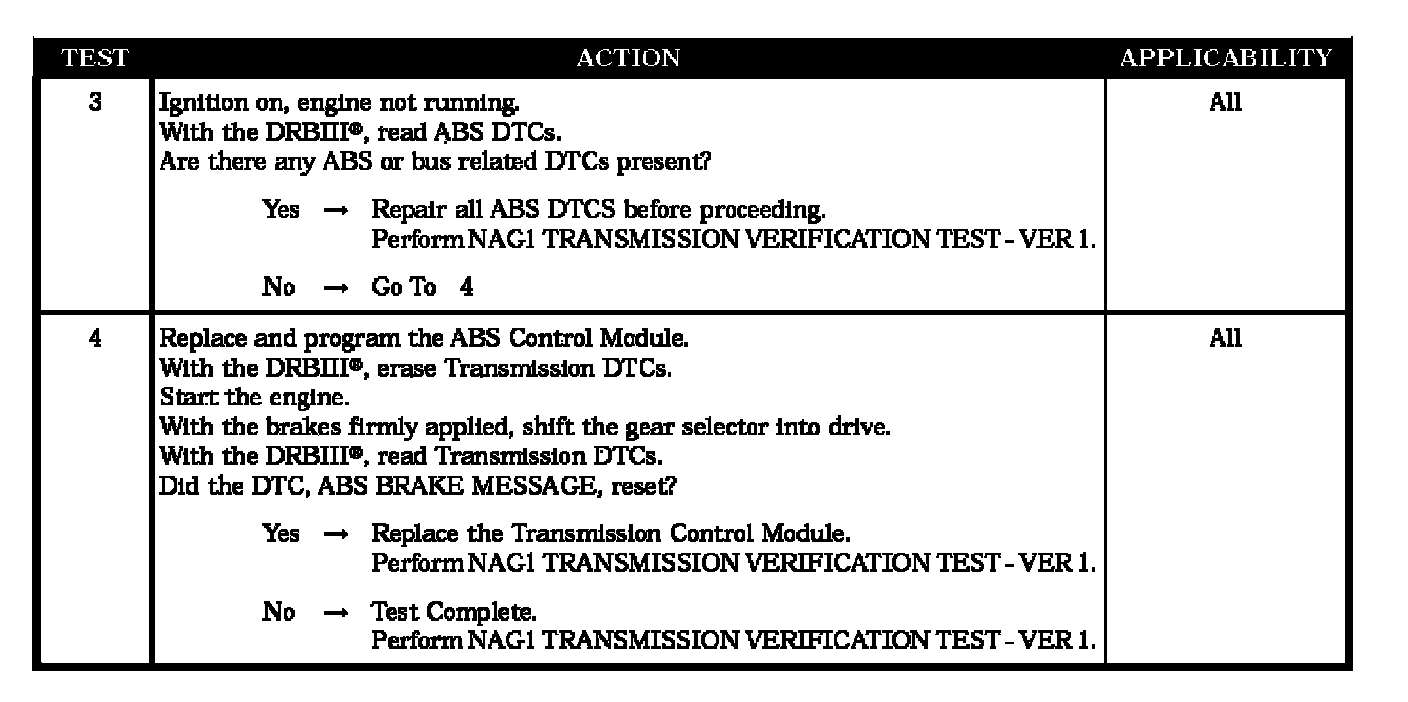

- ABS DTCS PRESENT
- ABS - BRAKE MESSAGE ERROR
- TCM - BRAKE MESSAGE ERROR
