2-3 Solenoid Circuit Shorted to Ground
Symptom List:2-3 SOLENOID CIRCUIT
2-3 SOLENOID CIRCUIT SHORT TO GROUND

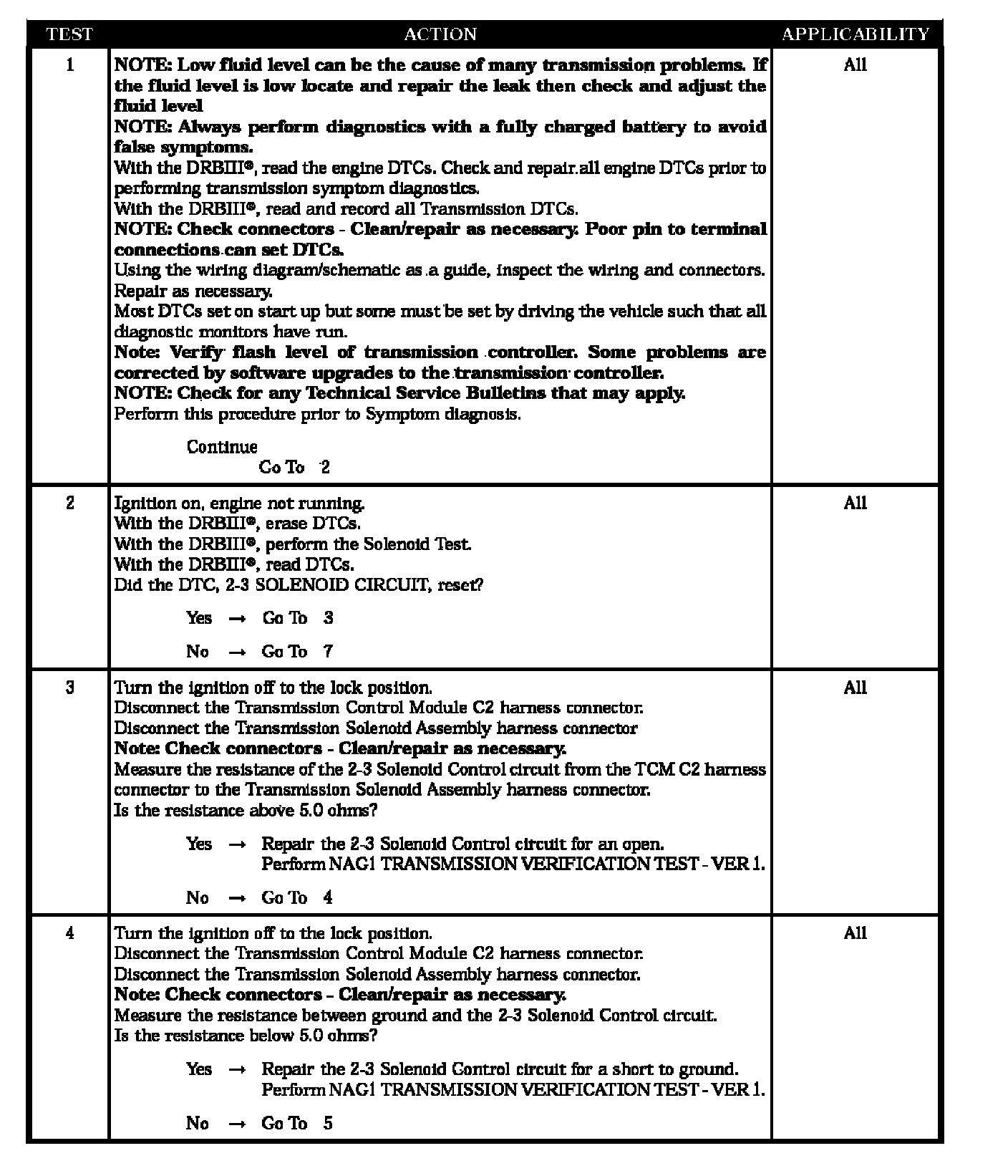

Test Note: All symptoms listed above are diagnosed using the same tests. The title for the tests will be 2-3 SOLENOID CIRCUIT.
When Monitored and Set Condition
2-3 SOLENOID CIRCUIT
When Monitored: Always monitored with system active at each ignition cycle.
Set Condition: If the TCM detects a short to ground or battery on the solenoid control circuit, shorted solenoid, open solenoid, or an open or shorted solenoid control circuit driver in the TCM.
2-3 SOLENOID CIRCUIT SHORT TO GROUND
When Monitored: Always monitored with system active at each ignition cycle.
Set Condition: If the TCM detects a short to ground or battery on the solenoid control circuit, shorted solenoid, open solenoid, or an open or shorted solenoid control circuit driver in the TCM.
POSSIBLE CAUSES
- INTERMITTENT WIRING AND CONNECTORS
- 2-3 SOLENOID CONTROL CIRCUIT OPEN
- 2-3 SOLENOID CONTROL CIRCUIT SHORT TO GROUND
- 2-3 SOLENOID CONTROL CIRCUIT SHORT TO OTHER CIRCUITS
- 2-3 SOLENOID
- TCM - 2-3 SOLENOID CIRCUIT
