RR Wheel Spin CAN Messages Not Valid

Symptom:
RR WHEEL SPIN CAN MESSAGE NOT VALID

POSSIBLE CAUSES
- ABS WHEEL SPEED SENSOR DTCS PRESENT
- ABS CONTROL MODULE
- SHIFT LEVER ASSEMBLY

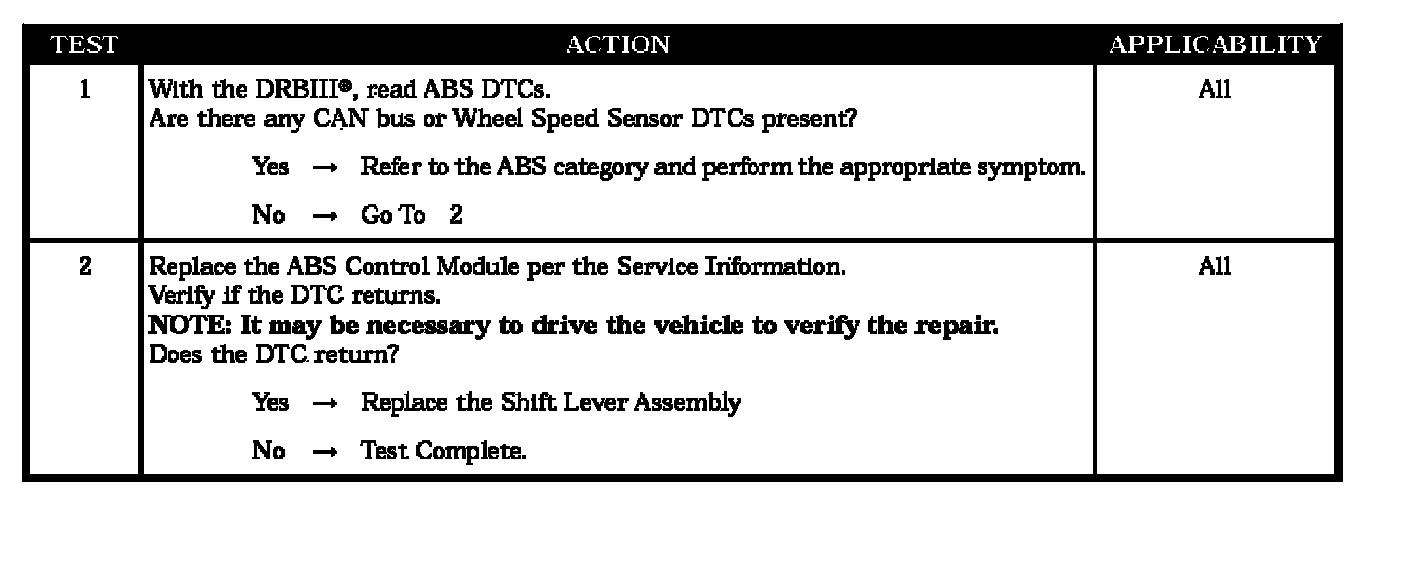

Test 1 - Test 2:
