Home >> Freightliner Truck >> 2006 >> Sprinter 3500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Transmission Control System >> Shift Lever Assembly >> Incorrect CAN Messages From ABS

Incorrect CAN Messages From ABS

Symptom:
INCORRECT CAN MESSAGE FROM ABS

POSSIBLE CAUSES
- ABS - INTERNAL
- SLA - INTERNAL

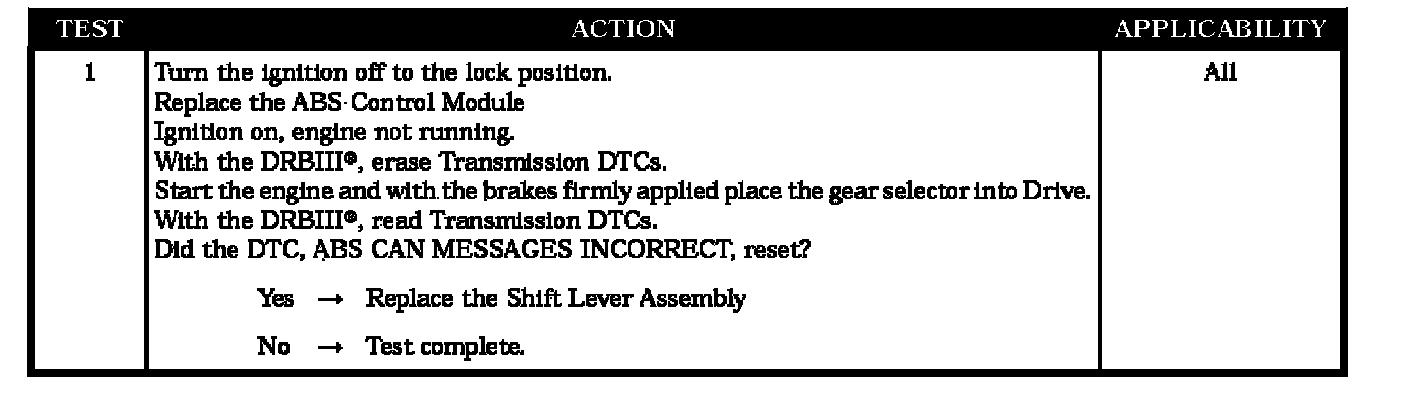

Test 1:
