CAN Bus Circuit

Symptom:
CAN BUS CIRCUIT

POSSIBLE CAUSES
- CAN COMMUNICATION FAILURE
- CAN BUS (+) OR (-) OPEN
- SHIFT LEVER ASSEMBLY

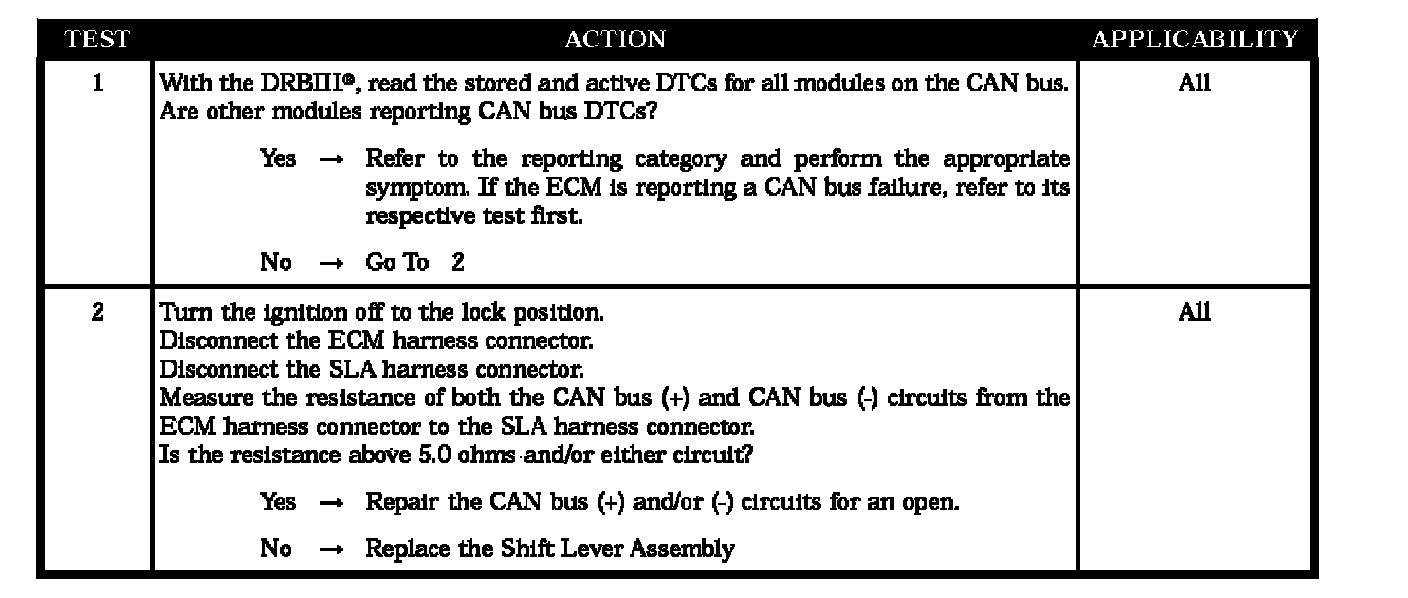

Test 1 - Test 2:
