Backup Lamp Supply Circuit Open

Symptom
BACKUP LAMP SUPPLY CIRCUIT OPEN

POSSIBLE CAUSES
- FUSED IGNITION SWITCH OUTPUT OPEN
- SHIFT LEVER ASSEMBLY

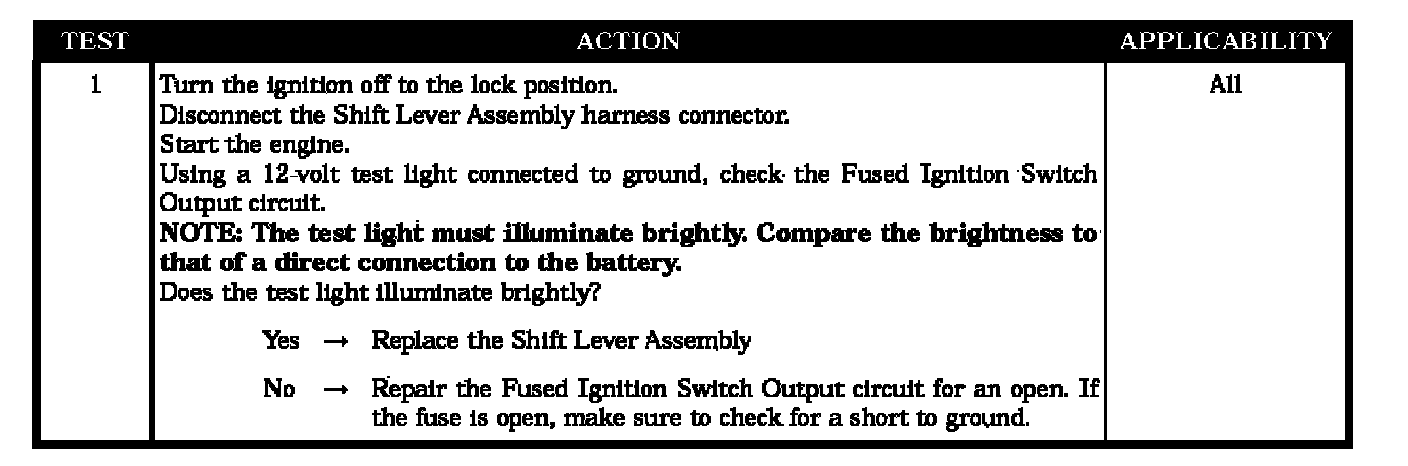

Test 1:
