Backup Lamp Circuit Shorted to Ground

Symptom:
BACKUP LAMP CKT SHORT TO GROUND

POSSIBLE CAUSES
- BACKUP LAMP CIRCUIT SHORT TO GROUND
- SHIFT LEVER ASSEMBLY
- SHIFT LEVER ASSEMBLY

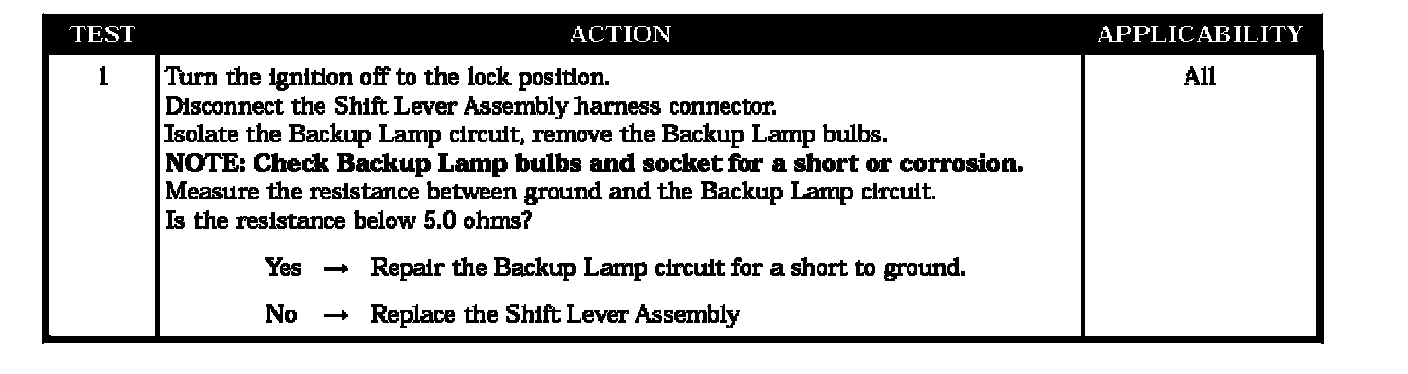

Test 1:
