Loss of Ignition Run - Start

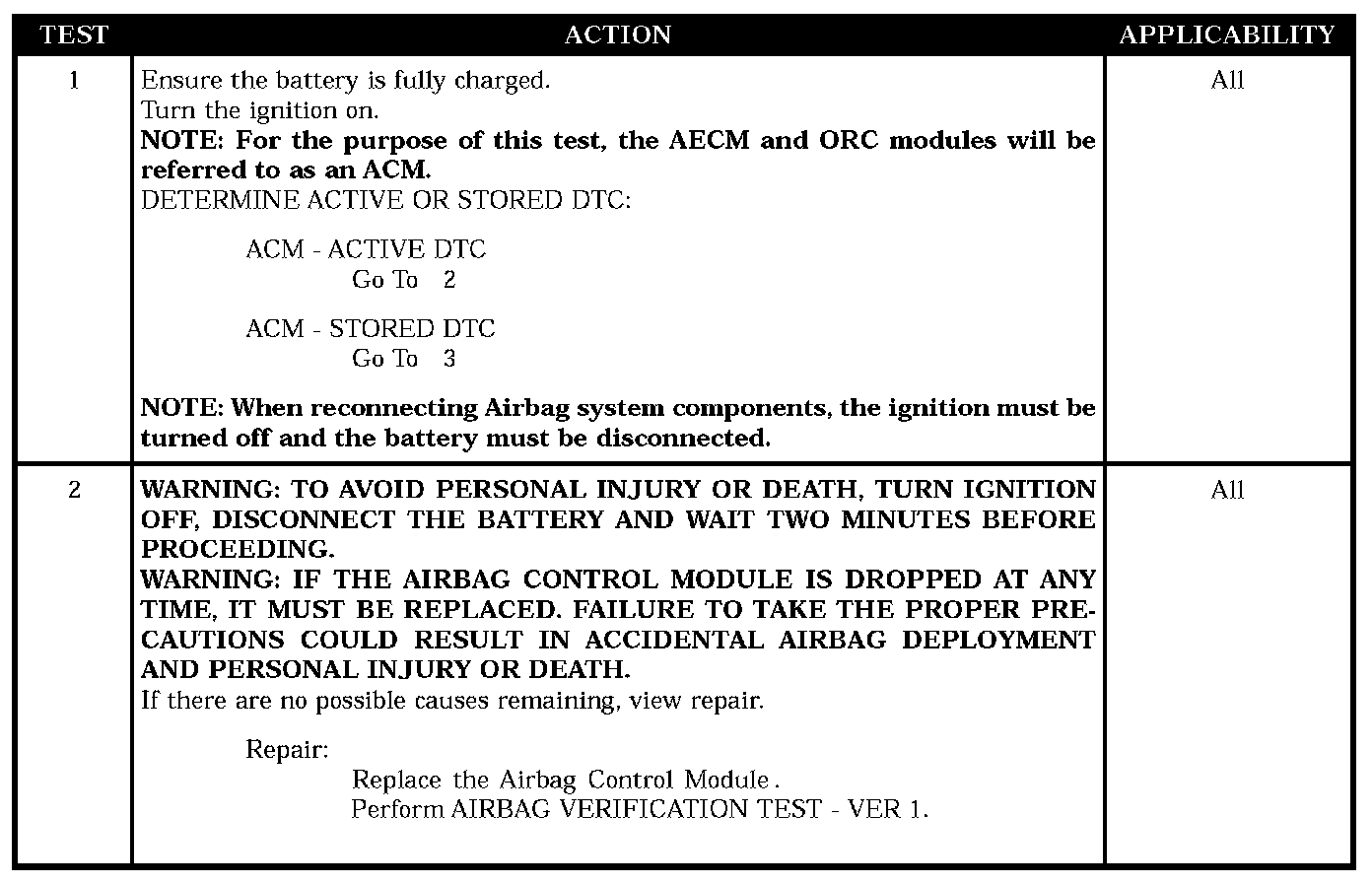

Test 1 - Test 2:

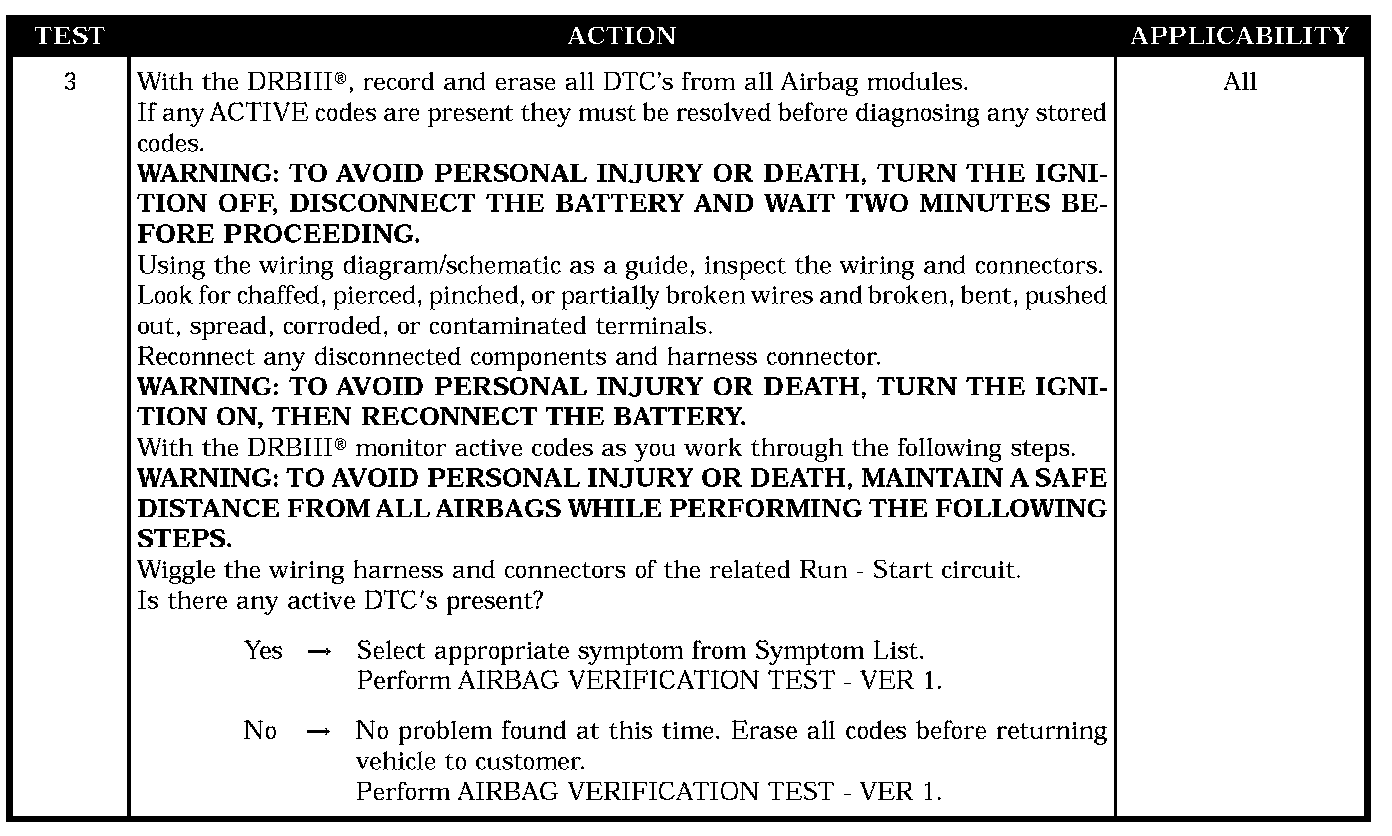

Test 3:

SYMPTOM
LOSS OF IGNITION RUN - START

WHEN MONITORED
With the ignition in the Run-Start position the ACM monitors the Fused Ignition Switch Output Run-Start circuit for proper system voltage.

SET CONDITION
If the voltage on the Fused Ignition Switch Output Run-Start circuit drops below approximately 6.0 volts, the code will set and all communicate with the DRB will stop. The DRB will report a NO RESPONSE from the ACM.

POSSIBLE CAUSES
- ACM, loss of ignition run - start voltage
- Intermittent run - start condition
- Active code present
