Airbag Warning Indicator - Driver Low

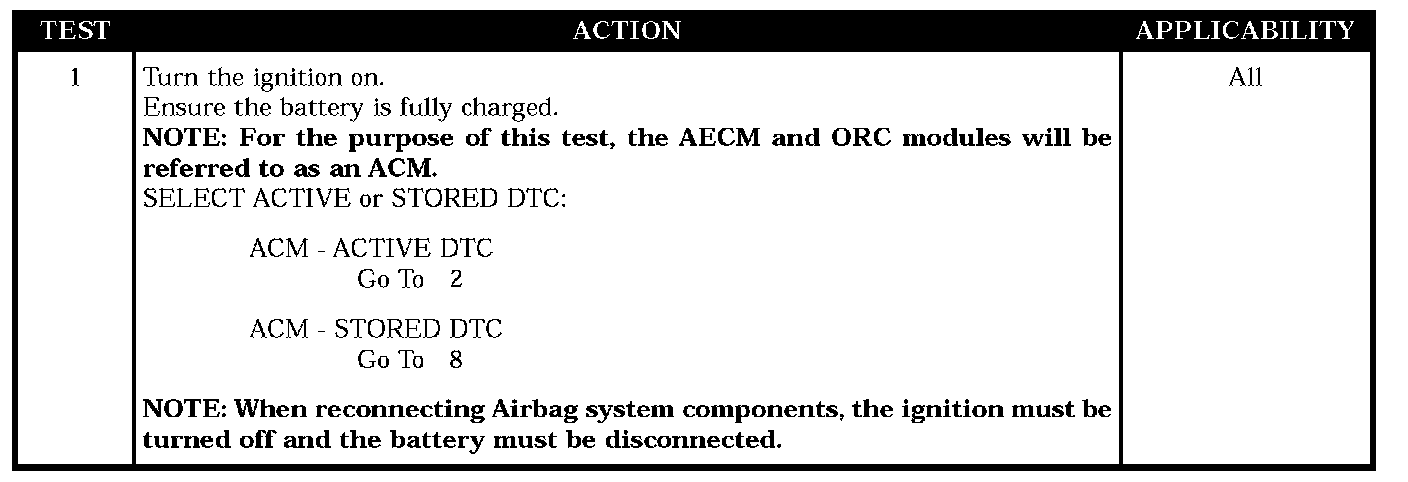

Test 1:

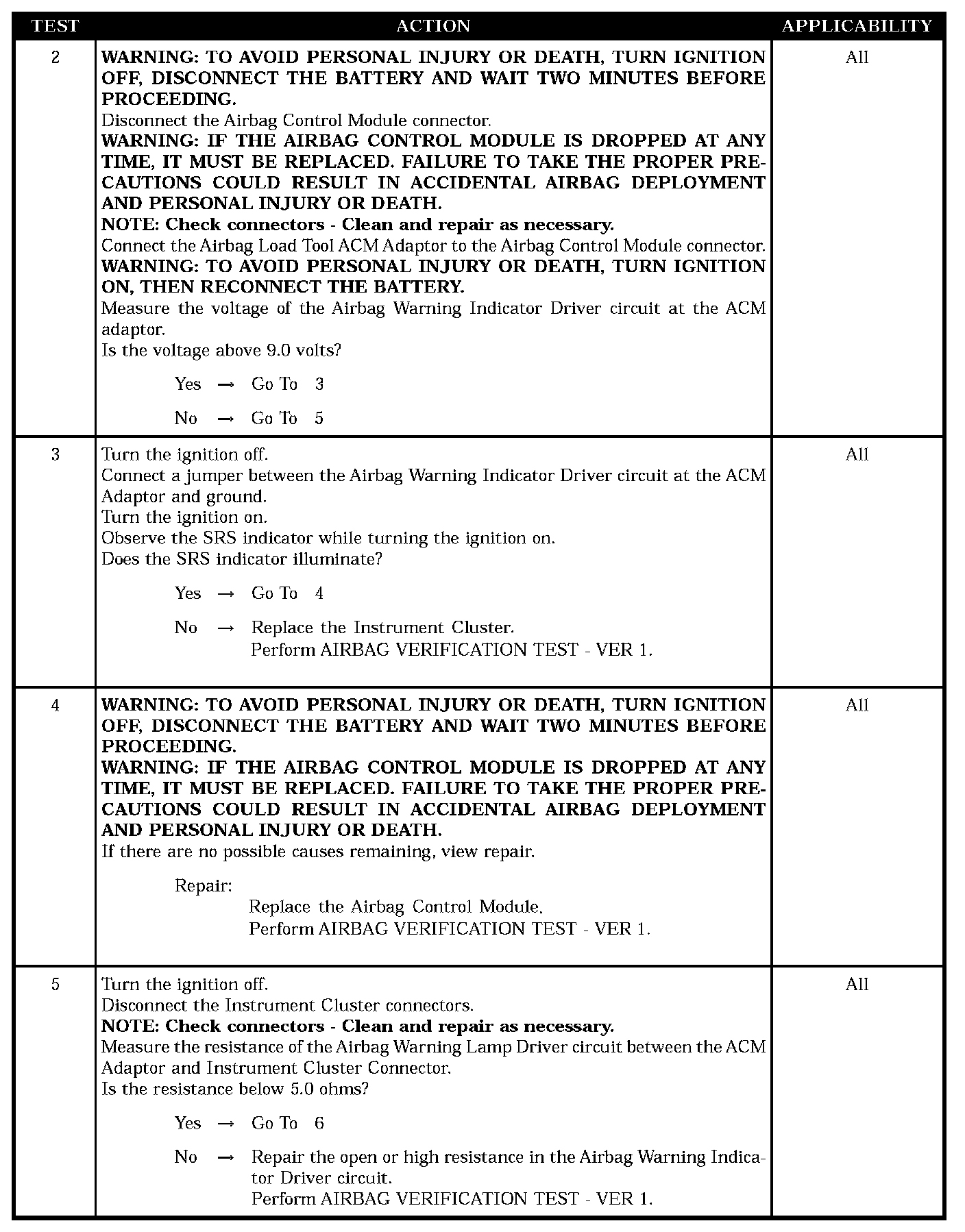

Test 2 - Test 5:

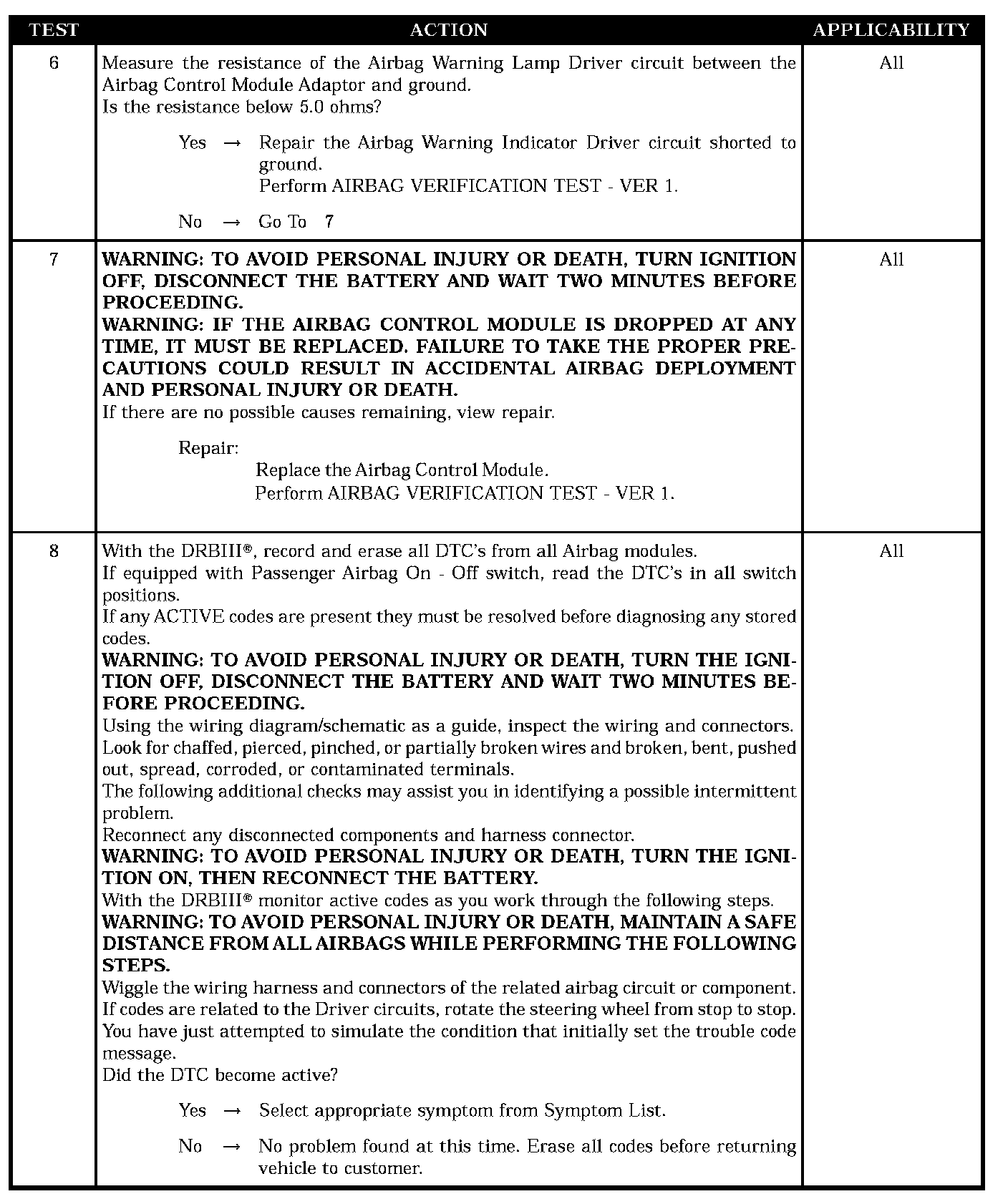

Test 6 - Test 8:

SYMPTOM
AIRBAG WARNING INDICATOR - DRIVER LOW

WHEN MONITORED
With ignition on the ACM monitors the Airbag Warning Indicator Driver circuit for an open, high resistance, or short to ground.

SET CONDITION
This DTC will set if the ACM detects a short to ground or open Airbag Warning Indicator Driver circuit.

POSSIBLE CAUSES
- Cluster SRS indicator open
- ACM, airbag warning lamp driver circuit open
- Open airbag warning indicator driver
- ACM, warning indicator circuit low
- Airbag warning indicator driver short to ground
- Stored code or intermittent condition
- Active code present
