Airbag Warning Indicator - Driver High

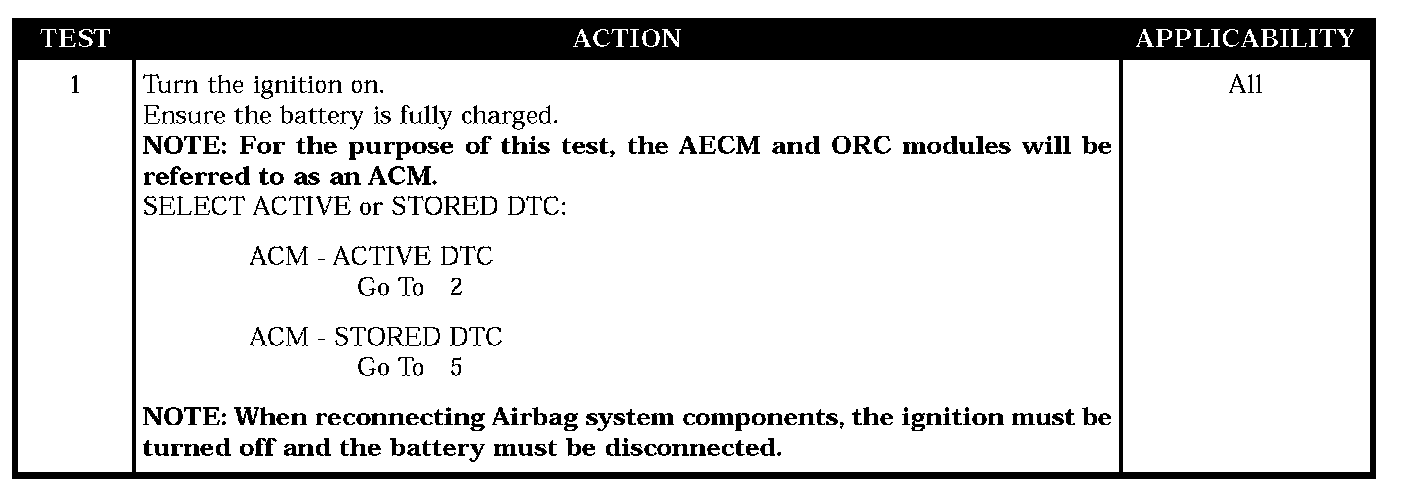

Test 1:

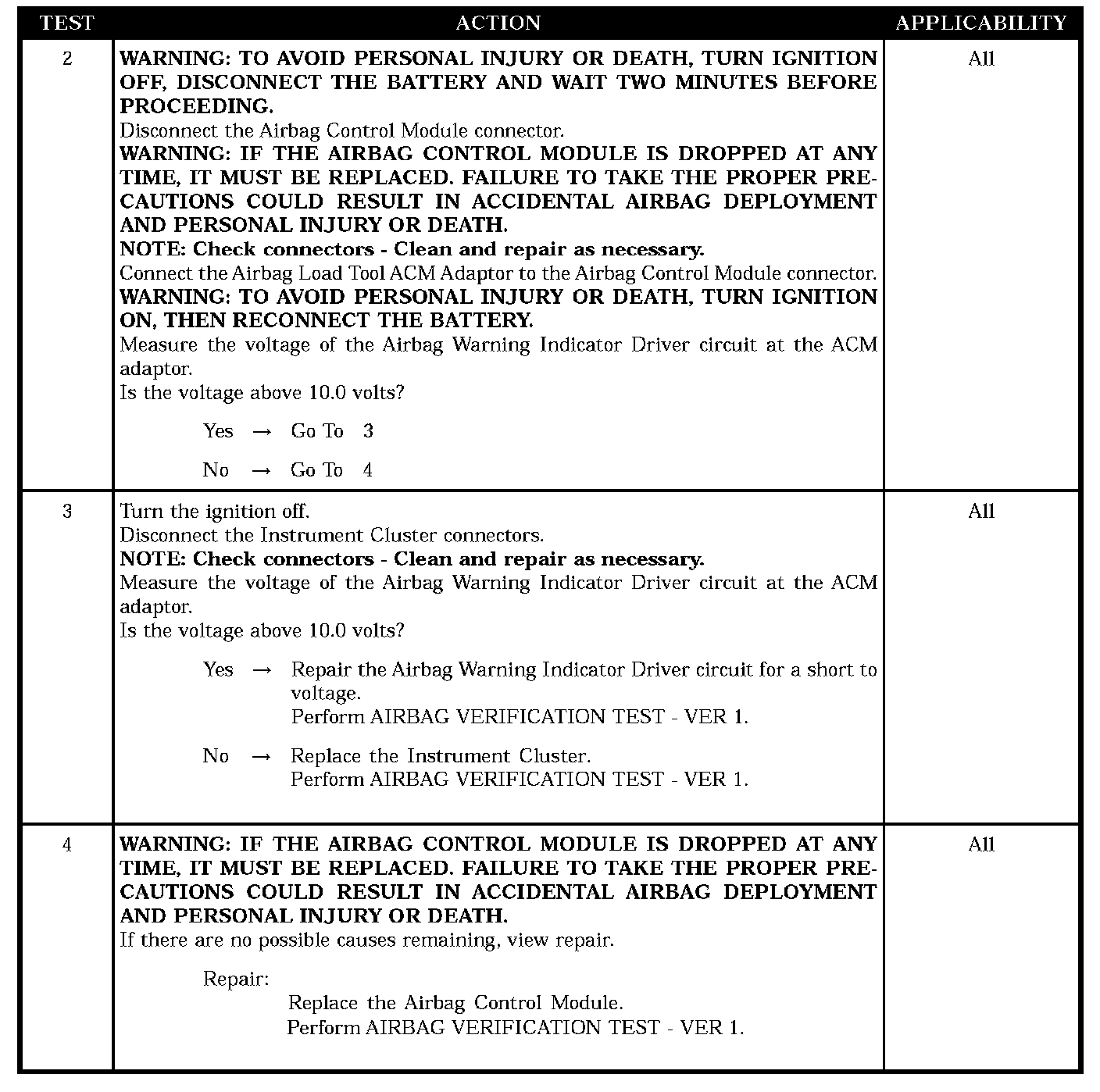

Test 2 - Test 4:

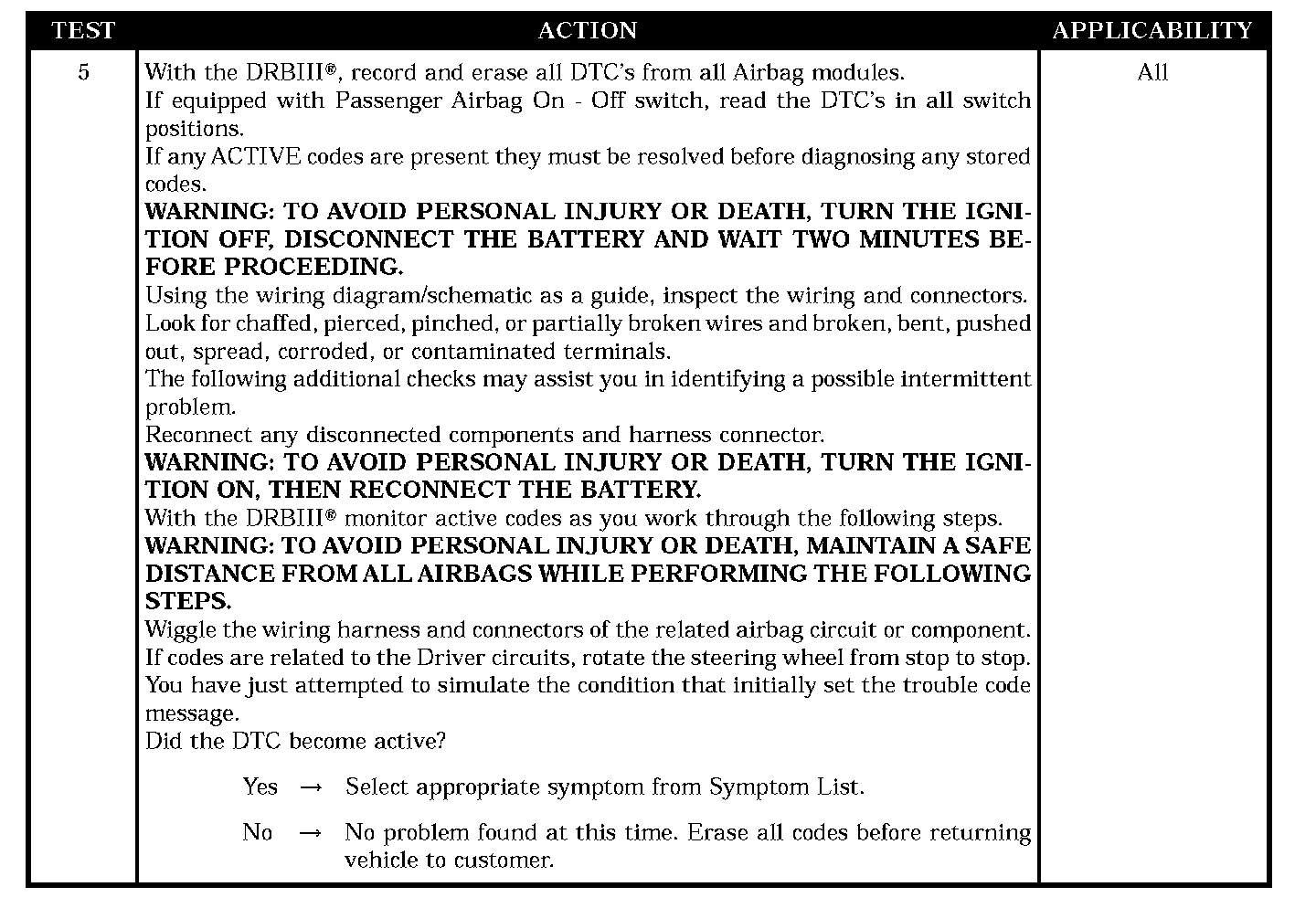

Test 5:

SYMPTOM
AIRBAG WARNING INDICATOR - DRIVER HIGH

WHEN MONITORED
With ignition on the ACM monitors the Airbag Warning Indicator Driver circuit for a short to battery voltage.

SET CONDITION
This DTC will set if the ACM detects voltage on the Airbag Warning Indicator Driver circuit.

POSSIBLE CAUSES
- ACM, airbag warning lamp driver circuit shorted to battery
- Cluster SRS indicator shorted to battery
- Cluster SRS indicator shorted to battery
- Stored code or intermittent condition
- Active code present
