The ACM Has Unlocked the Doors

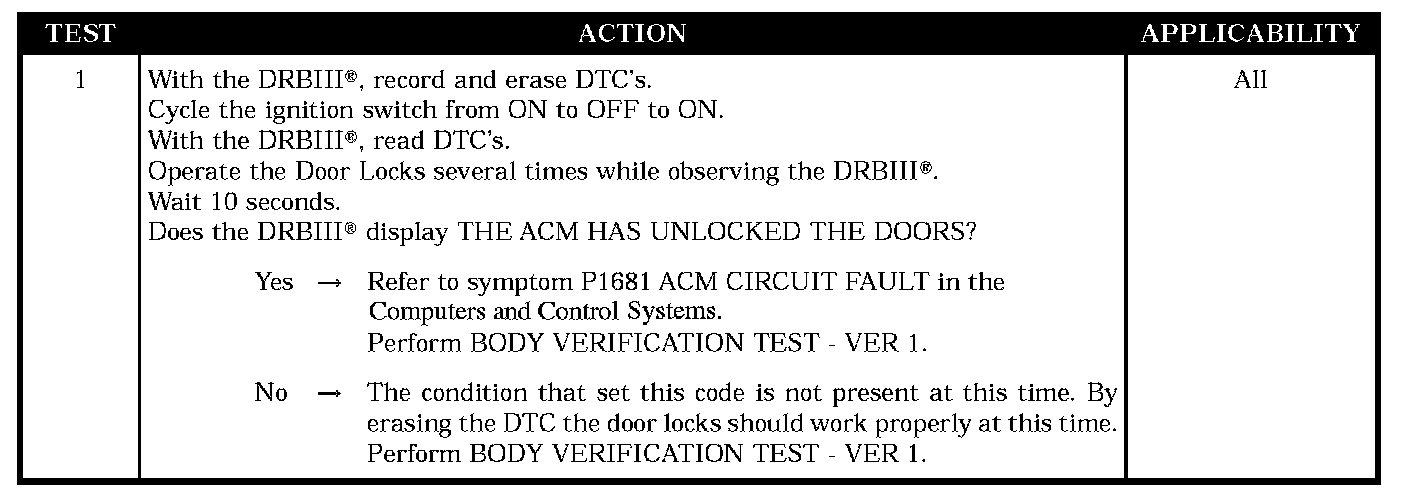

Test 1:

SYMPTOM
THE ACM HAS UNLOCKED THE DOORS

WHEN MONITORED
Whenever the battery is above 10.0 volts and the module is connected.

SET CONDITION
Whenever the CTM senses battery voltage for over 50ms on the Enhanced Accident Report Driver circuit, this code will set. If the ACM senses a near deployment impact (not enough to fire the airbag) this code may set.

POSSIBLE CAUSES
- DTC present
- Powertrain DTC
