RKE Interface Circuit Shorted to Ground - SKREEM

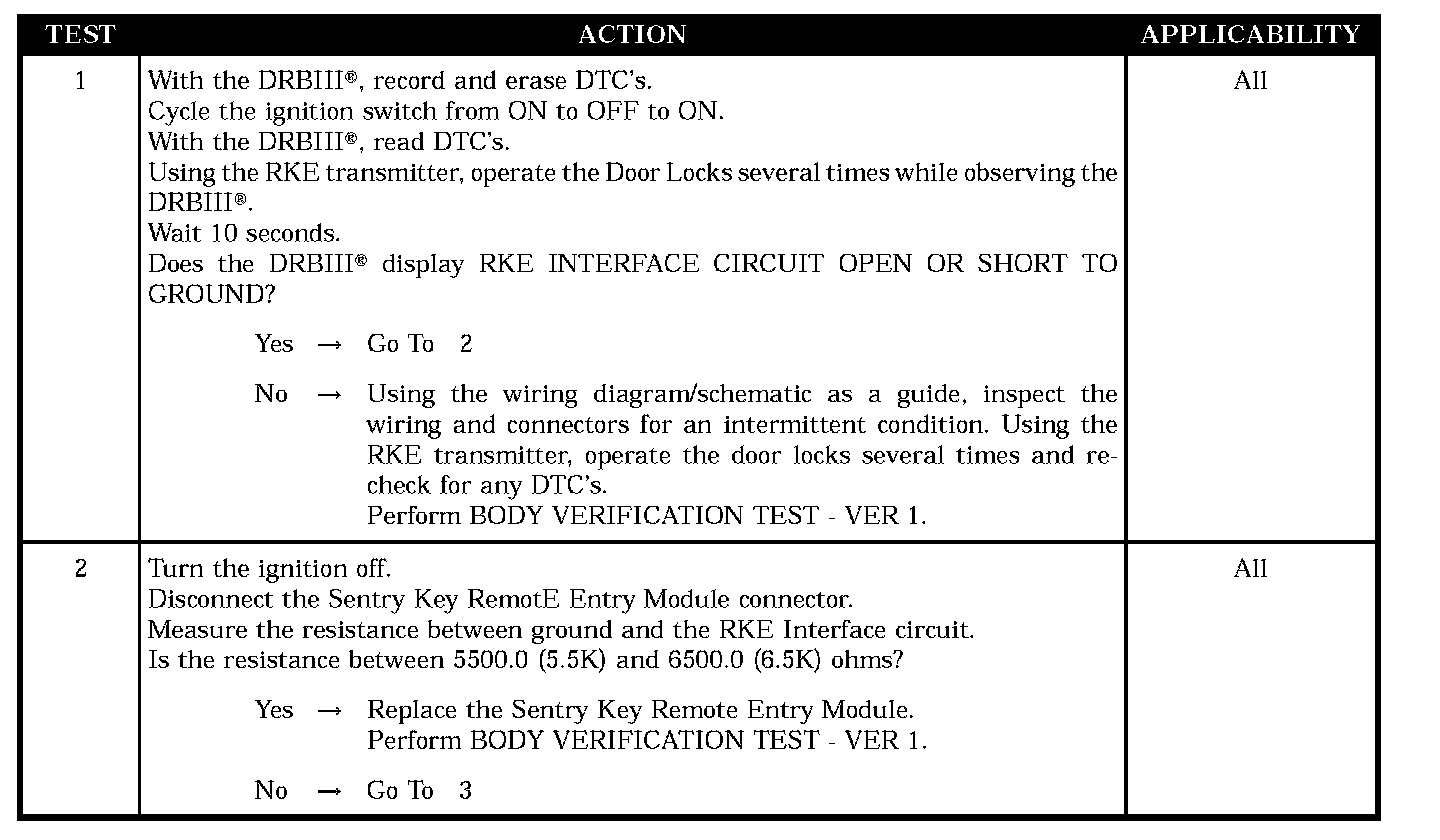

Test 1 - Test 2:

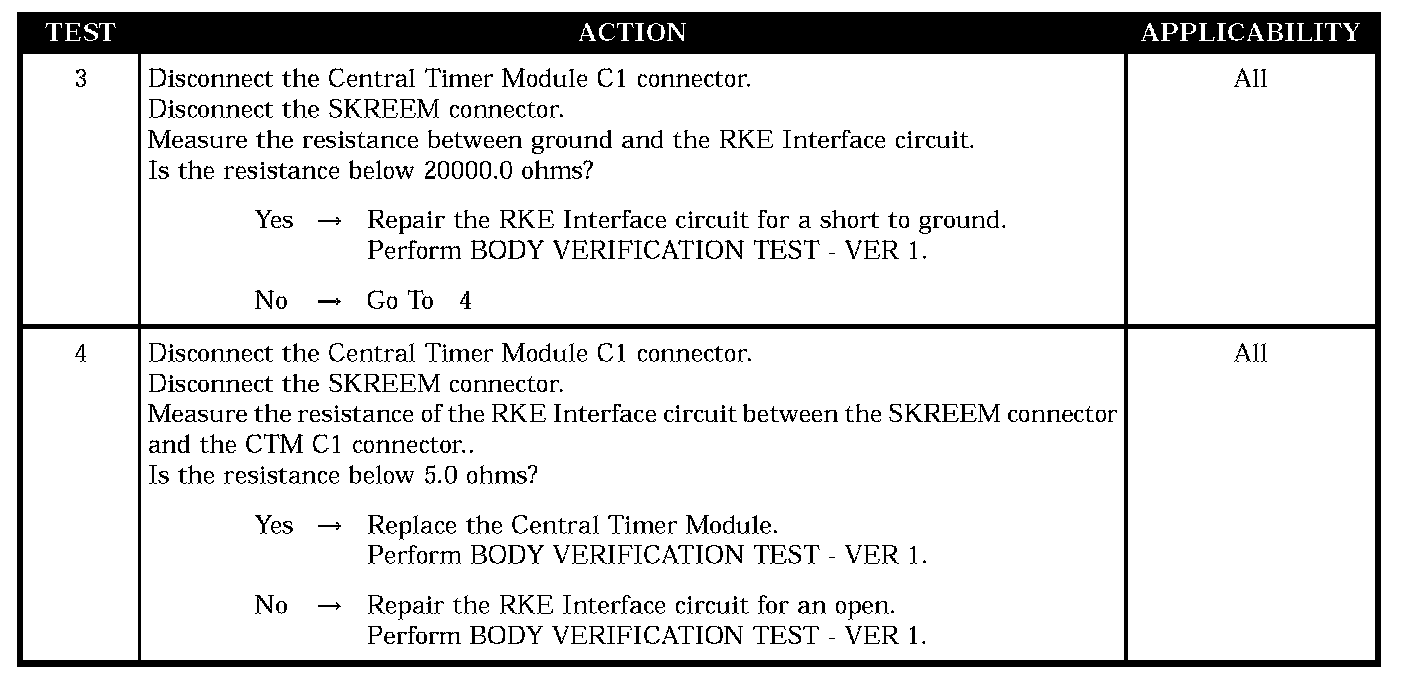

Test 3 - Test 4:

SYMPTOM
RKE INTERFACE CIRCUIT SHORT TO GROUND - SKREEM

WHEN MONITORED
Whenever the battery voltage is above 10.0 volts and the module is connected.

SET CONDITION
If the SKREEM monitors a resistance below 4000.0 ohms or over 9000.0 ohms for over 30 seconds, this code will set.

POSSIBLE CAUSES
- DTC present
- Sentry key remote entry module shorted
- RKE interface wire shorted
- RKE interface wire open
- Central timer module failure
