RKE Interface Circuit Shorted to Ground - CTM

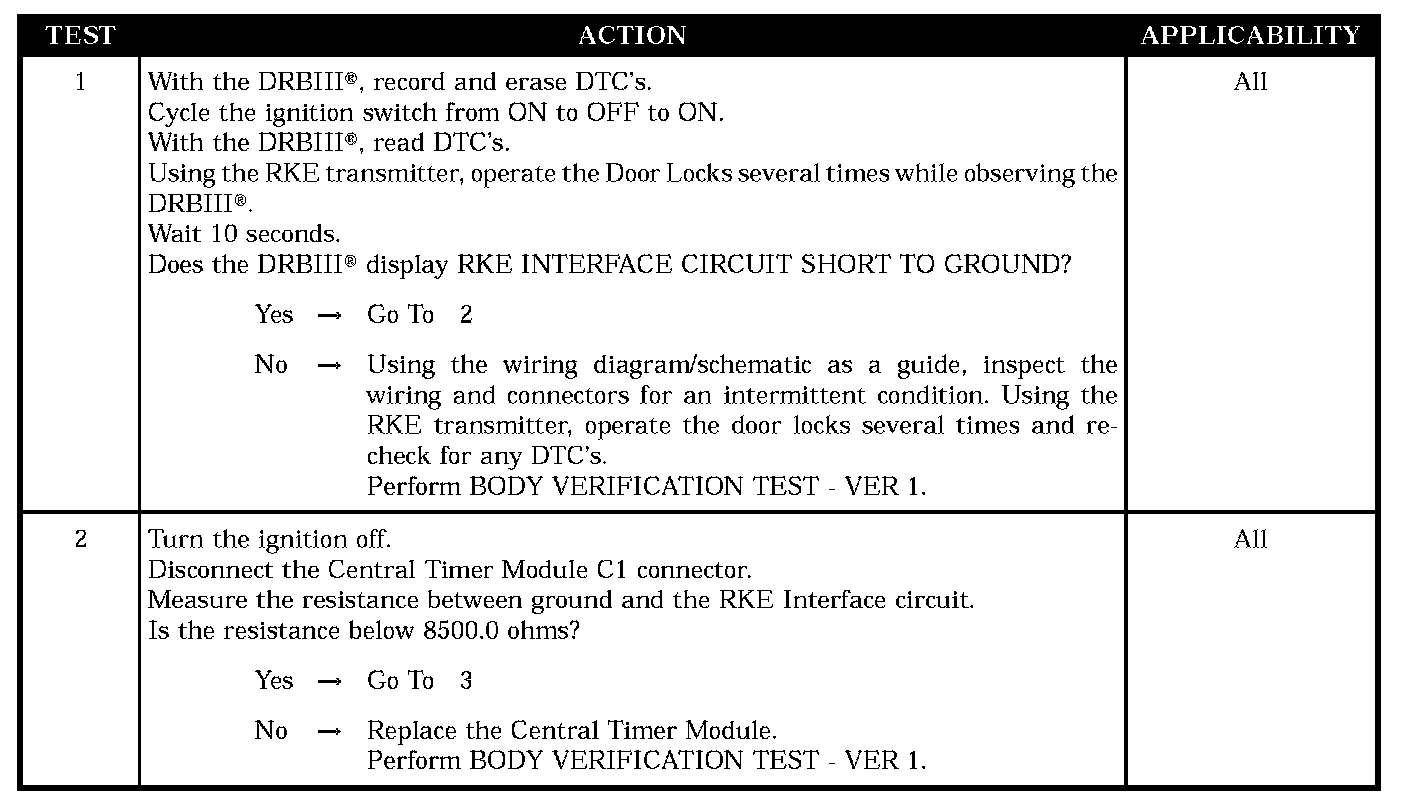

Test 1 - Test 2:

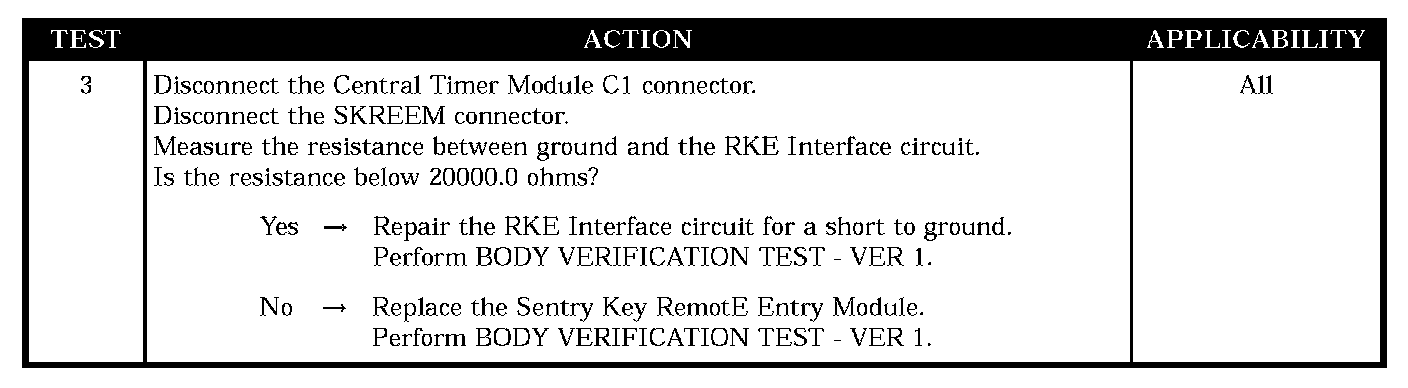

Test 3:

SYMPTOM
RKE INTERFACE CIRCUIT SHORT TO GROUND - CTM

WHEN MONITORED
Whenever the battery voltage is above 10.0 volts and the module is connected.

SET CONDITION
If the CTM monitors a resistance below 7500.0 ohms for over 1 minute, this code will set.

POSSIBLE CAUSES
- DTC present
- Central timer module shorted
- RKE interface wire shorted
- SKREEM shorted
