Driver Door Ajar Indicator Driver Circuit Shorted to Ground

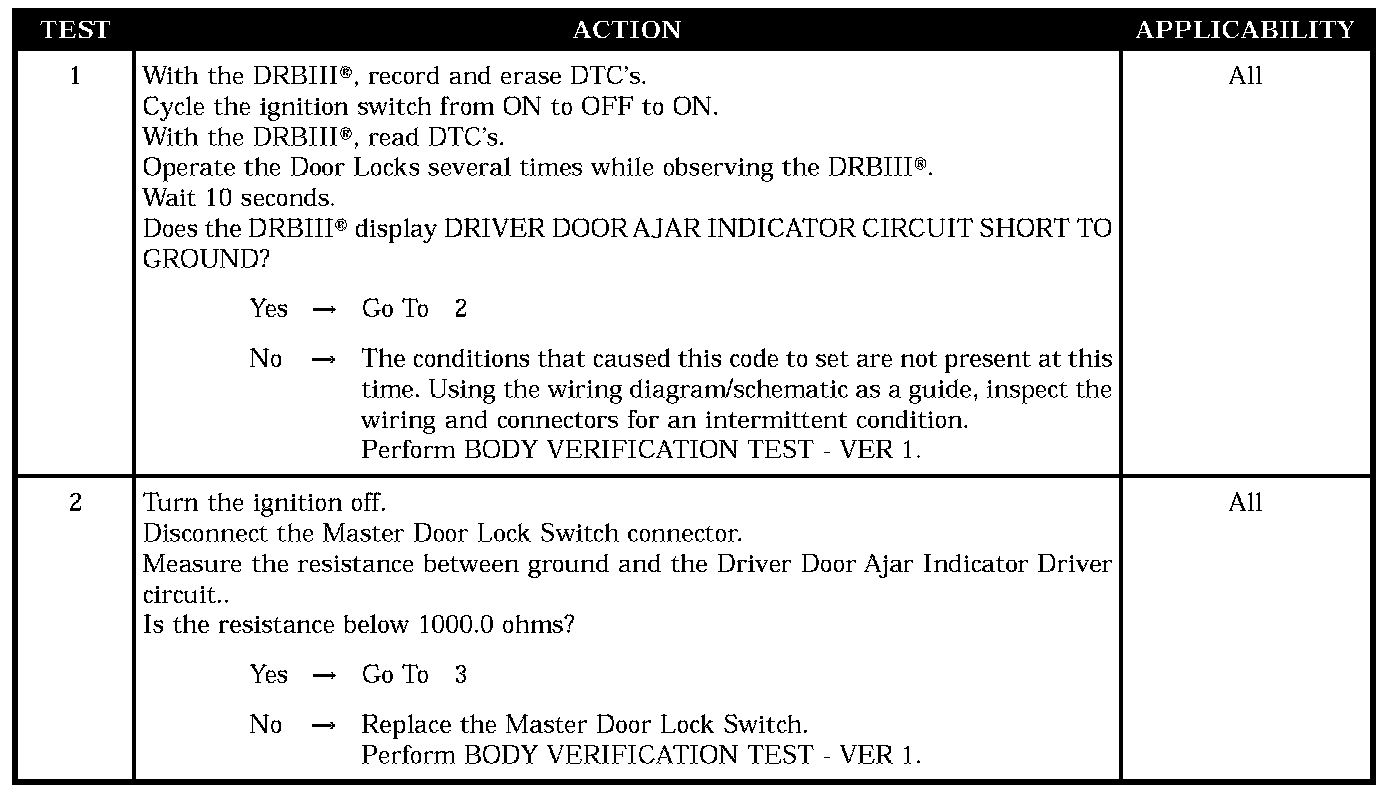

Test 1 - Test 2:

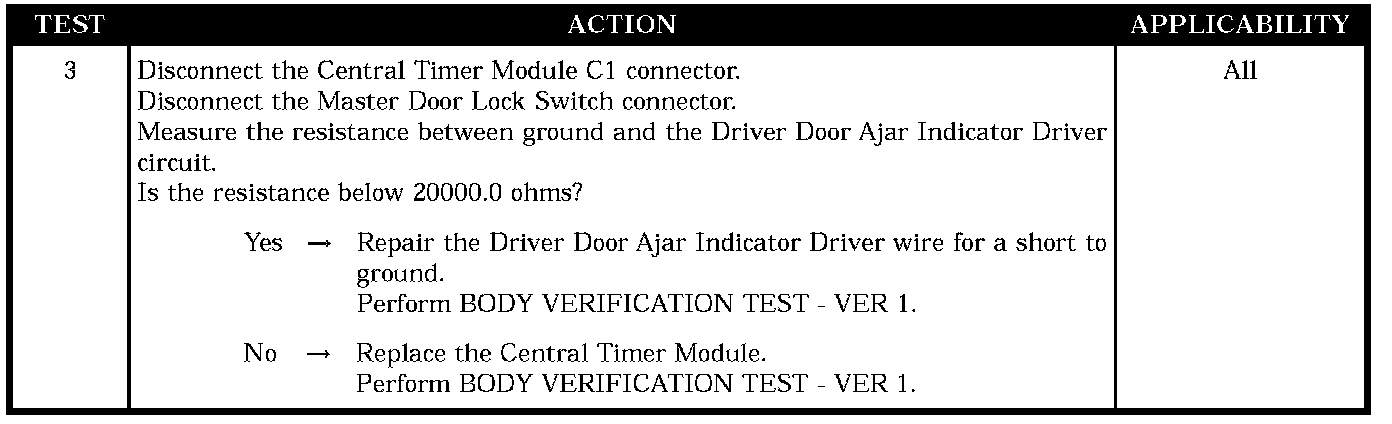

Test 3:

SYMPTOM
DRIVER DOOR AJAR INDICATOR DRIVER CIRCUIT SHORT TO GROUND

WHEN MONITORED
Whenever the battery is above 10.0 volts and the module is connected.

SET CONDITION
Whenever the CTM senses resistance on the Driver Door Ajar Indicator Driver circuit for over 30 seconds, this code will set.

POSSIBLE CAUSES
- DTC present
- Master door lock switch shorted
- Central timer module shorted
- Driver door ajar indicator driver wire short to ground
