No CAN Communication With TCM

Test 1 - Test 4:

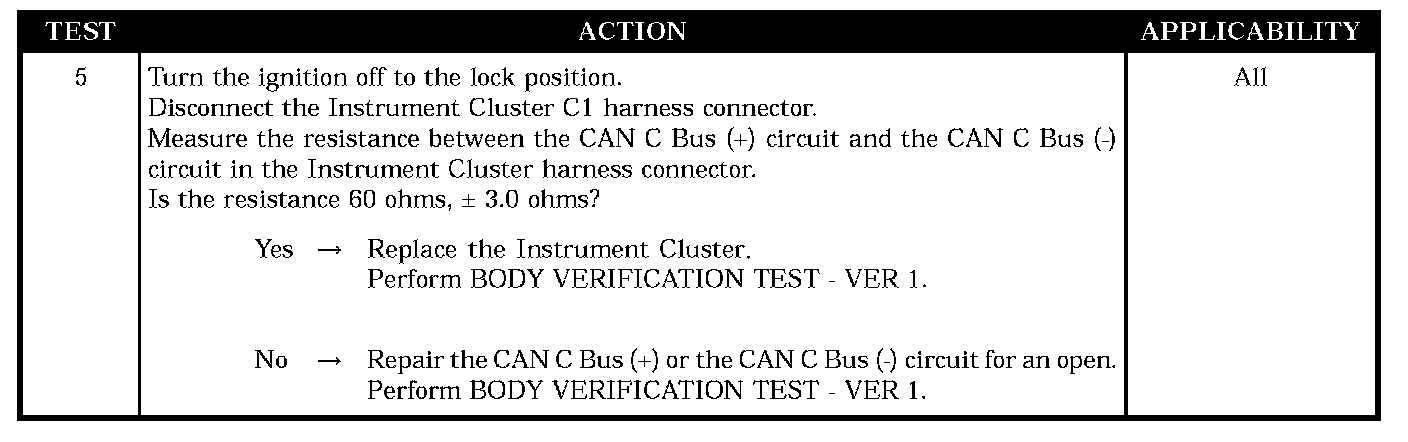

Test 5:

SYMPTOM
NO CAN COMMUNICATION WITH TCM

POSSIBLE CAUSES
- DTC present
- Open can circuits at instrument cluster
- Instrument cluster
- Check powers and grounds to the affected module
- Open can circuits at TCM
- TCM
