No CAN Communication With ECM

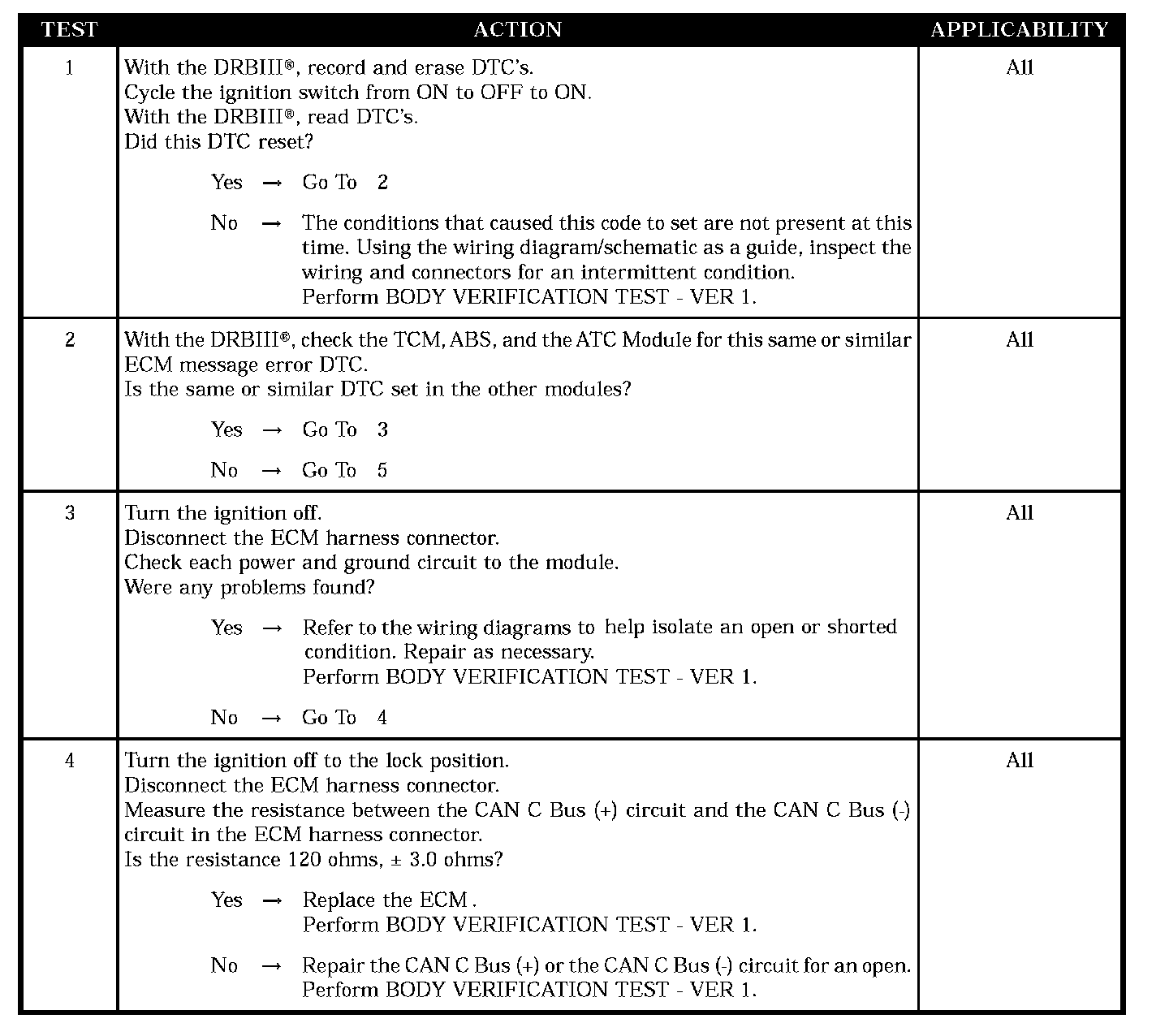

Test 1 - Test 4:

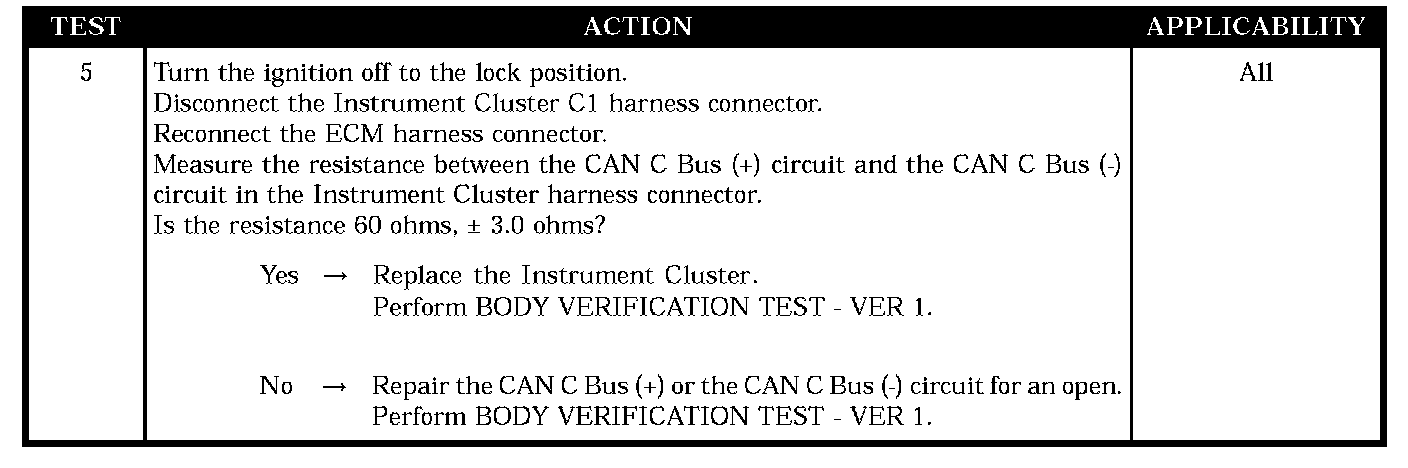

Test 5:

SYMPTOM
NO CAN COMMUNICATION WITH ECM

POSSIBLE CAUSES
- DTC present
- Open can circuits at instrument cluster
- Instrument cluster
- Check powers and grounds to the affected module
- Open can circuits at ECM
- ECM
