Instrument Cluster Internal Failure B1053
Instrument Cluster Internal Failure B1053

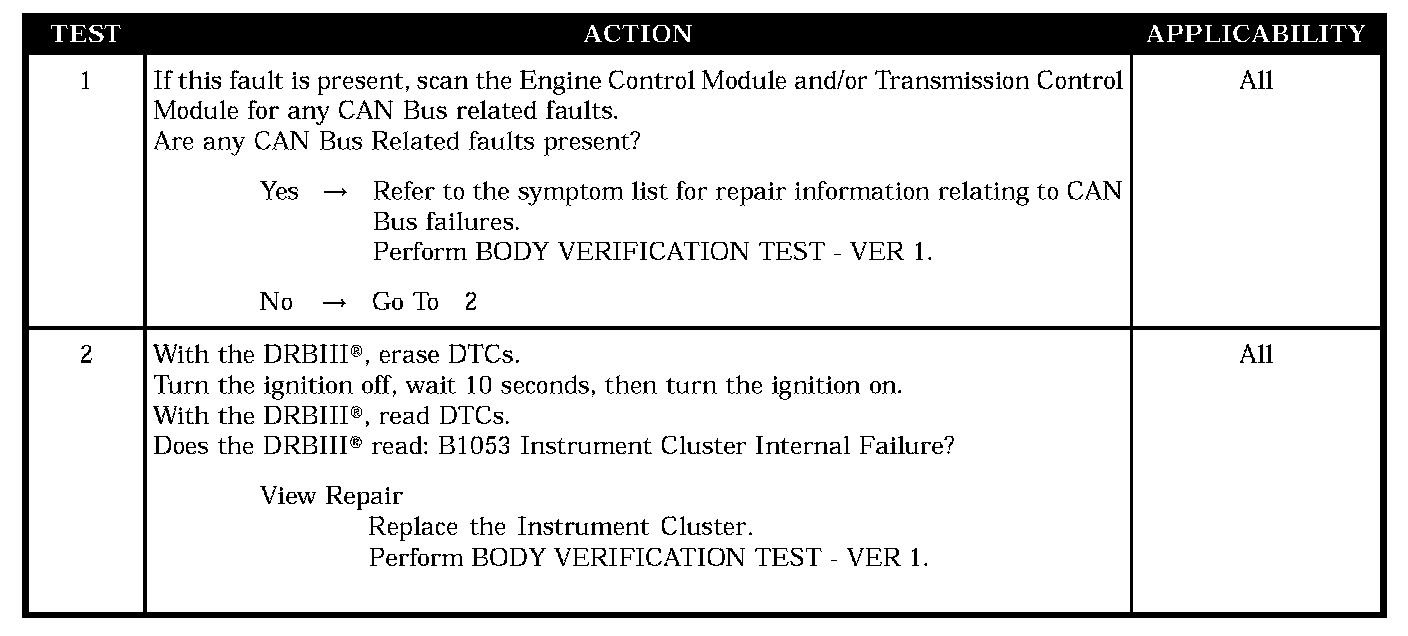

Test 1 - Test 2:
SYMPTOM
INSTRUMENT CLUSTER INTERNAL FAILURE B1053
POSSIBLE CAUSES
-
Can bus failure
-
Instrument cluster
