Fuel Level Sensor Shorted to Ground

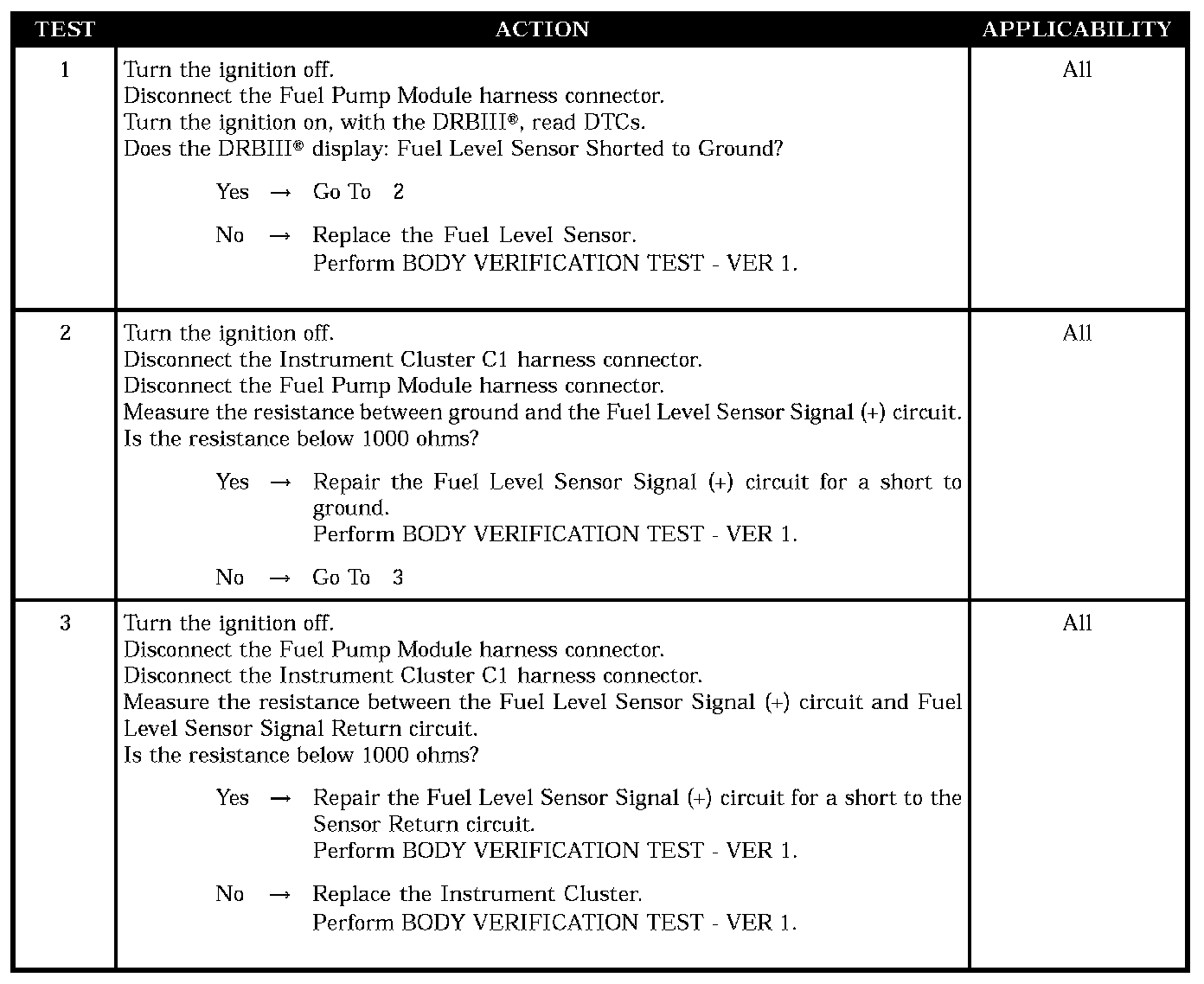

Test 1 - Test 3:

SYMPTOM
FUEL LEVEL SENSOR SHORT TO GROUND

POSSIBLE CAUSES
- Fuel level sensor
- Fuel level sensor circuits shorted together
- instrument cluster
- Fuel level sensor signal (+) short to ground
