Fuel Level Sensor Open/Shorted to Battery

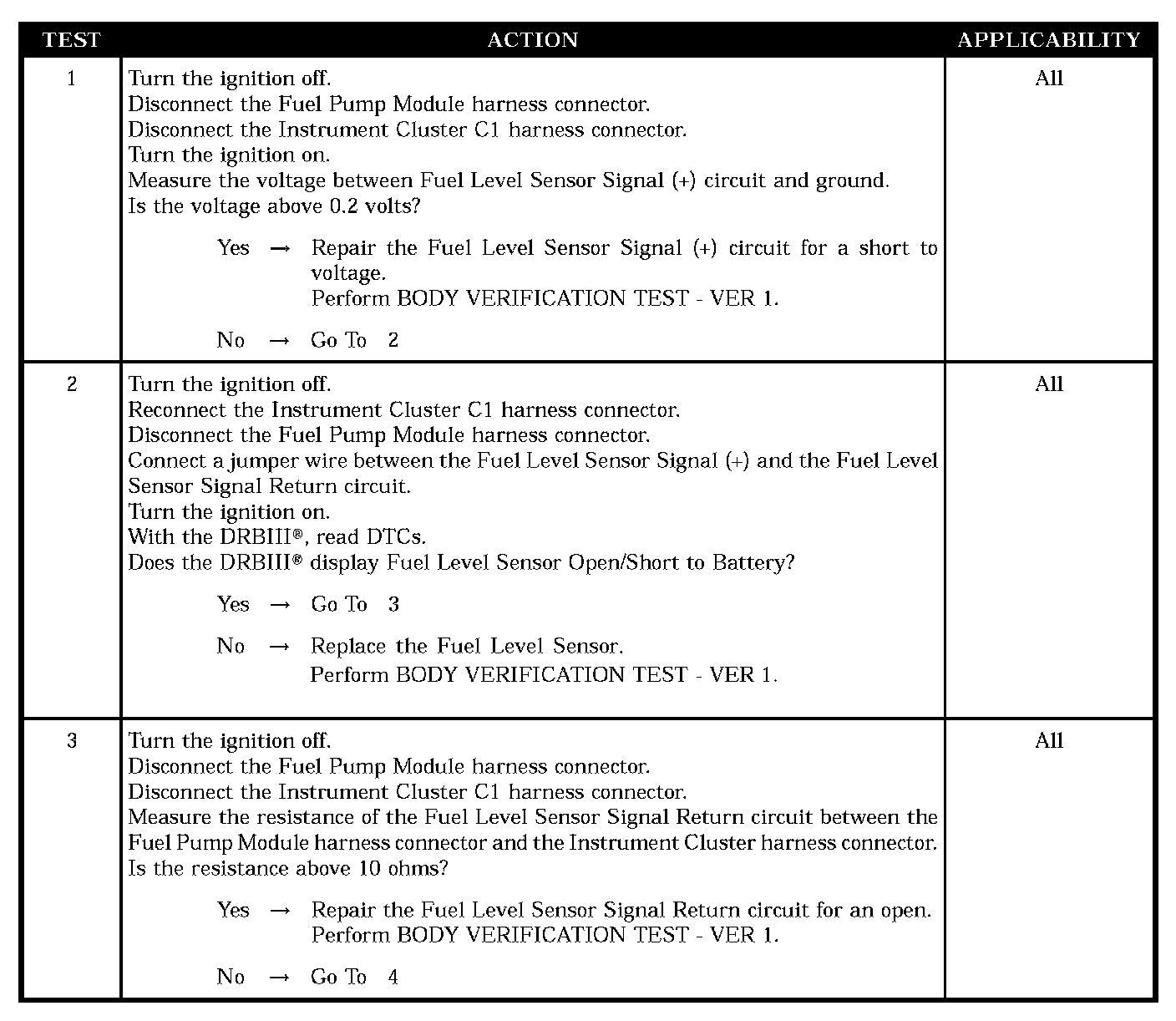

Test 1 - Test 3:

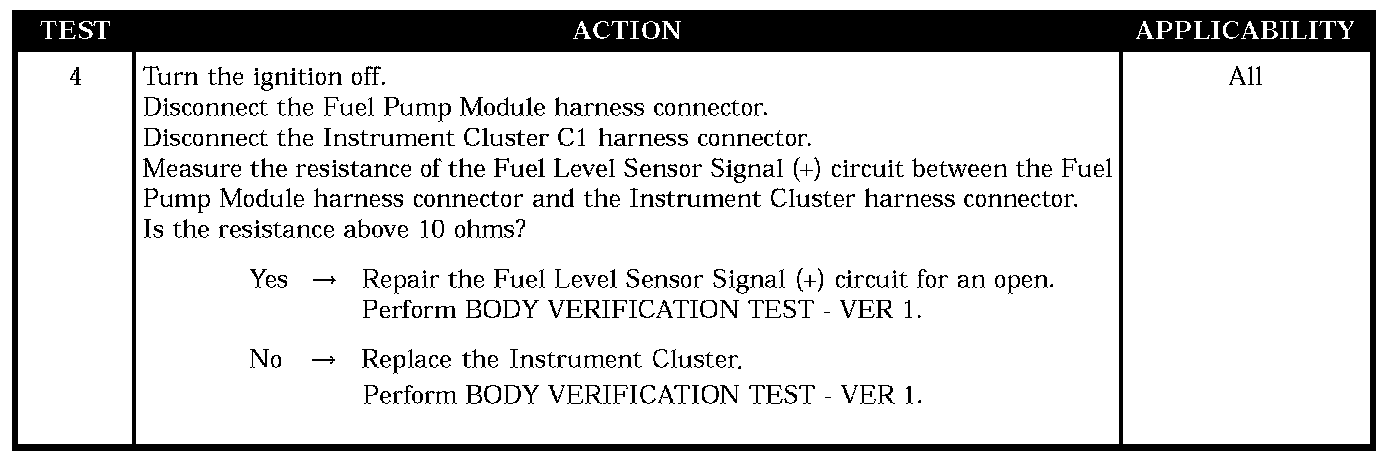

Test 4:

SYMPTOM
FUEL LEVEL SENSOR OPEN/SHORT TO BATTERY

POSSIBLE CAUSES
- Fuel level sensor
- Fuel level sensor signal (+) circuit short to voltage
- Fuel level sensor signal return circuit open
- Fuel level sensor signal (+) circuit open
- Instrument cluster
