Ambient Temp Sensor Shorted to Ground

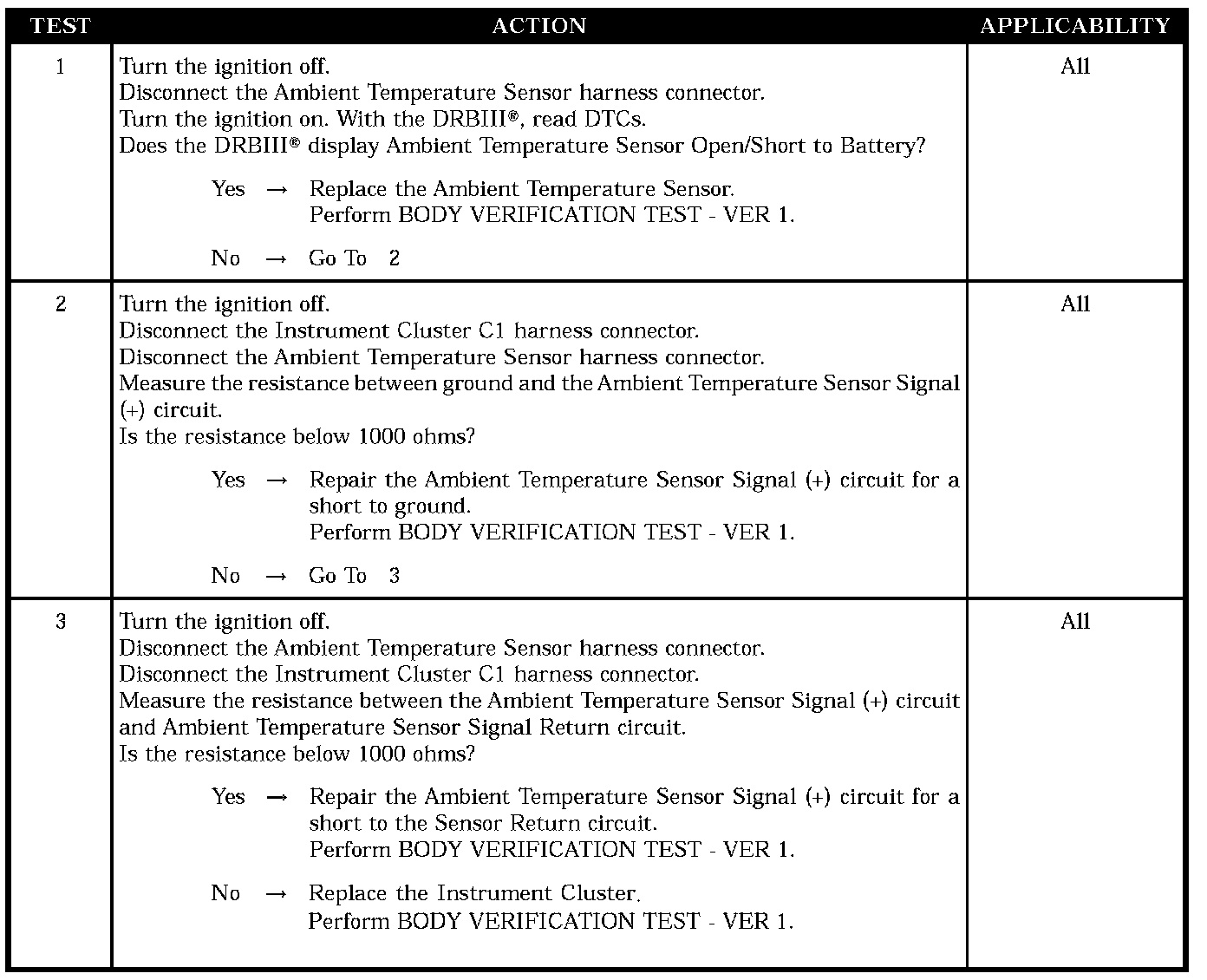

Test 1 - Test 3:

SYMPTOM
AMBIENT TEMP SENSOR SHORT TO GROUND

POSSIBLE CAUSES
- Ambient temperature sensor
- Ambient temperature sensor signal (+) circuit short to ground
- Ambient temperature sensor signal (+) circuit short to sensor return circuit
- Instrument cluster
