Ambient Temp Sensor Open/Shorted to Battery

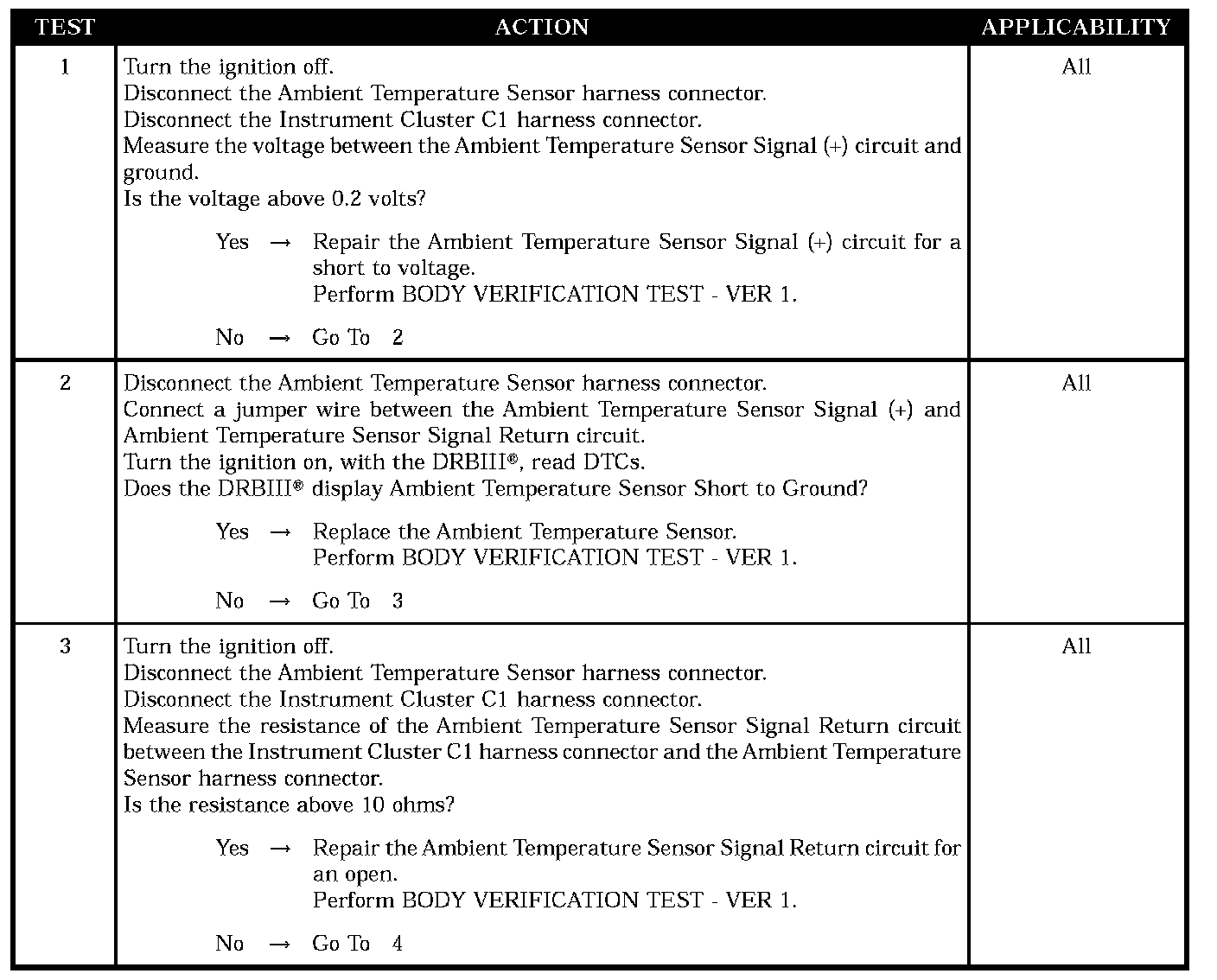

Test 1 - Test 3:

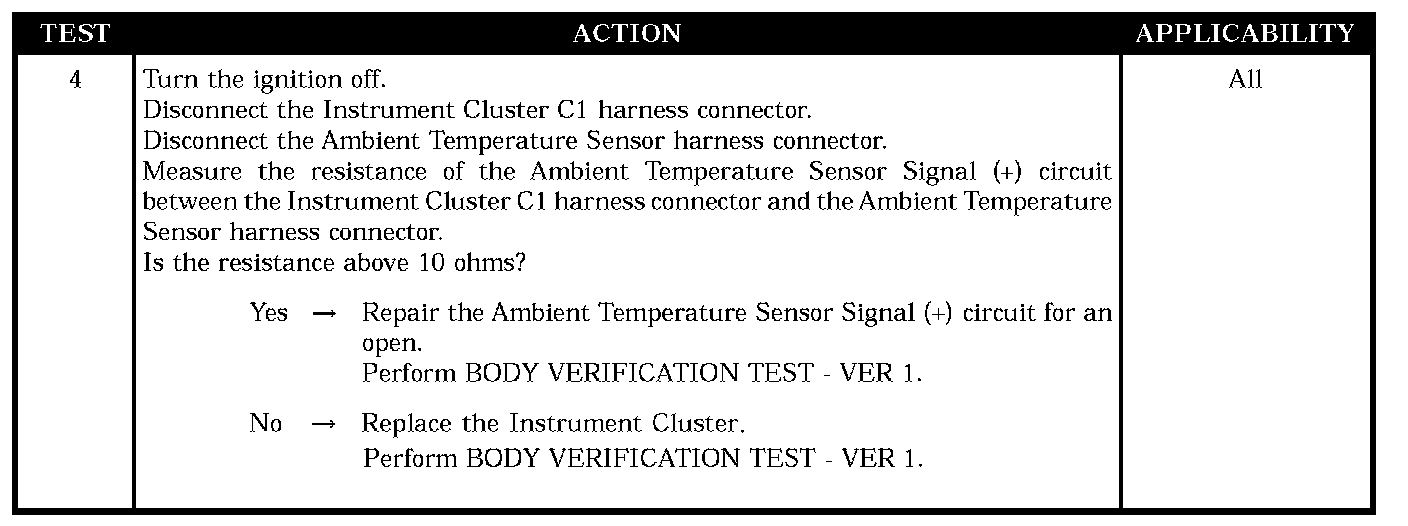

Test 4:

SYMPTOM
AMBIENT TEMP SENSOR OPEN/SHORT TO BATTERY

POSSIBLE CAUSES
- Ambient temperature sensor signal (+) circuit short to voltage
- Ambient temperature sensor
- Ambient temperature sensor signal return circuit open
- Ambient temperature sensor signal (+) circuit open
- Instrument cluster
