Water Cycle Valve Control Shorted Low (Active)

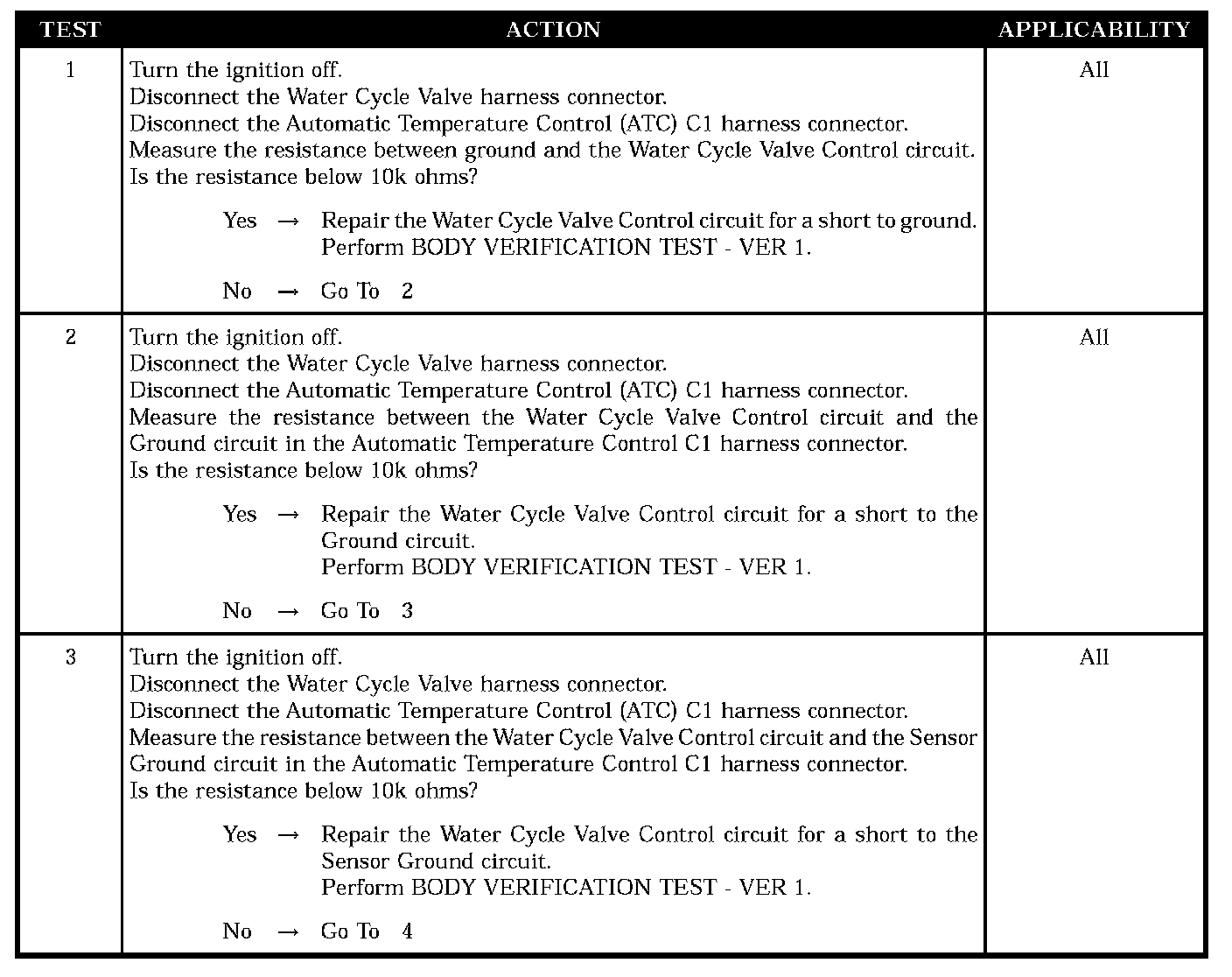

Test 1 - Test 3:

Test 4:

SYMPTOM
WATER CYCLE VALVE CONTROL SHORTED LOW (ACTIVE)

POSSIBLE CAUSES
- Water cycle valve control circuit shorted to ground
- Water cycle valve control circuit shorted to ground circuit
- Water cycle valve control circuit shorted to sensor ground circuit
- Automatic temperature control (ATC)
- Water cycle valve
