Water Cycle Valve Control High or Open (Active)

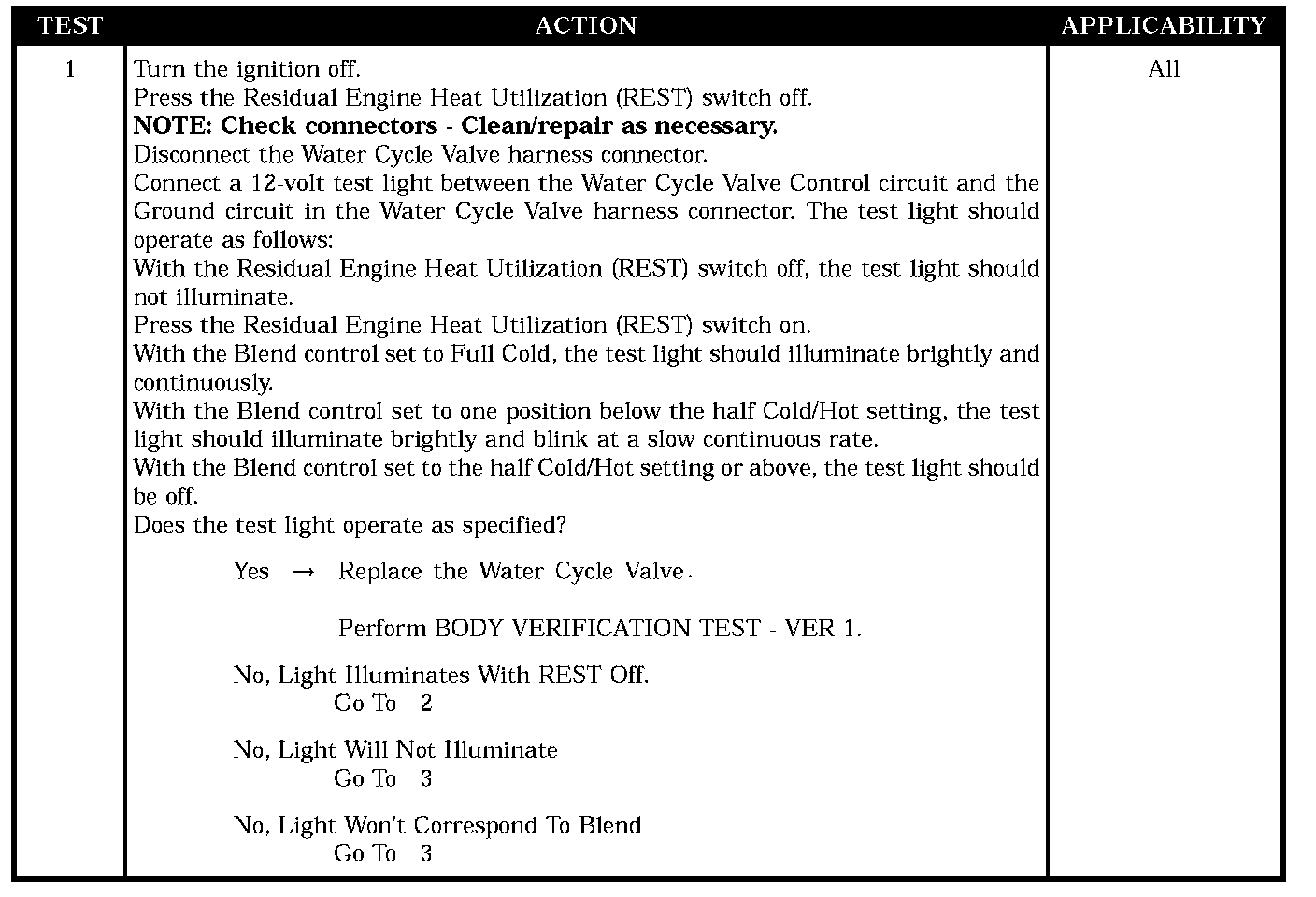

Test 1:

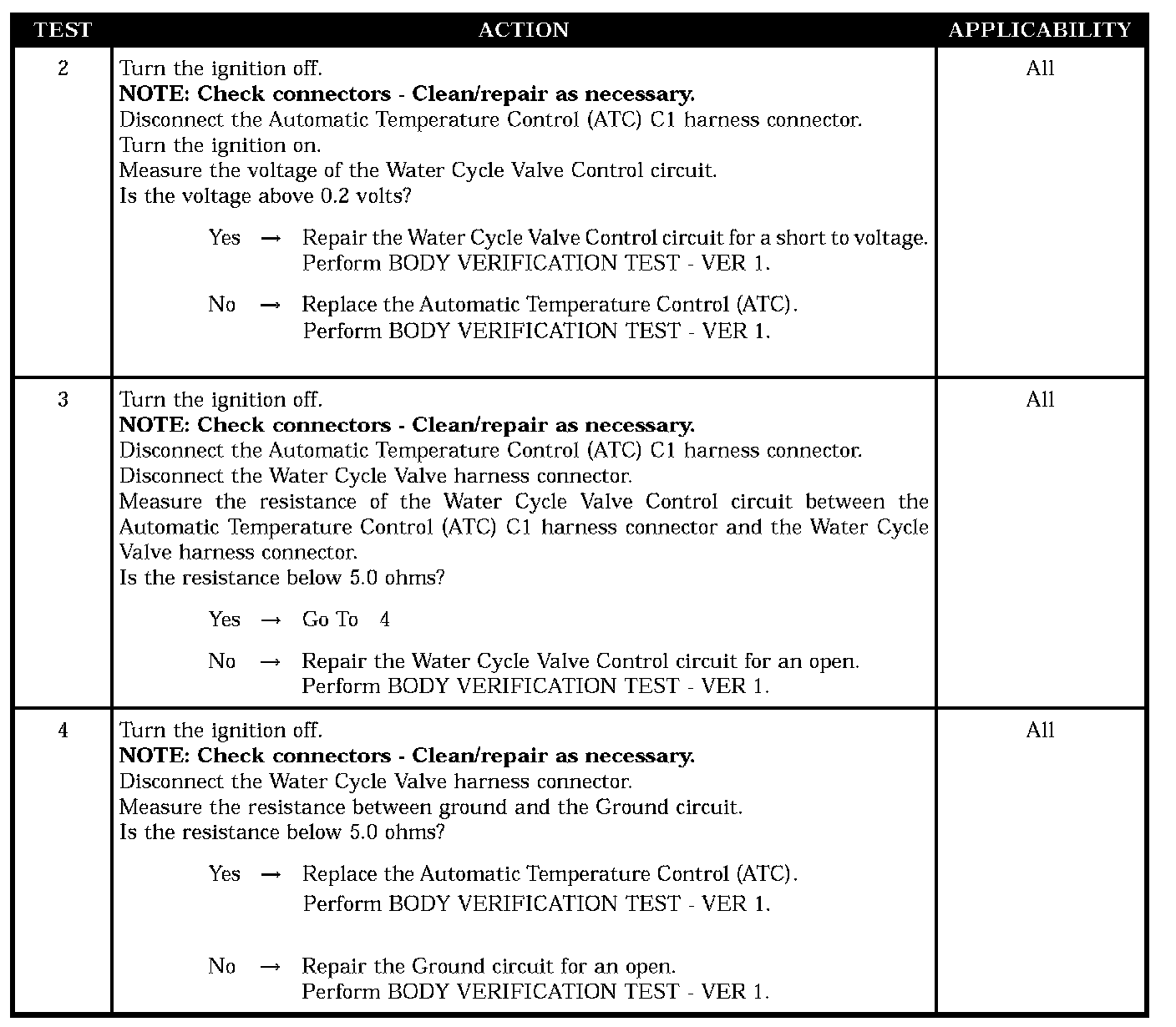

Test 2 - Test 4:

SYMPTOM
WATER CYCLE VALVE CONTROL HIGH OR OPEN (ACTIVE)

POSSIBLE CAUSES
- Water cycle valve
- Water cycle valve control circuit shorted to voltage
- Automatic temperature control (ATC)
- Water cycle valve control circuit open
- Ground circuit open
- Automatic temperature control (ATC)
