RECIRC Air Solenoid Control High or Open (Active)

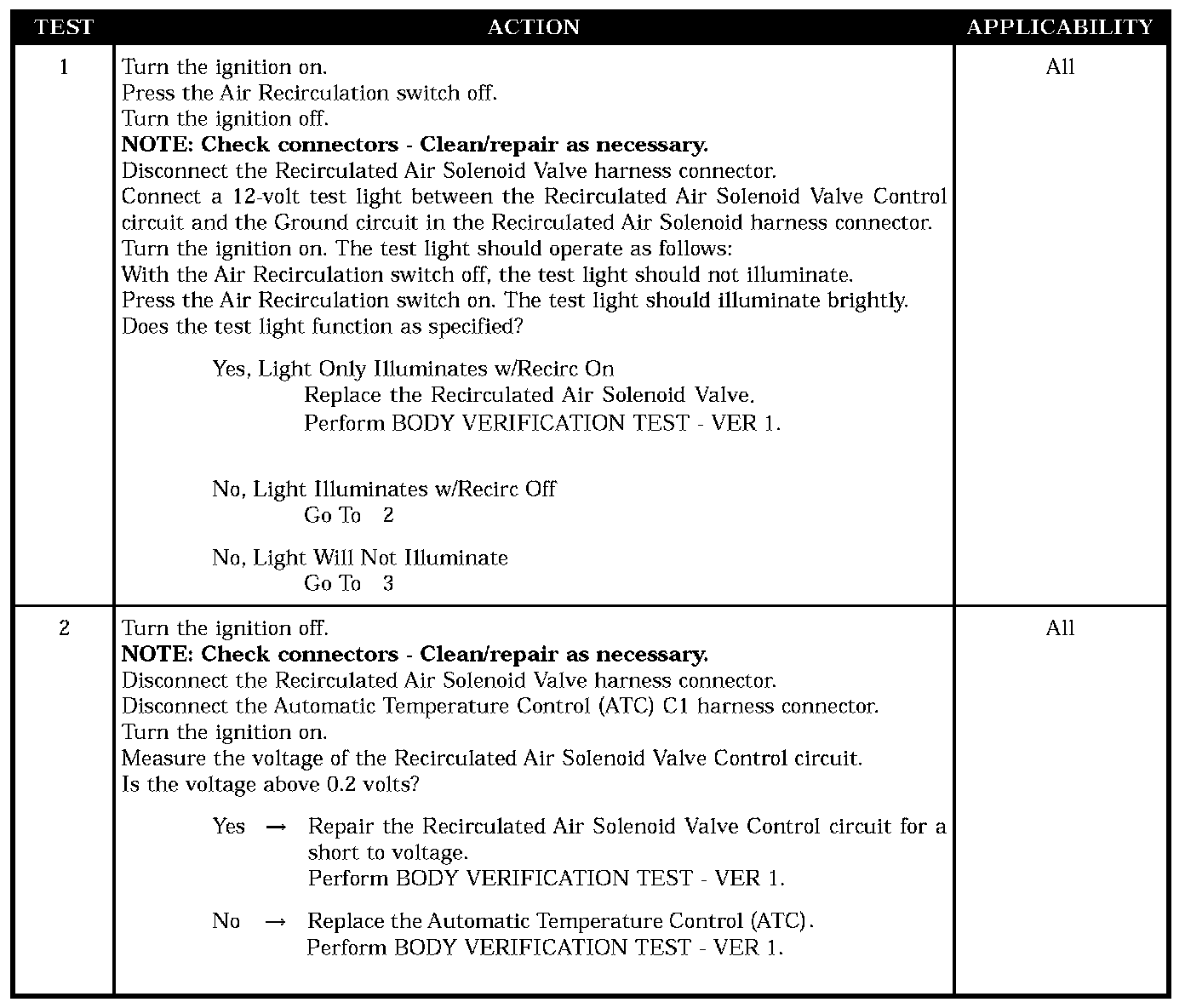

Test 1 - Test 2:

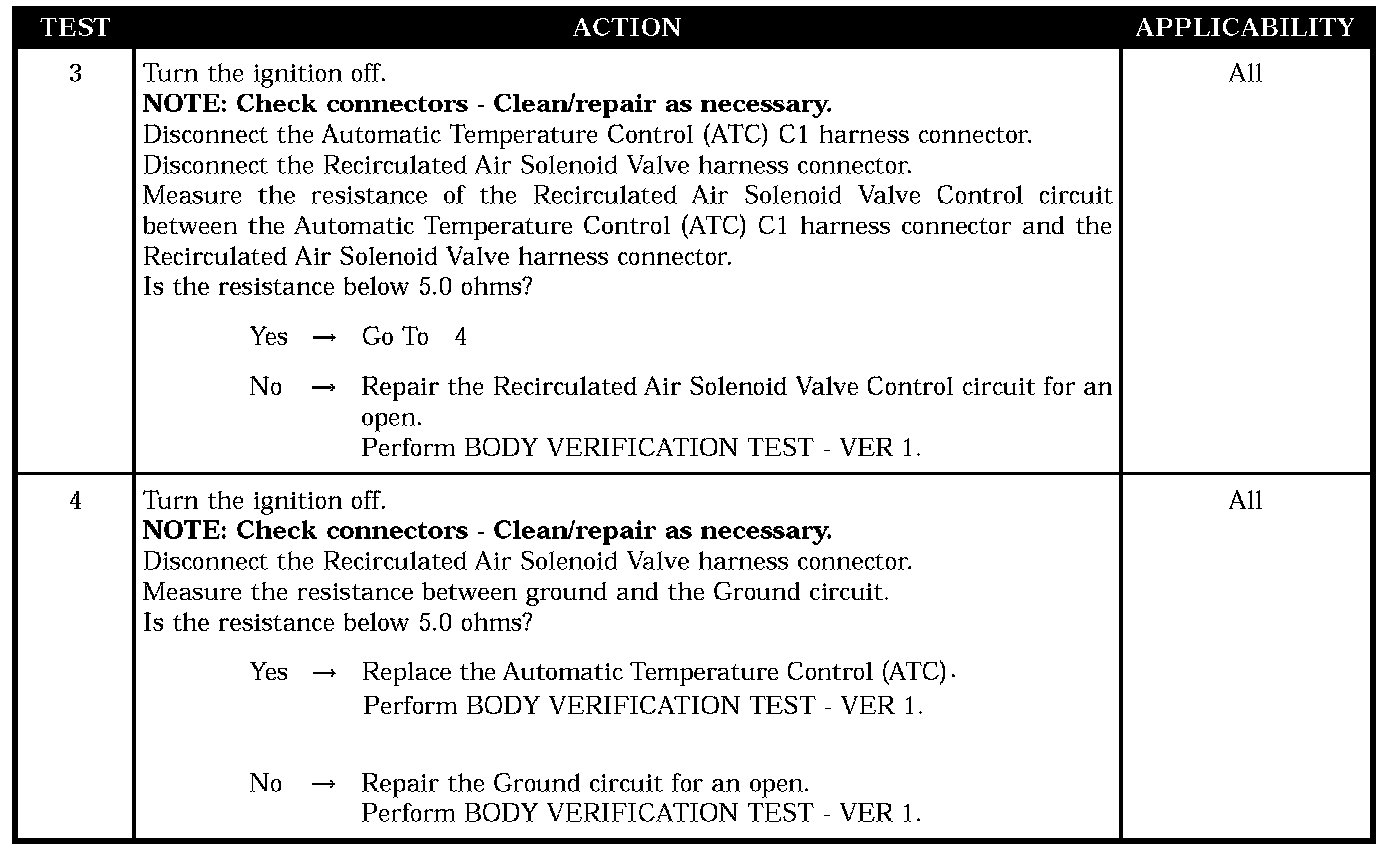

Test 3 - Test 4:

SYMPTOM
RECIRC AIR SOLENOID CONTROL HIGH OR OPEN (ACTIVE)

POSSIBLE CAUSES
- Recirculated air solenoid valve
- Recirculated air solenoid valve control circuit shorted to voltage
- Automatic temperature control (ATC)
- Recirculated air solenoid valve control circuit open
- Ground circuit open
- Automatic temperature control (ATC)
