EVAP Temp Sensor Shorted Low (Active)

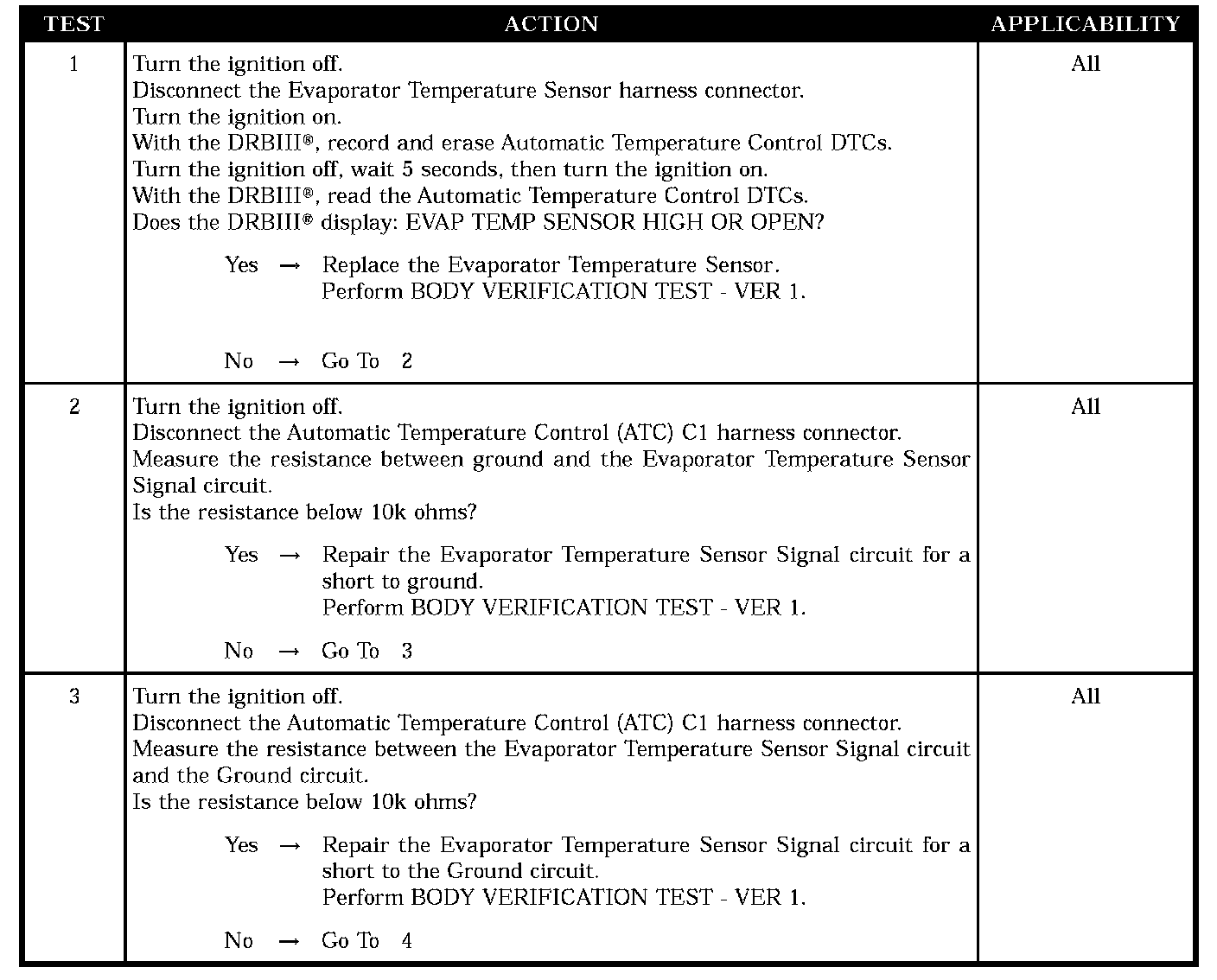

Test 1 - Test 3:

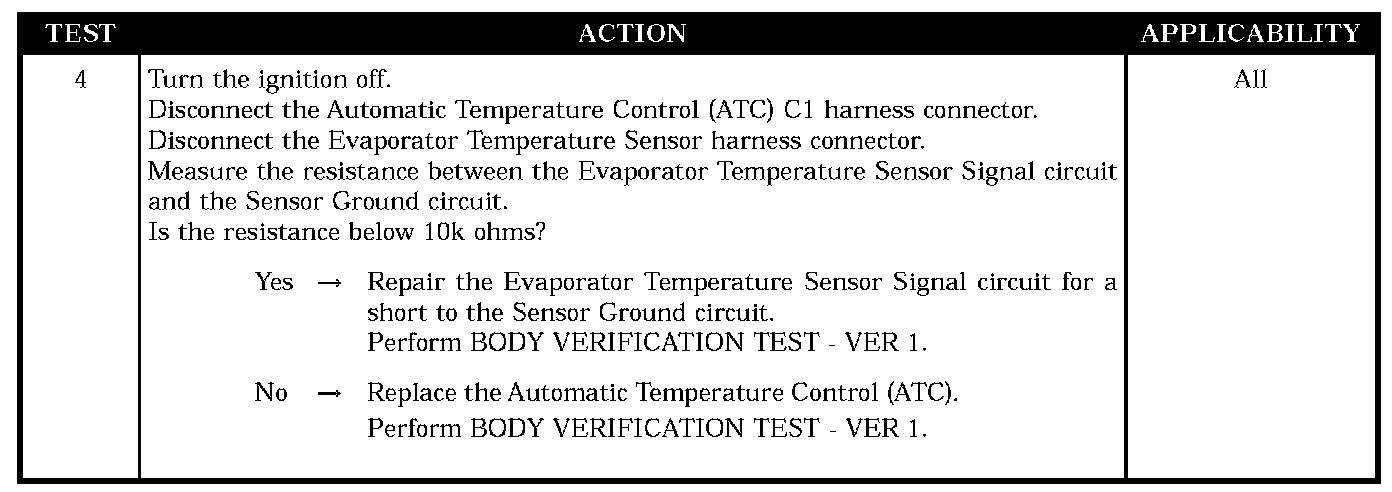

Test 4:

SYMPTOM
EVAP TEMP SENSOR SHORTED LOW (ACTIVE)

POSSIBLE CAUSES
- Evaporator temperature sensor
- EVAP temp sensor signal circuit shorted to ground
- EVAP temp sensor signal circuit shorted to ground circuit
- EVAP temp sensor signal circuit shorted to sensor ground circuit
- Automatic temperature control (ATC)
