CIRC Pump Control Shorted Low (Active)

Test 1 - Test 3:

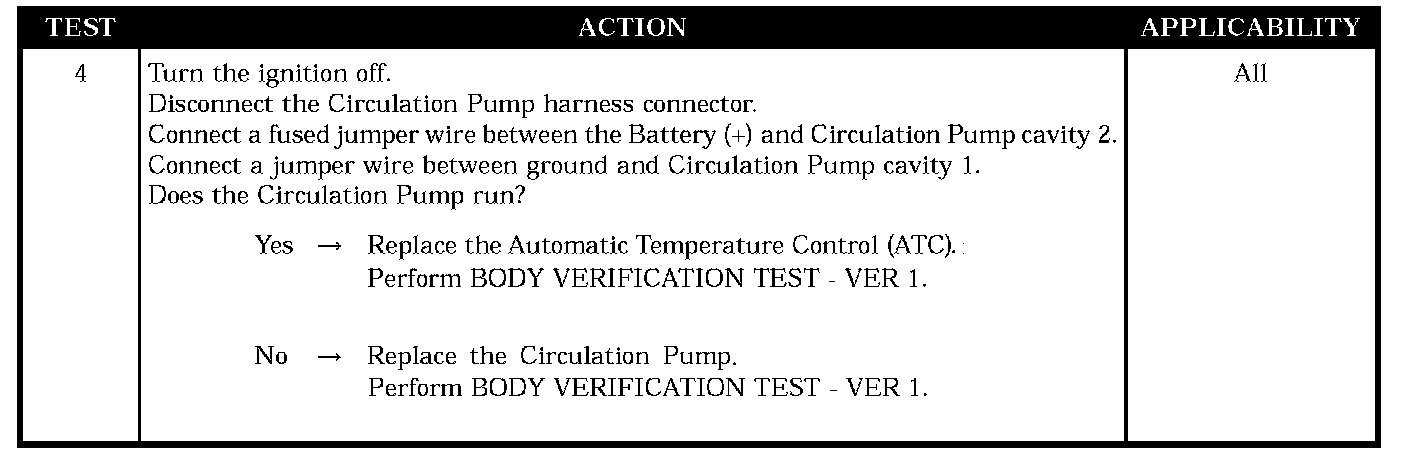

Test 4:

SYMPTOM
CIRC PUMP CONTROL SHORTED LOW (ACTIVE)

POSSIBLE CAUSES
- Circulation pump control circuit shorted to ground
- Circulation pump control circuit shorted to ground circuit
- Circulation pump control circuit shorted to sensor ground circuit
- Circulation pump
- Automatic temperature control (ATC)
