Air Outlet Temp Sensor Shorted Low (Active)

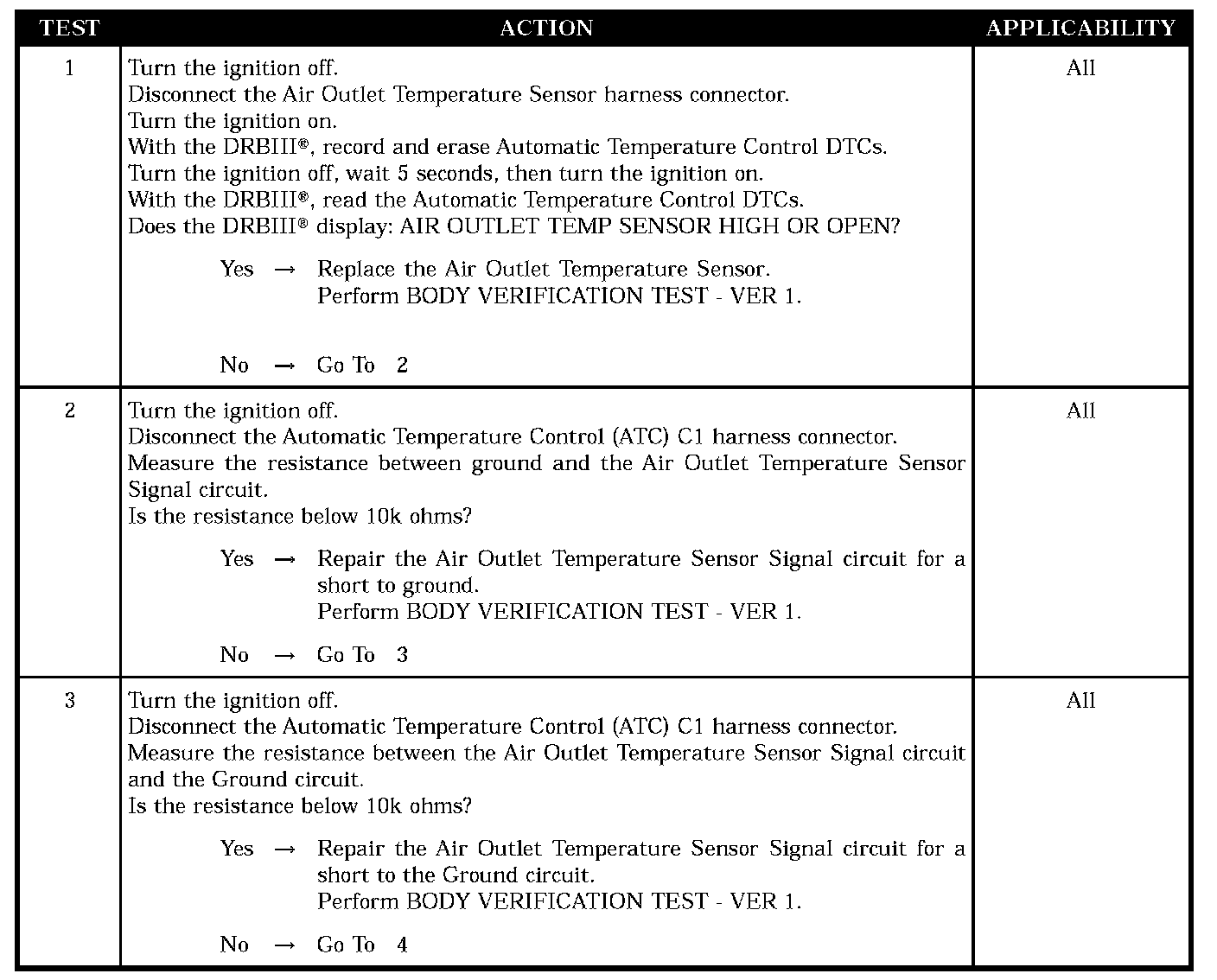

Test 1 - Test 3:

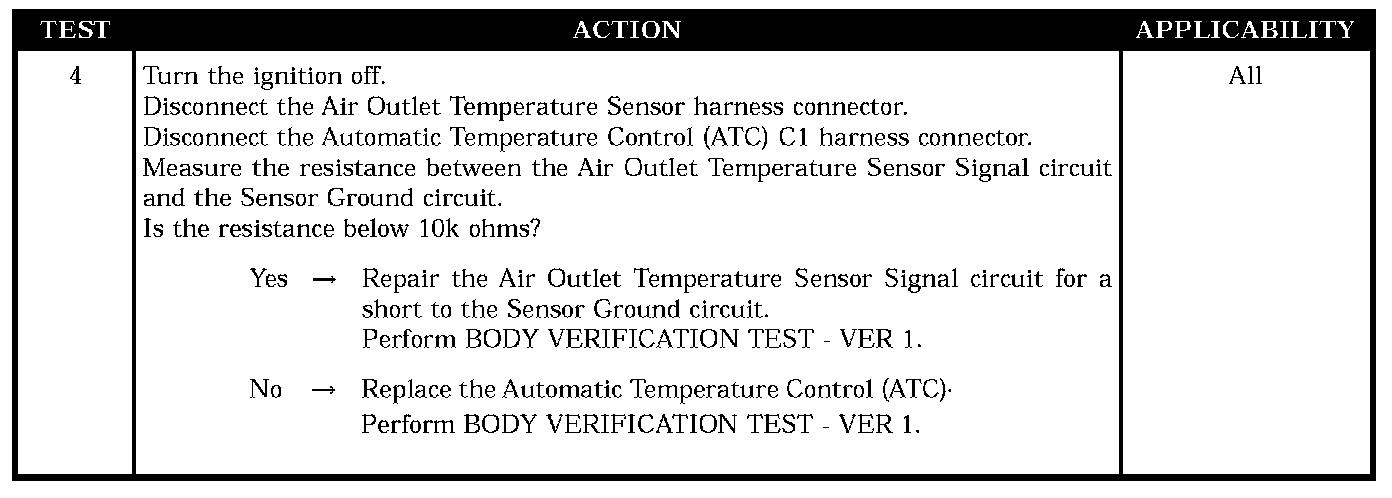

Test 4:

SYMPTOM
AIR OUTLET TEMP SENSOR SHORTED LOW (ACTIVE)

POSSIBLE CAUSES
- Air outlet temperature sensor
- Air outlet temperature sensor signal circuit shorted to ground
- Air outlet temperature sensor signal circuit shorted to ground circuit
- Automatic temperature control (ATC)
- Air outlet temperature sensor signal circuit short to sensor ground circuit
