Air Outlet Temp Sensor High or Open (Active)

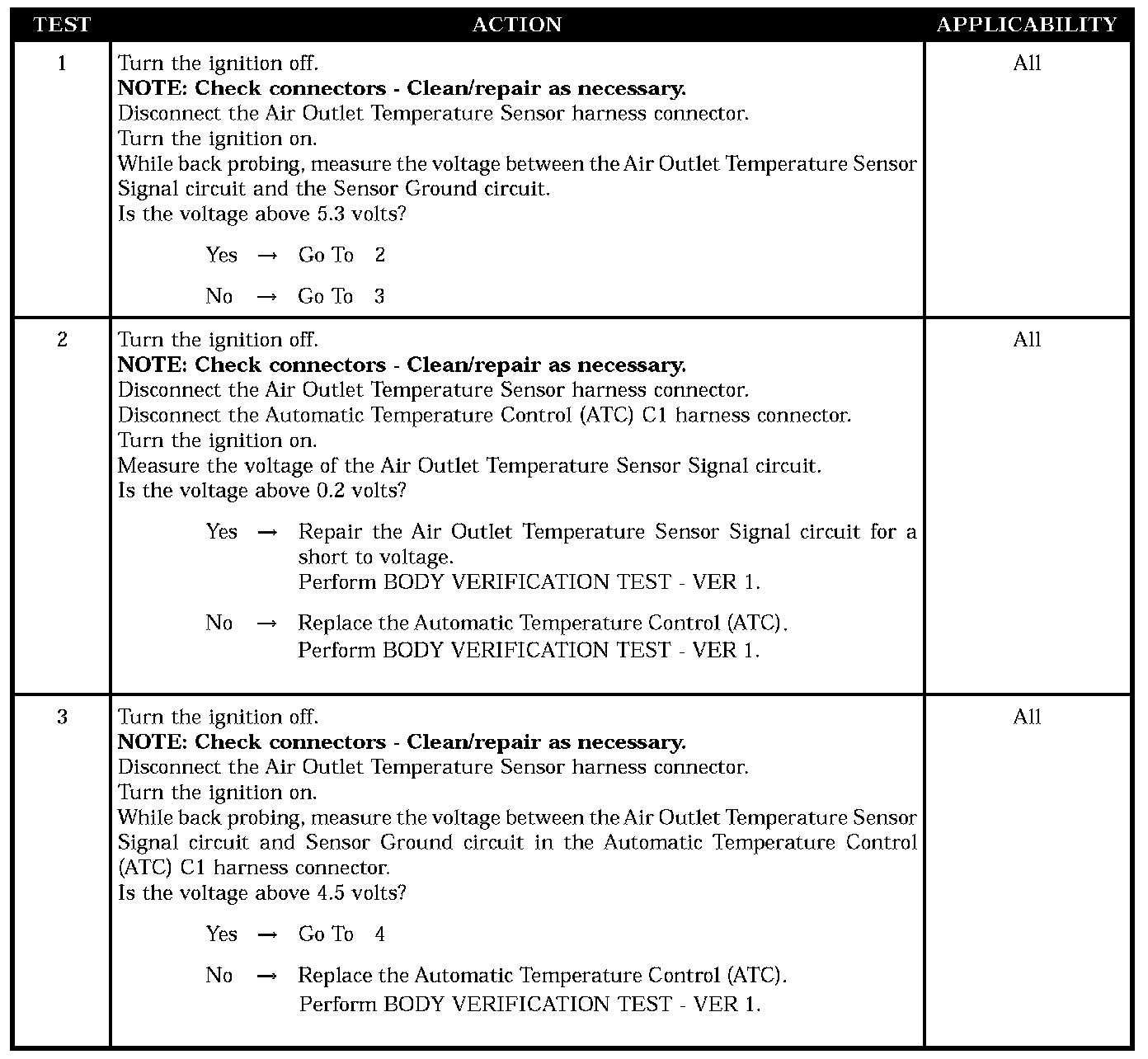

Test 1 - Test 3:

Test 4 - Test 5:

SYMPTOM
AIR OUTLET TEMP SENSOR HIGH OR OPEN (ACTIVE)

POSSIBLE CAUSES
- Air outlet temperature sensor signal circuit shorted to voltage
- Automatic temperature control (ATC)
- Automatic temperature control (ATC)
- Air outlet temperature sensor signal circuit open
- Sensor ground circuit open
- Air outlet temperature sensor
