A/C Compressor Control High or Open (Active)

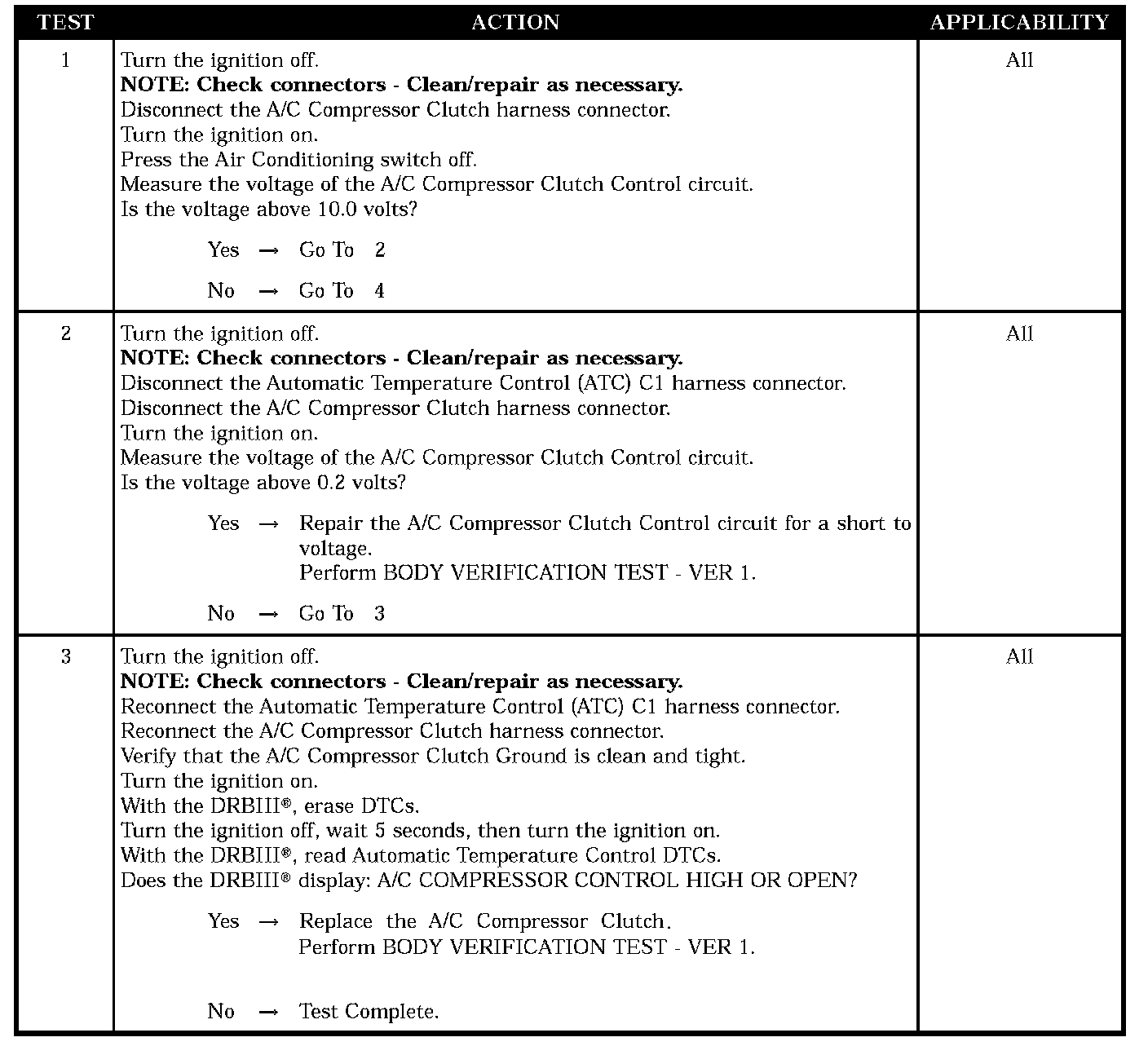

Test 1 - Test 3:

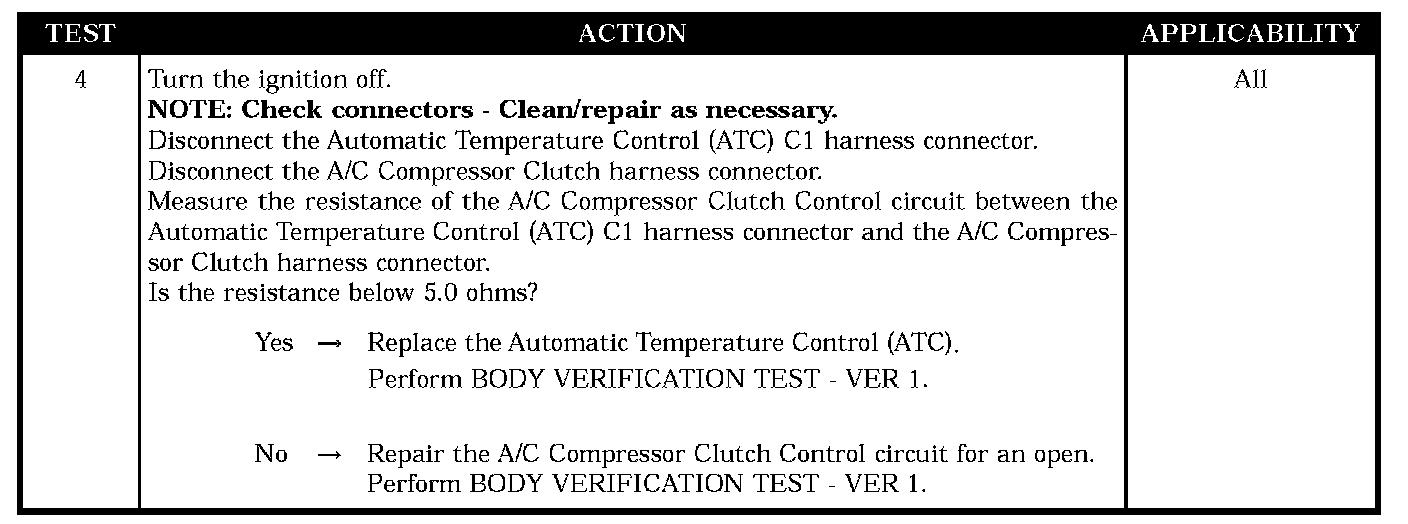

Test 4:

SYMPTOM
A/C COMPRESSOR CONTROL HIGH OR OPEN (ACTIVE)

POSSIBLE CAUSES
- A/C compressor clutch control circuit shorted to voltage
- A/C compressor clutch
- A/C compressor clutch control circuit open
- Automatic temperature control (ATC)
