No Response From Shift Lever Assembly

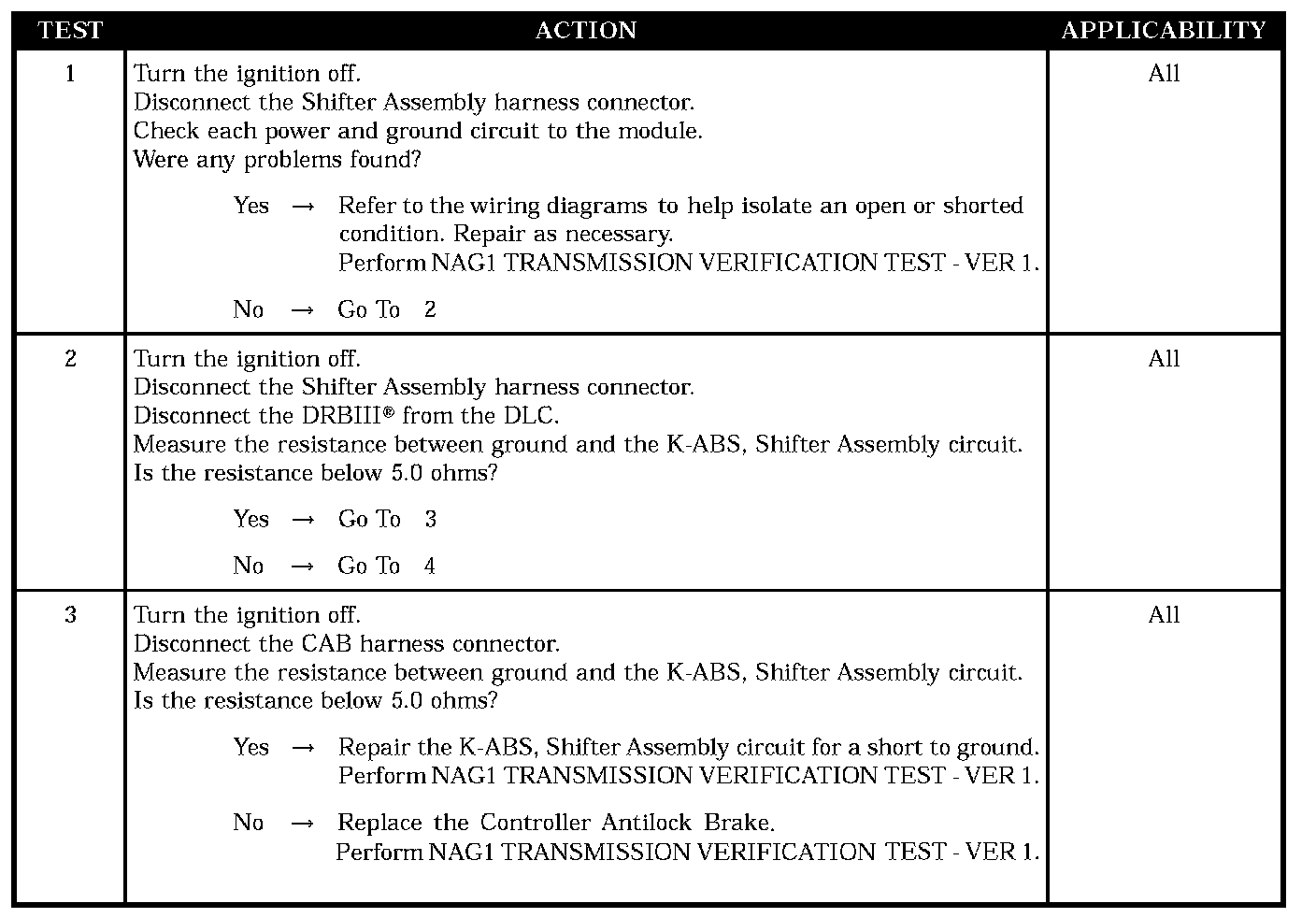

Test 1 - Test 3:

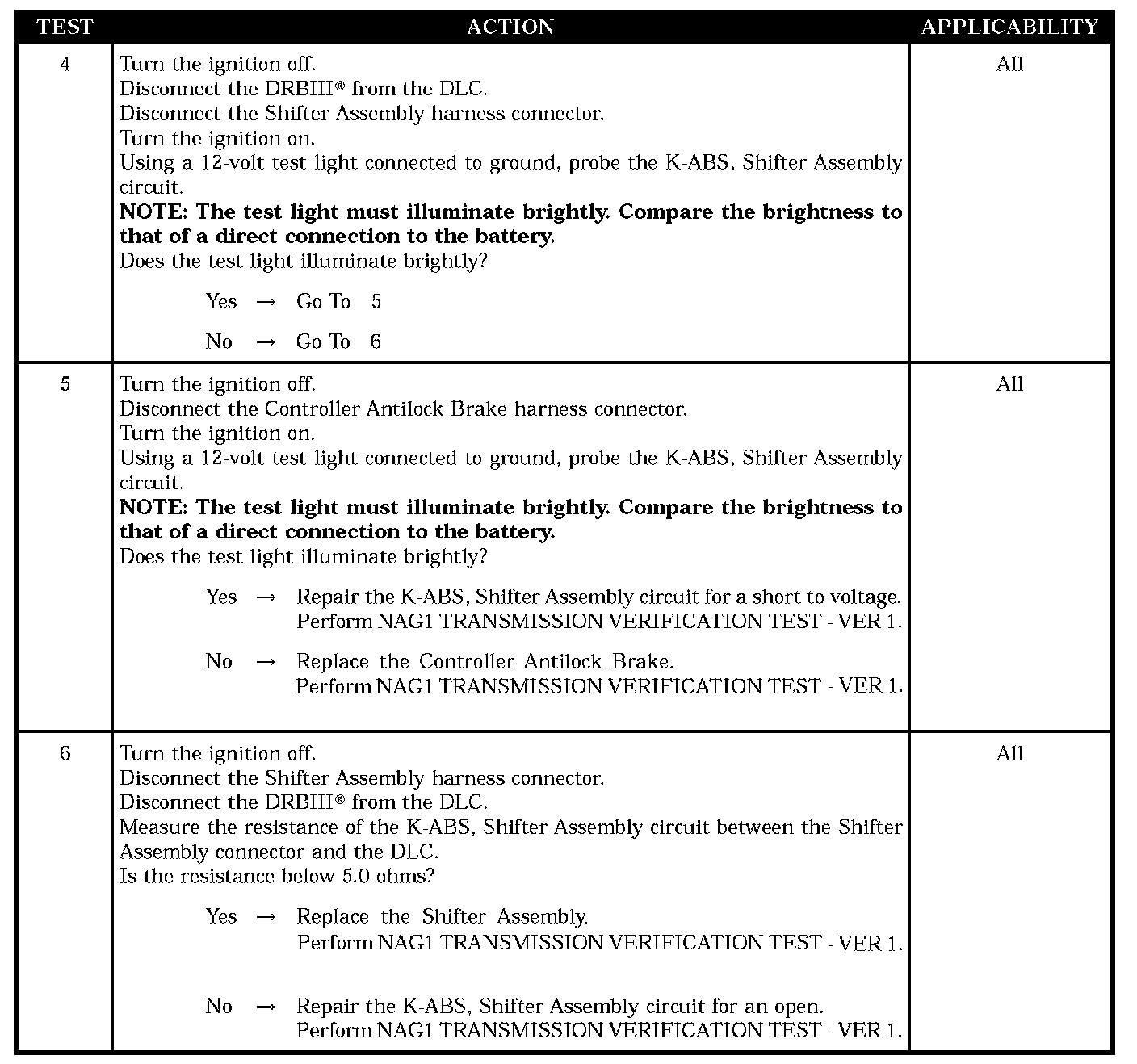

Test 4 - Test 6:

SYMPTOM
NO RESPONSE FROM SHIFTER ASSEMBLY

POSSIBLE CAUSES
- Check powers and grounds to the shifter assembly
- Controller antilock brake
- K-ABS, shifter assembly circuit shorted to ground
- Controller antilock brake
- K-ABS, shifter assembly circuit shorted to voltage
- K-ABS, shifter assembly circuit open
- Shifter assembly
