No Response From Instrument Cluster

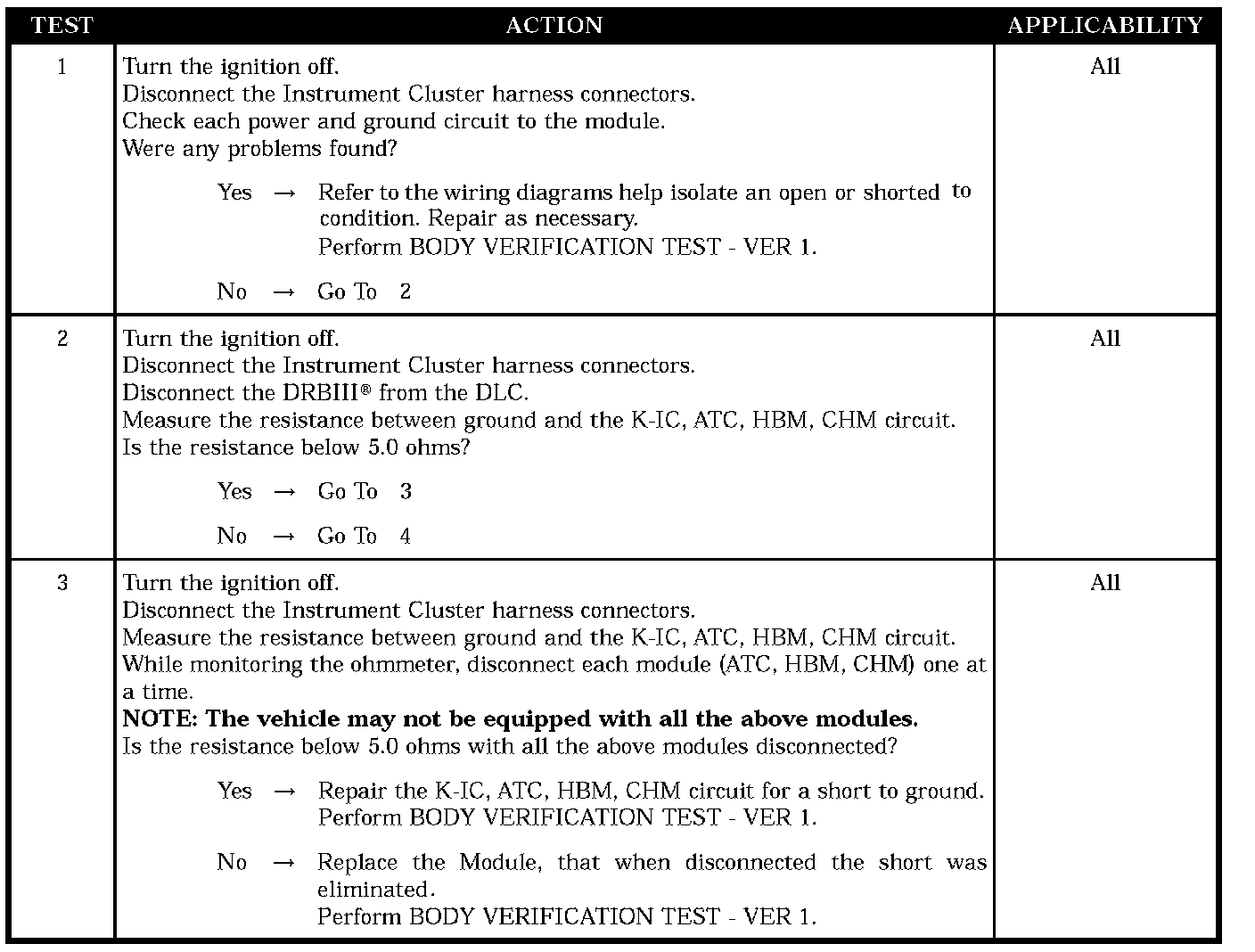

Test 1 - Test 3:

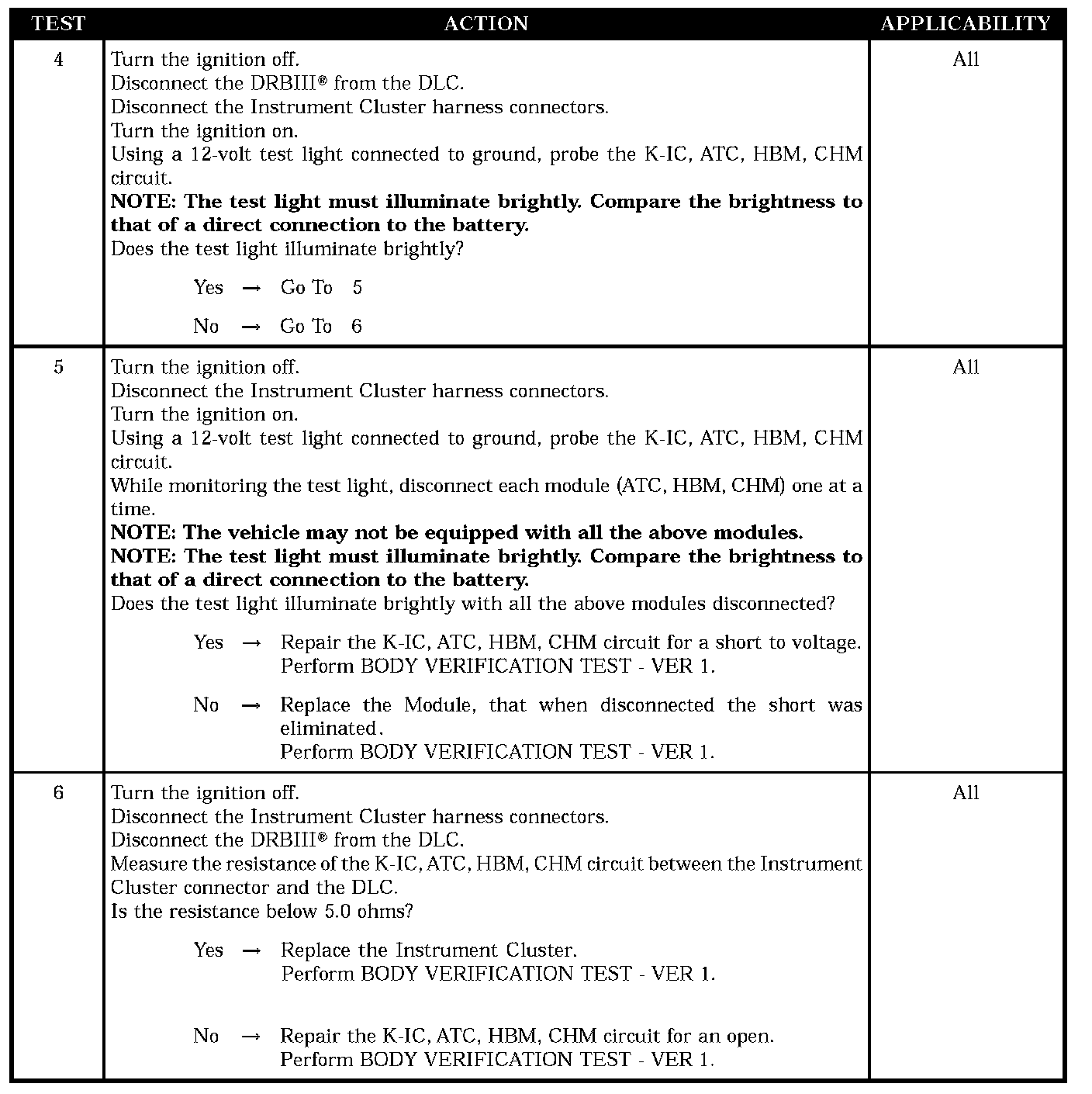

Test 4 - Test 6:

SYMPTOM
NO RESPONSE FROM INSTRUMENT CLUSTER

POSSIBLE CAUSE
- Check powers and grounds to the instrument cluster
- Module - internal short to ground
- K-IC, ATC, HBM, CHM circuit shorted to ground
- Module - internal short to voltage
- K-IC, ATC, HBM, CHM circuit shorted to voltage
- K-IC, ATC, HBM, CHM circuit open
- Instrument cluster
