No Response From Automatic Temperature Control Module

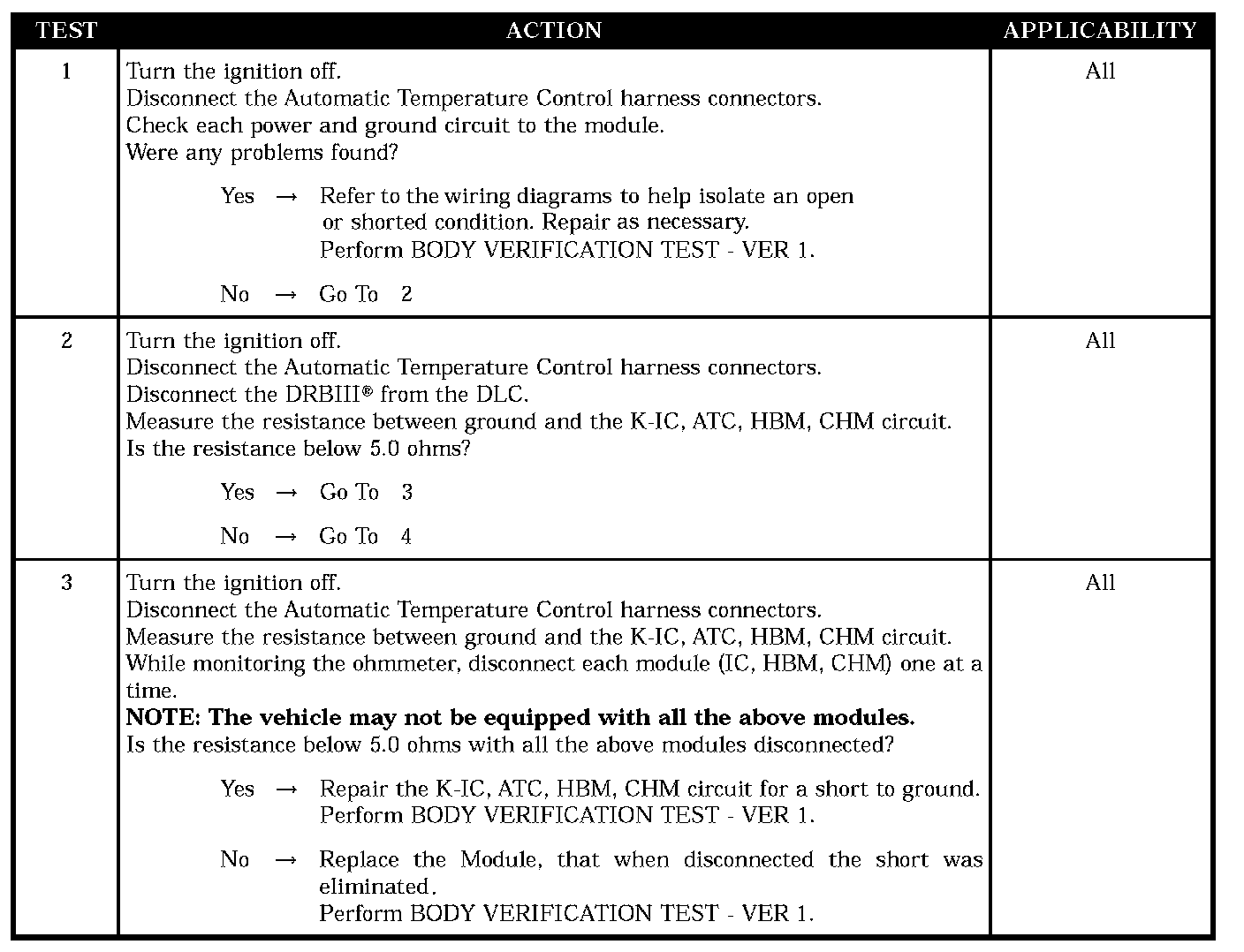

Test 1 - Test 3:

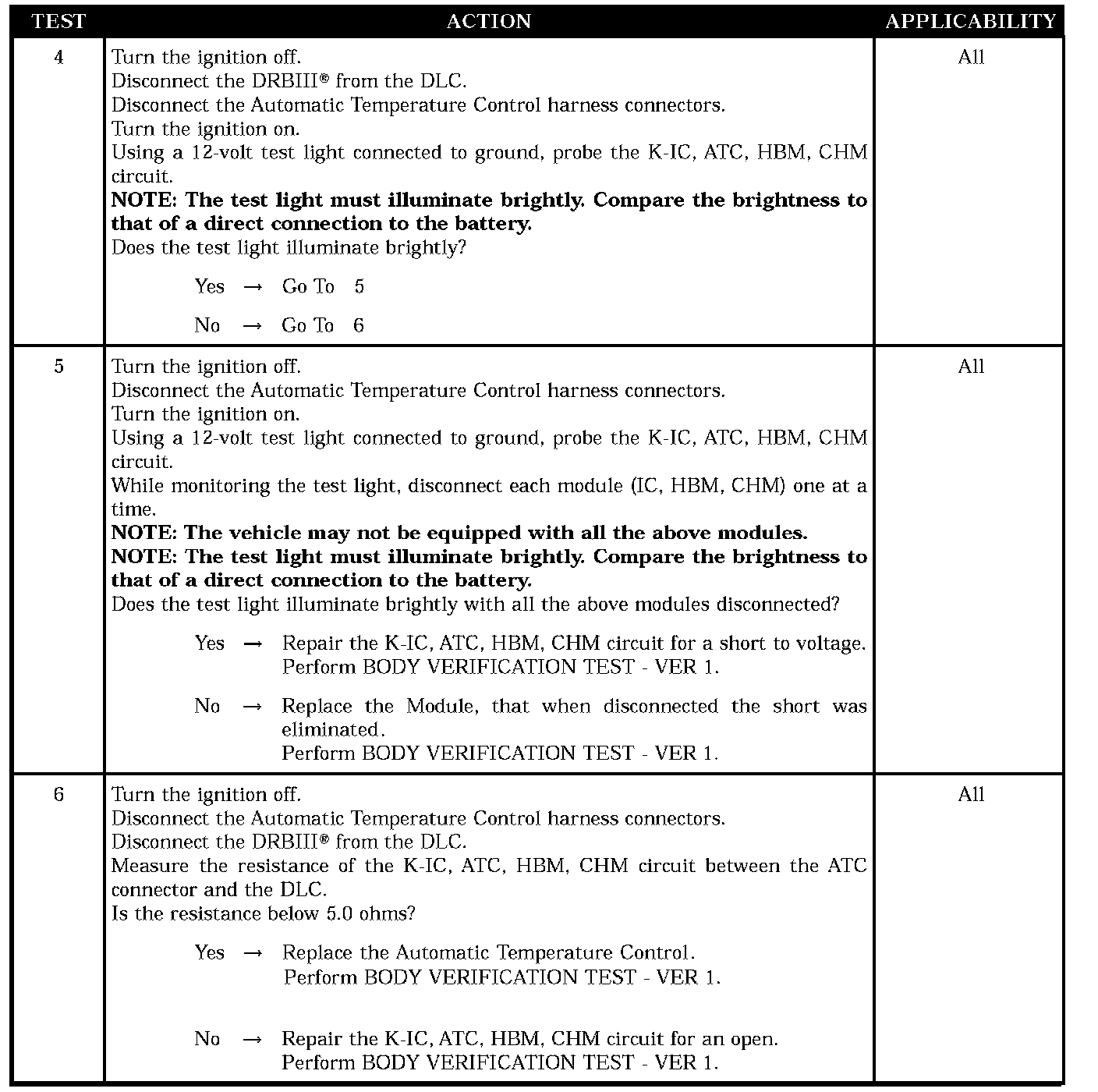

Test 4 - Test 6:

SYMPTOM
NO RESPONSE FROM AUTOMATIC TEMPERATURE CONTROL

POSSIBLE CAUSES
- Check powers and grounds to the automatic temperature control
- Module - internal short to ground
- K-IC, ATC, HBM, CHM Circuit shorted to ground
- Module - internal short to voltage
- K-IC, ATC, HBM, CHM Circuit shorted to voltage
- K-IC, ATC, HBM, CHM Circuit open
- Automatic temperature control
