No Response From Transmission Control Module - Transmission Control System

Symptom:
NO RESPONSE FROM TRANSMISSION CONTROL MODULE

POSSIBLE CAUSES
- CHECK POWERS AND GROUNDS TO THE TRANSMISSION CONTROL MODULE
- K-TCM CIRCUIT SHORTED TO GROUND
- K-TCM CIRCUIT SHORTED TO VOLTAGE
- K-TCM CIRCUIT OPEN
- TRANSMISSION CONTROL MODULE

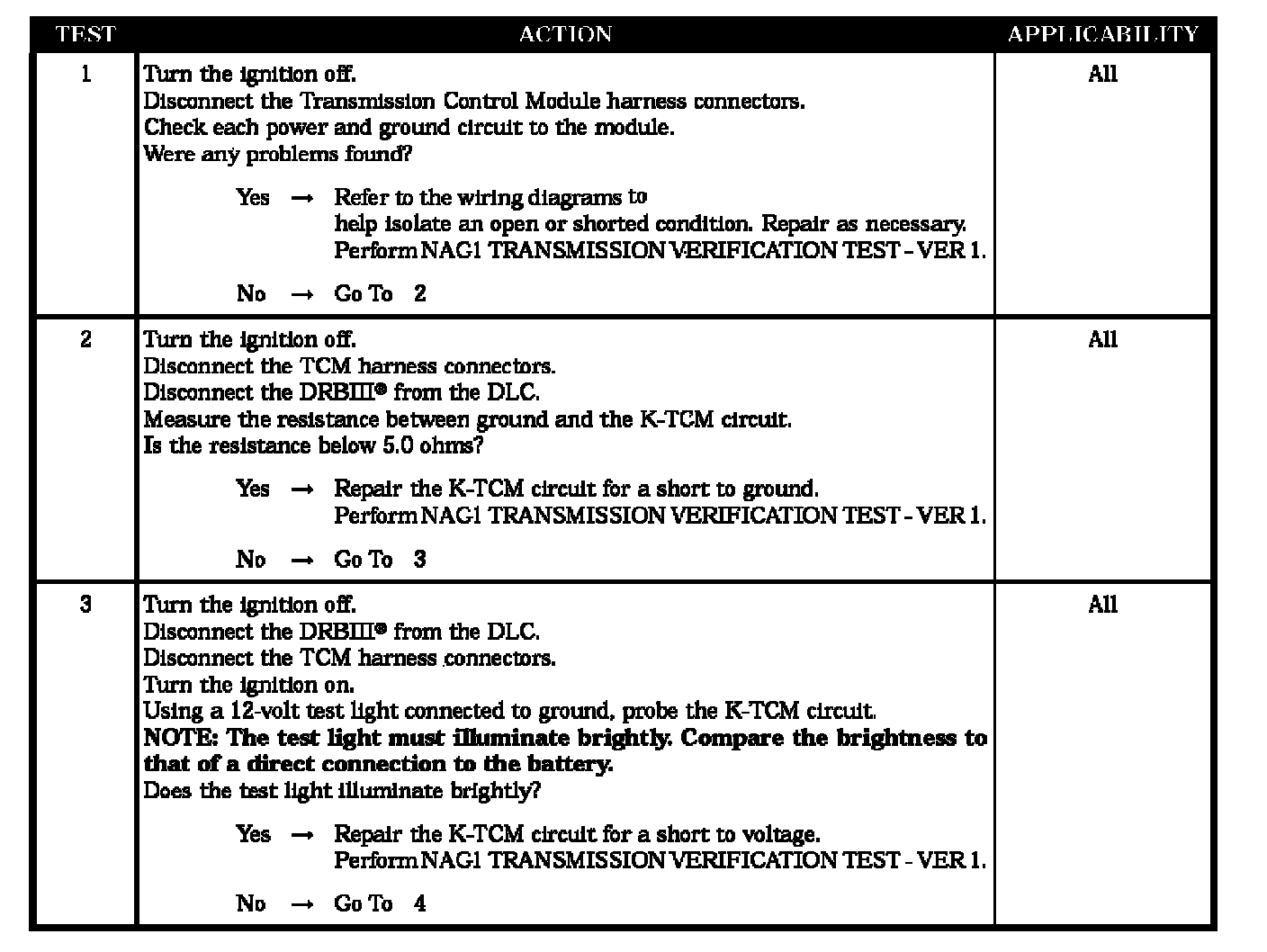

Test 1 - Test 3:

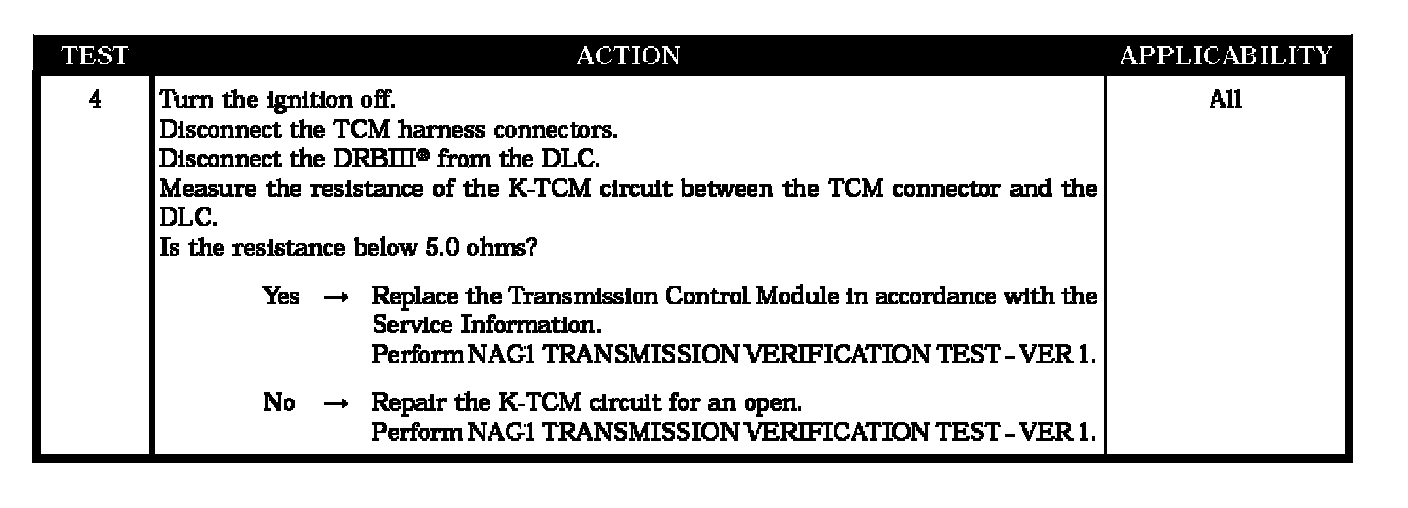

Test 4:
