No Response From Security System Module

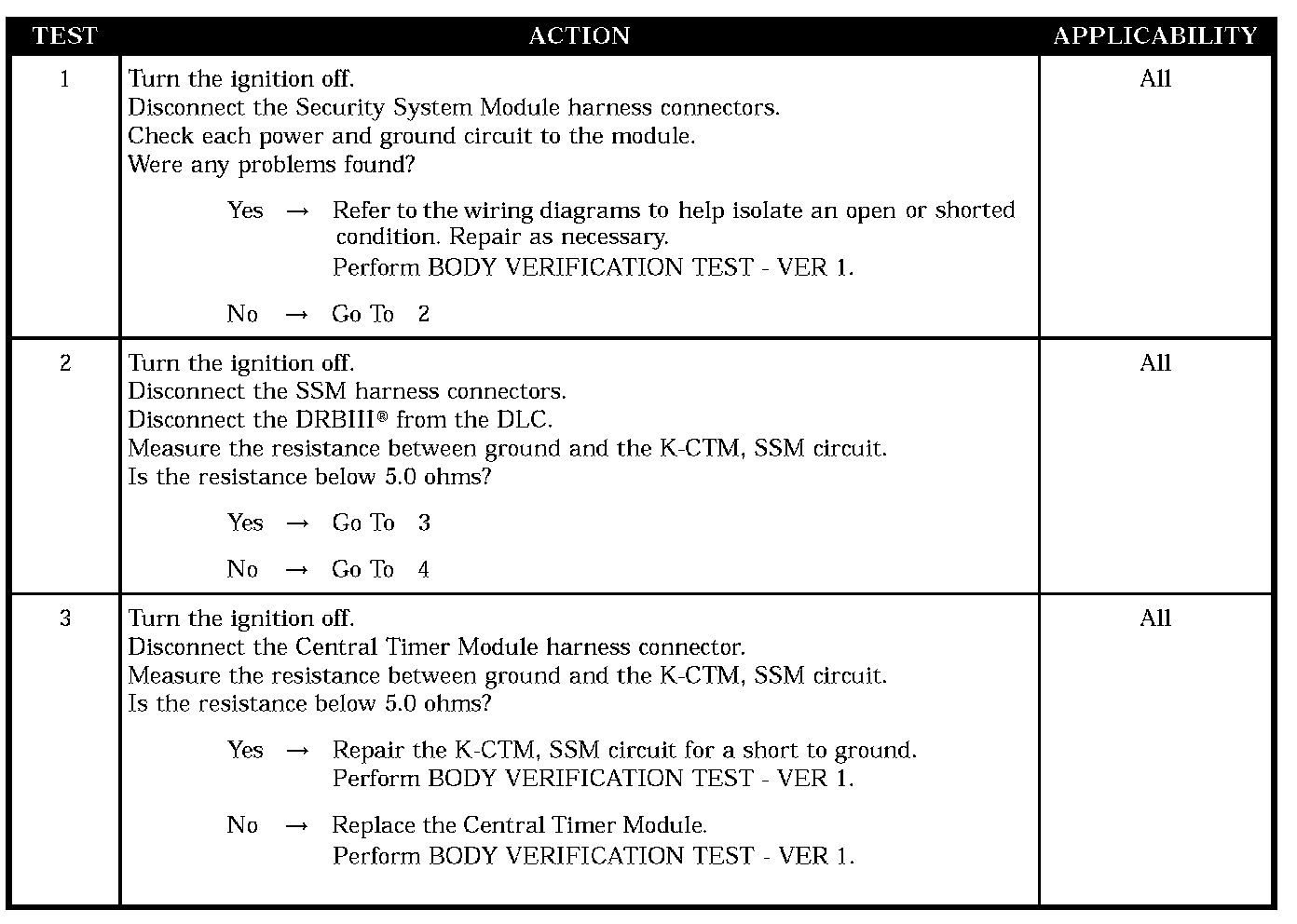

Test 1 - Test 3:

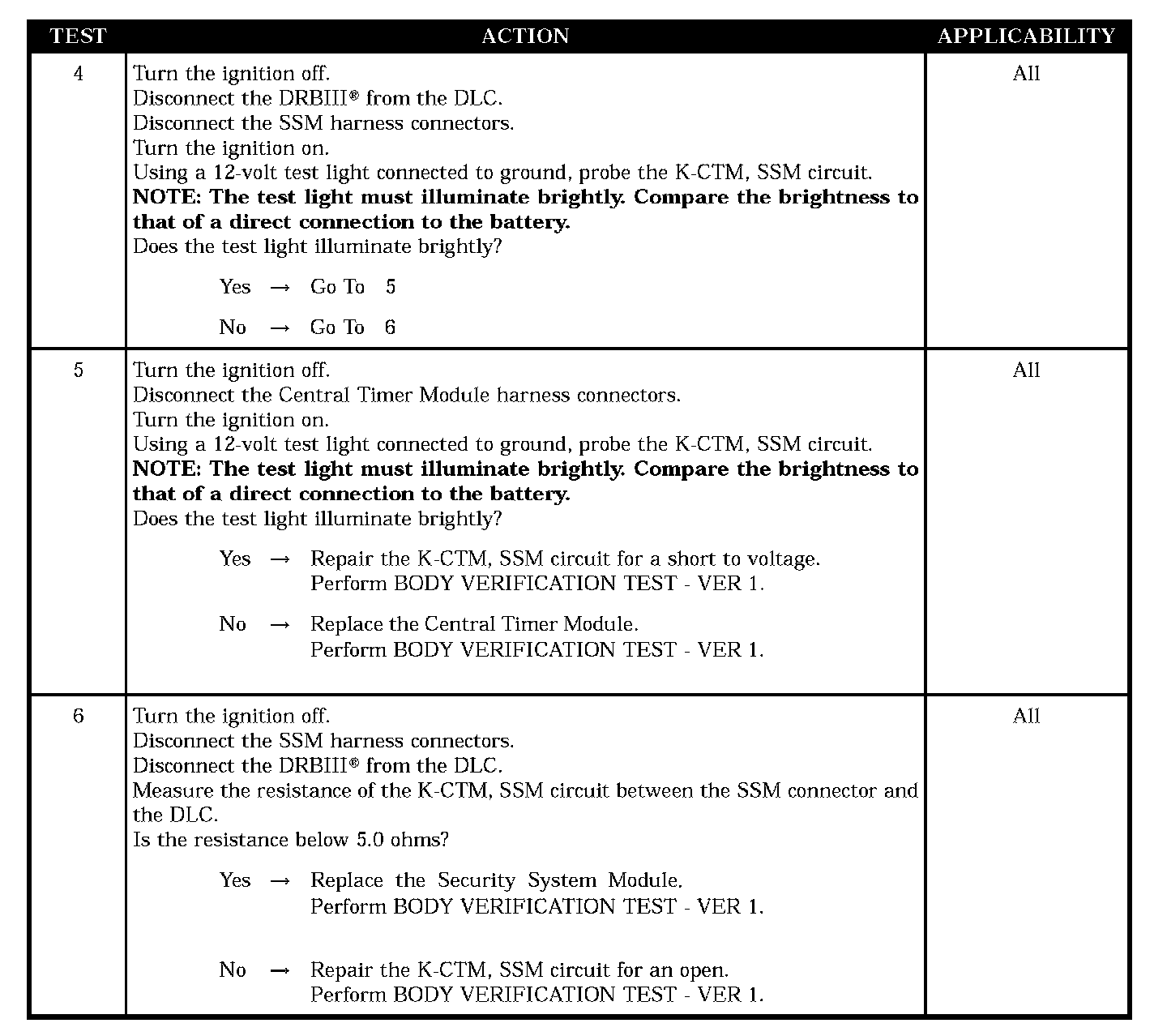

Test 4 - Test 6:

SYMPTOM
NO RESPONSE FROM SECURITY SYSTEM MODULE

POSSIBLE CAUSES
- Check powers and grounds to the security system module
- Central timer module
- K-CTM, SSM circuit shorted to ground
- Central timer module
- K-CTM, SSM circuit shorted to voltage
- K-CTM, SSM circuit open
- Security system module
