No Response From ECM (Engine Control Module)

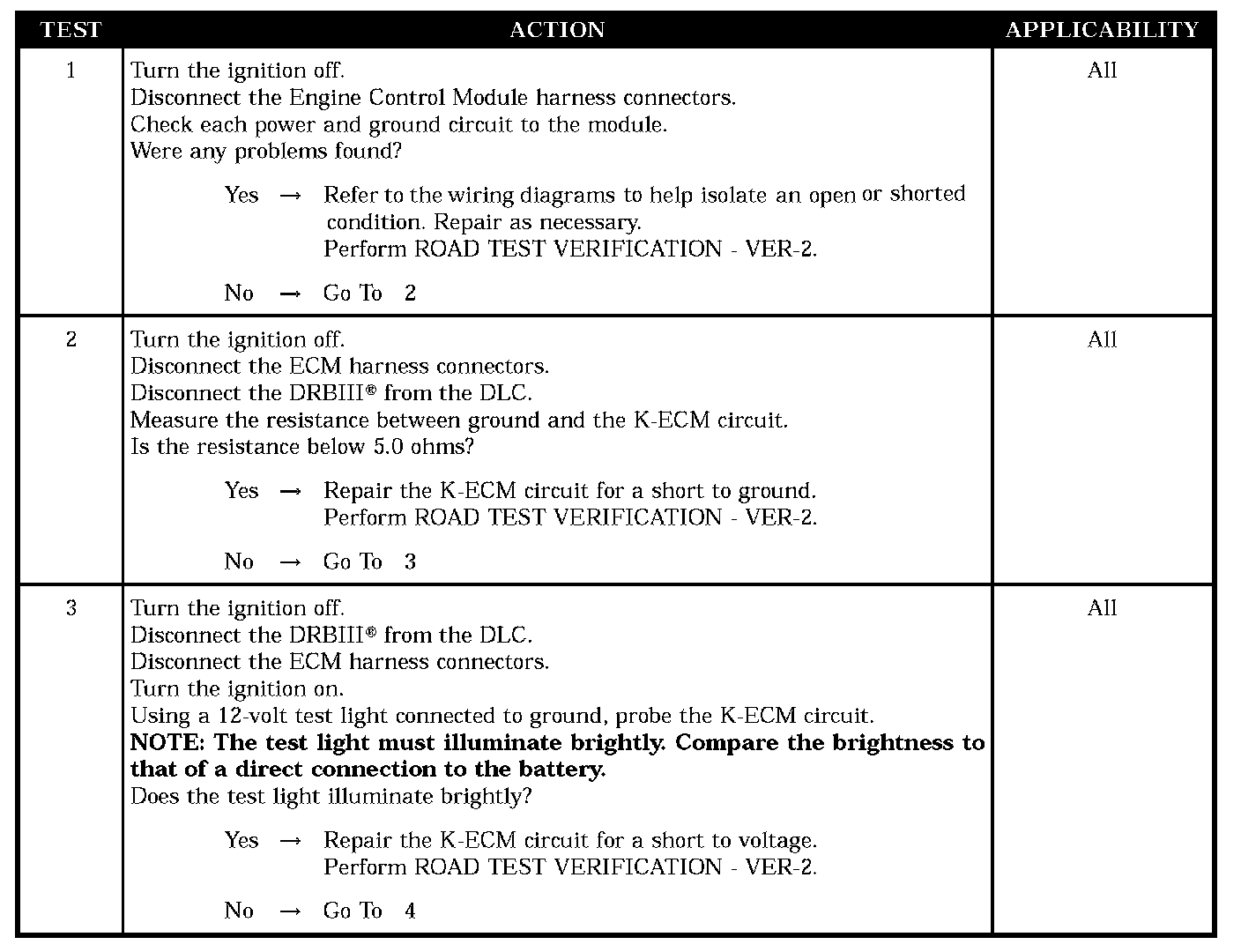

Test 1 - Test 3:

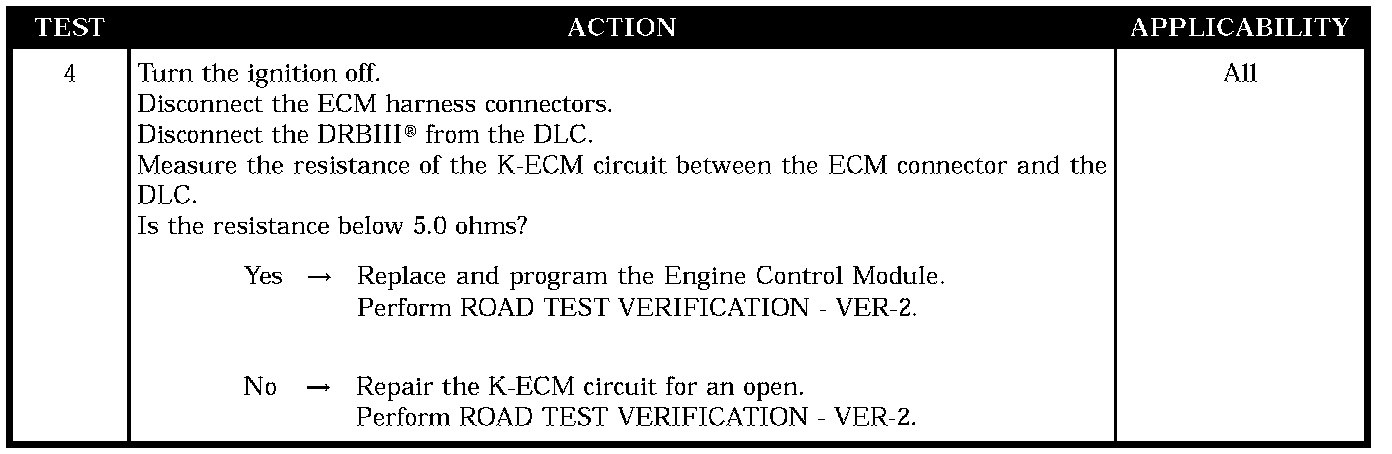

Test 4:

SYMPTOM
NO RESPONSE FROM ENGINE CONTROL MODULE

POSSIBLE CAUSES
- Check powers and grounds to the engine control module
- K-ECM circuit shorted to ground
- K-ECM circuit shorted to voltage
- K-ECM circuit open
- Engine control module
