Heater Pre-Test

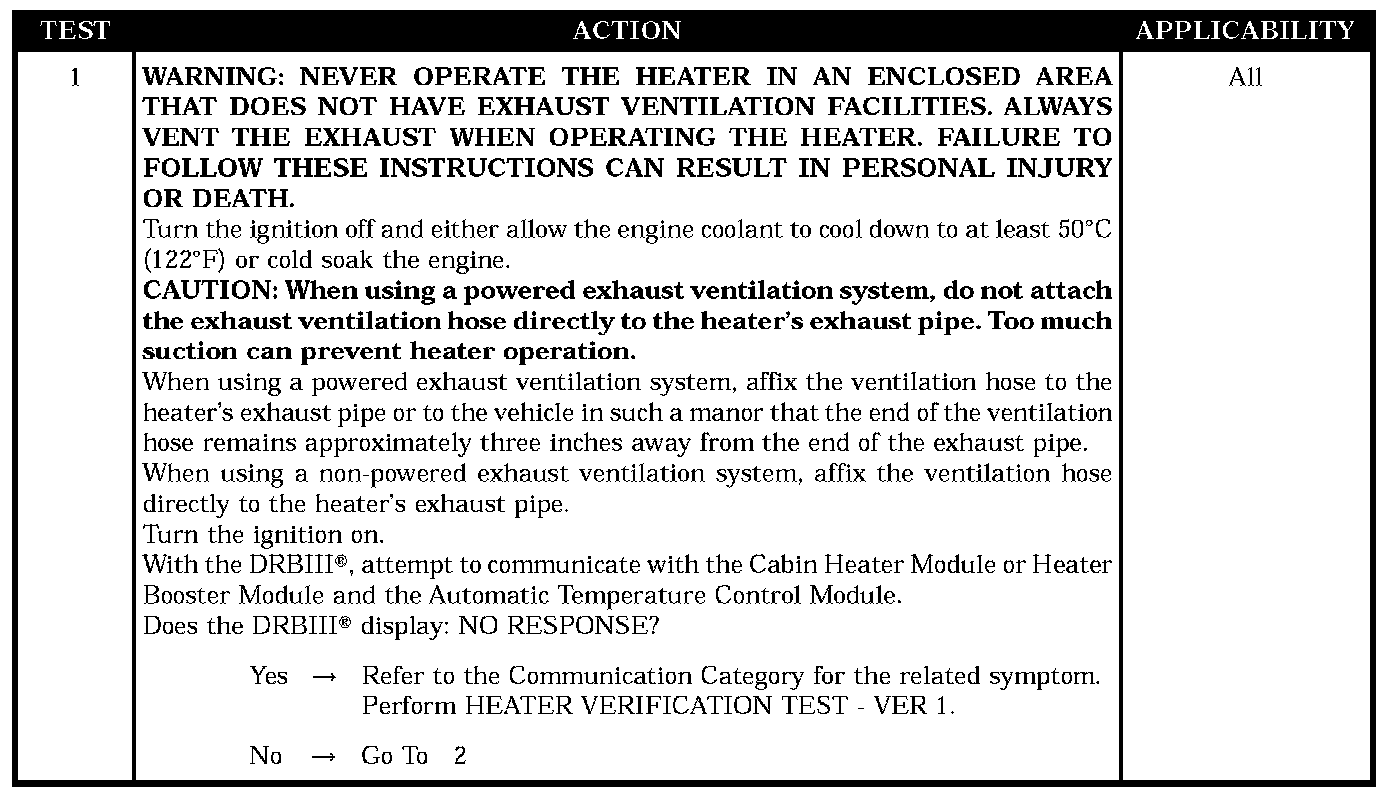

Test 1:

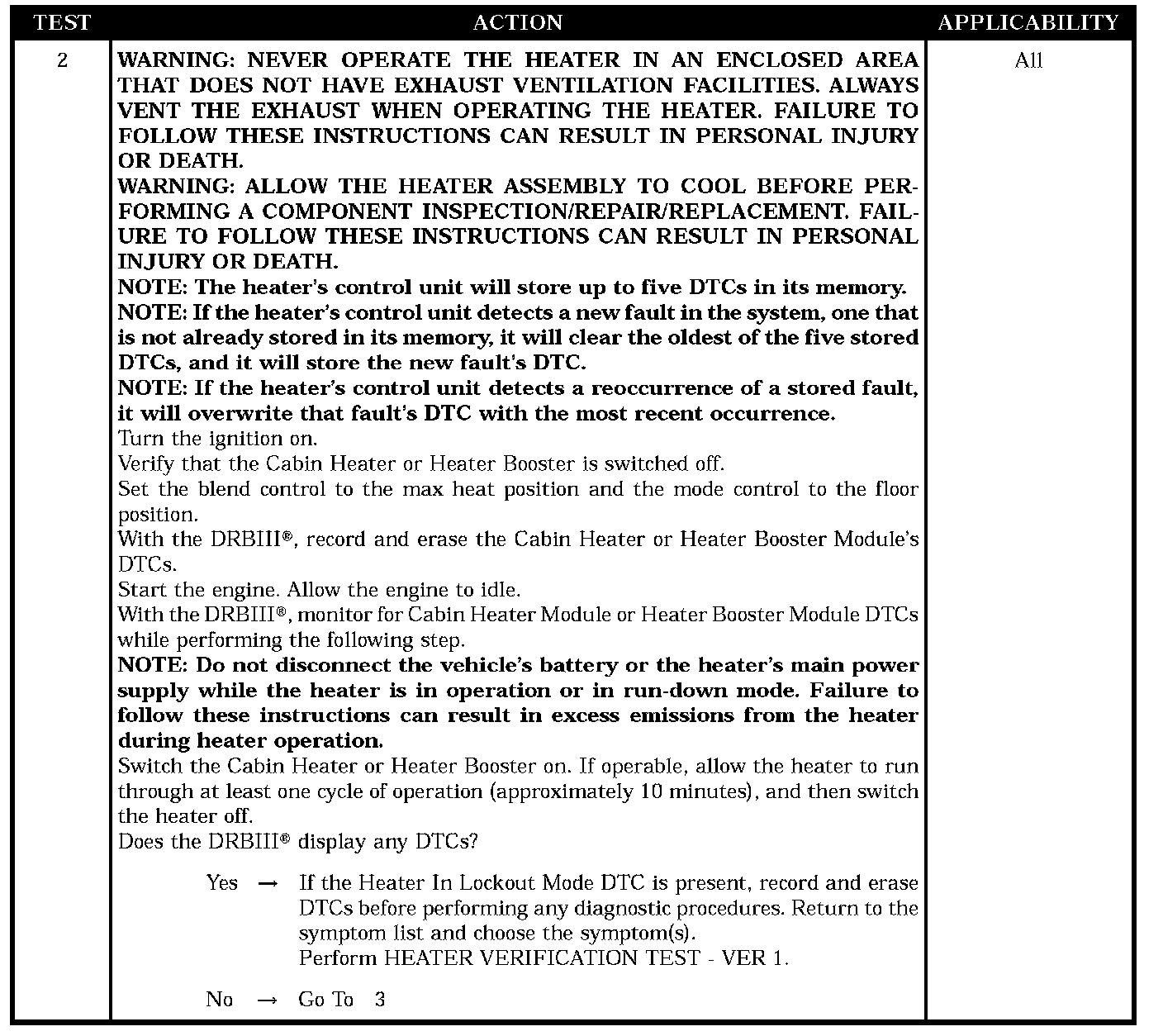

Test 2:

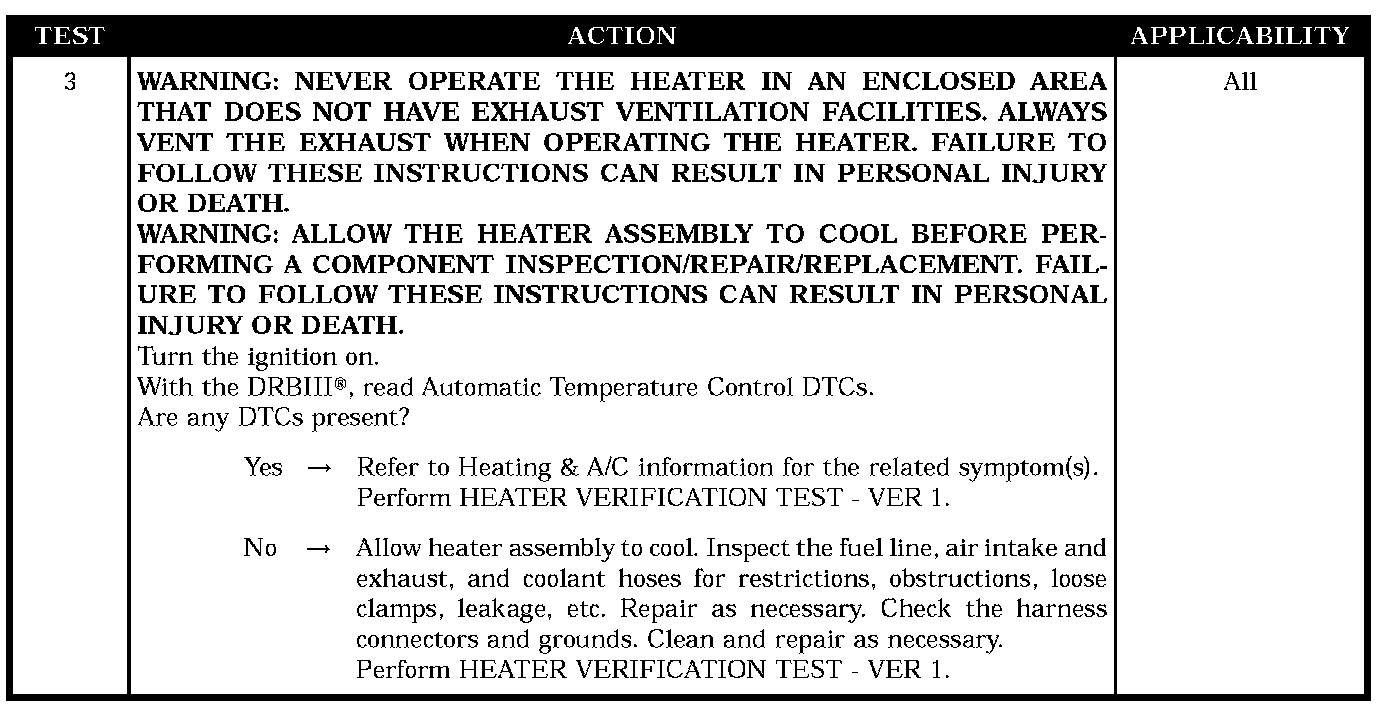

Test 3:

SYMPTOM
HEATER PRE-TEST

POSSIBLE CAUSES
- No response from cabin heater module or heater booster module
- Cabin heater module or heater booster module DTC(S) present
- Automatic temperature control DTC(S) present
- Heater system components
